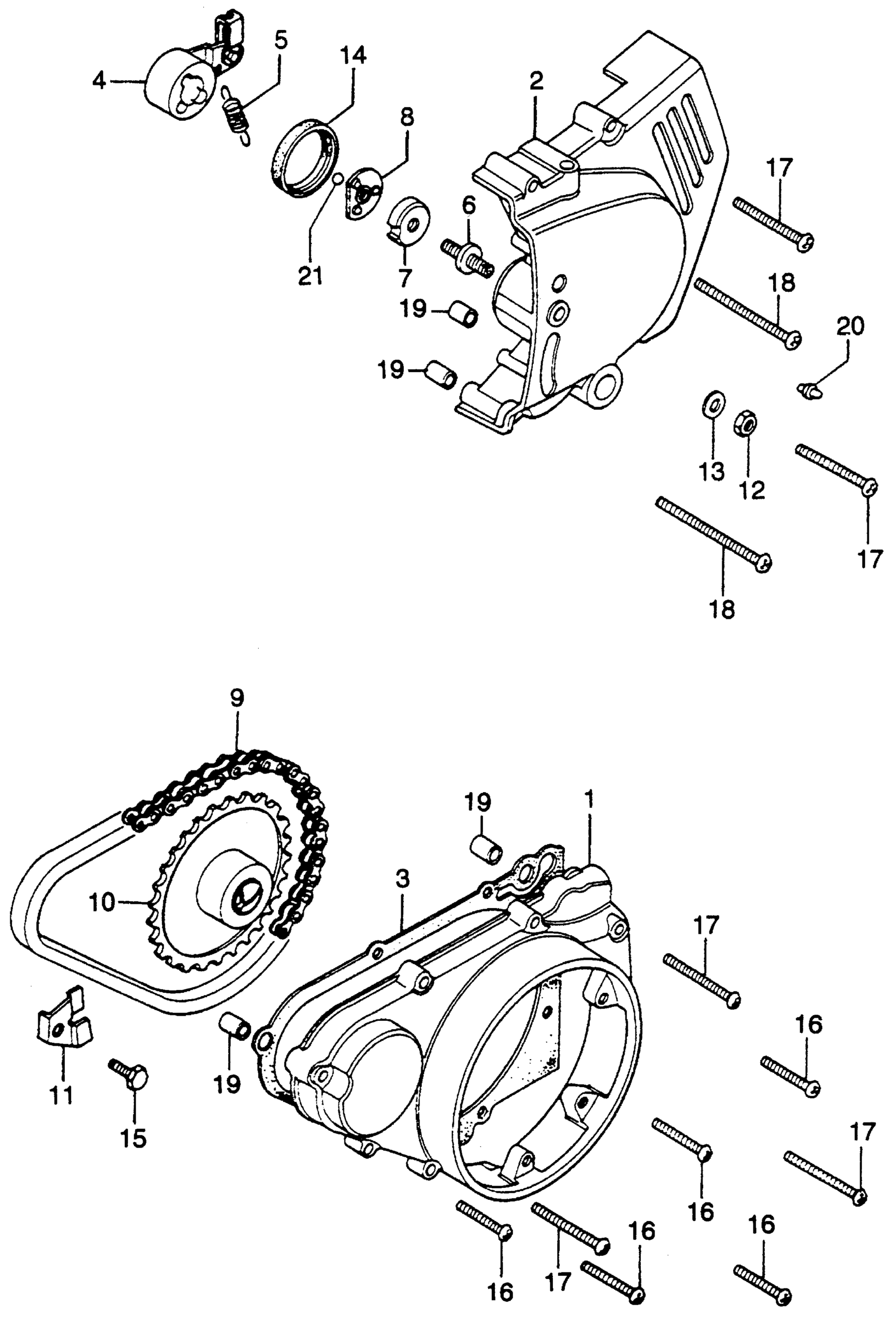

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 LEFT CRANKCASE COVER + STARTING CHAIN Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-369-000

Unavailable

COVER, L. RR. CRANKCASE (NOT AVAILABLE) | Use up to Engine SN 1038616 This part replaces 11351-369-000.

11351-369-010

Unavailable

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-369-010

Unavailable

GASKET, L. This part replaces 11395-369-000.

11395-369-306

Unavailable

LEVER, CLUTCH (NOT AVAILABLE)

22810-286-000

Unavailable

SPRING, CLUTCH LEVER

22815-286-010

Unavailable

SCREW, CLUTCH LIFTER ADJUSTING (NOT AVAILABLE)

22837-286-010

Unavailable

CAM, CLUTCH ADJ.

22841-286-010

Unavailable

RETAINER, CLUTCH BALL (NOT AVAILABLE)

22860-286-000

Unavailable

CHAIN, STARTER (DID219-54L) (DAIDO) This part replaces 28101-286-003.

28101-402-003

Unavailable

CHAIN, STARTER (DID219-54L) (DAIDO)

28101-402-003

Unavailable

SPROCKET, STARTING (NOT AVAILABLE)

28110-286-010

Unavailable

PLATE, STARTING SPROCKET SETTING (NOT AVAILABLE)

28117-286-010

Unavailable

NUT A, VALVE ROCKER ARM LOCK (NOT AVAILABLE)

90011-286-000

Unavailable

WASHER (8MM) This part replaces 90445-286-000.

90451-KAF-000

Unavailable

WASHER (8MM)

90451-KAF-000

Unavailable

DUST SEAL (NOT AVAILABLE)

91210-286-003

Unavailable

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

SCREW, PAN (6X35)

93500-06035-0A

$1.49

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

SCREW, PAN (6X55)

93500-06055-0A

$1.49

PIN A, DOWEL (10X14)

94301-10140

$2.28

FITTING, GREASE (A.45)

96201-30001

$1.49

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
