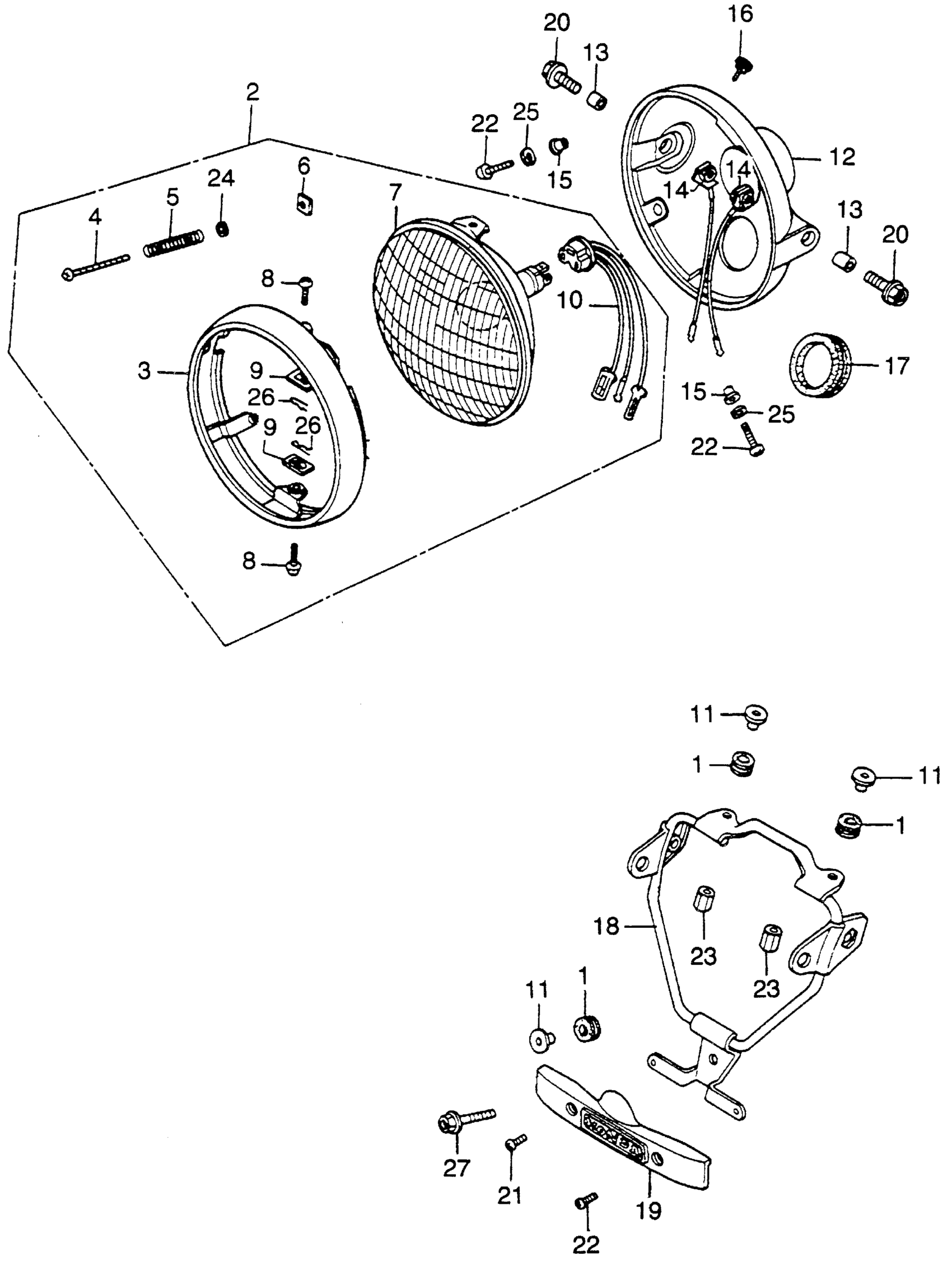

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 HEADLIGHT Diagram

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

HEADLIGHT ASSY. (12V 50/35W) (NOT AVAILABLE)

33100-369-671

Unavailable

RIM, HEADLIGHT (NOT AVAILABLE)

33101-369-670

Unavailable

SCREW, BEAM ADJUSTING (4MM)

33103-333-000

Unavailable

SPRING, HEADLIGHT BEAM ADJUSTING

33107-333-000

$2.20

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

HEADLIGHT UNIT (12V 50/35W)

33120-333-670

$78.71

SCREW, UNIT HOLDER (NOT AVAILABLE)

33125-087-761

Unavailable

NUT, UNIT HOLDER

33128-200-033

Unavailable

SOCKET, HEADLIGHT (NOT AVAILABLE)

33130-333-000

Unavailable

COLLAR, METER PLATE SETTING

37215-369-000

Unavailable

CASE, HEADLIGHT *NH1* (STANLEY) (BLACK) (NOT AVAILABLE)

61301-369-003B

Unavailable

COLLAR, HEADLIGHT CASE (NOT AVAILABLE)

61302-292-000

Unavailable

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61305-333-010

Unavailable

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

61306-333-003

Unavailable

STAY, HEADLIGHT *NH1* (BLACK)

61313-369-000B

Unavailable

EMBLEM, FR. (NOT AVAILABLE)

87127-369-000

Unavailable

BOLT, FLANGE (10X25)

90124-369-000

Unavailable

SCREW, PAN (4X8)

93500-04008-0G

$1.49

SCREW, PAN (5X16)

93500-05016-0B

$1.49

NUT, HEX. (12MM)

94001-12000-0S

$1.66

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

PIN, LOCK (5MM)

94251-05000

$1.49

BOLT, FLANGE (6X25) This part replaces 95700-06025.

95701-06025-00

$1.80

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X25) This part replaces 95900-06025-00.

95701-06025-00

$1.80
