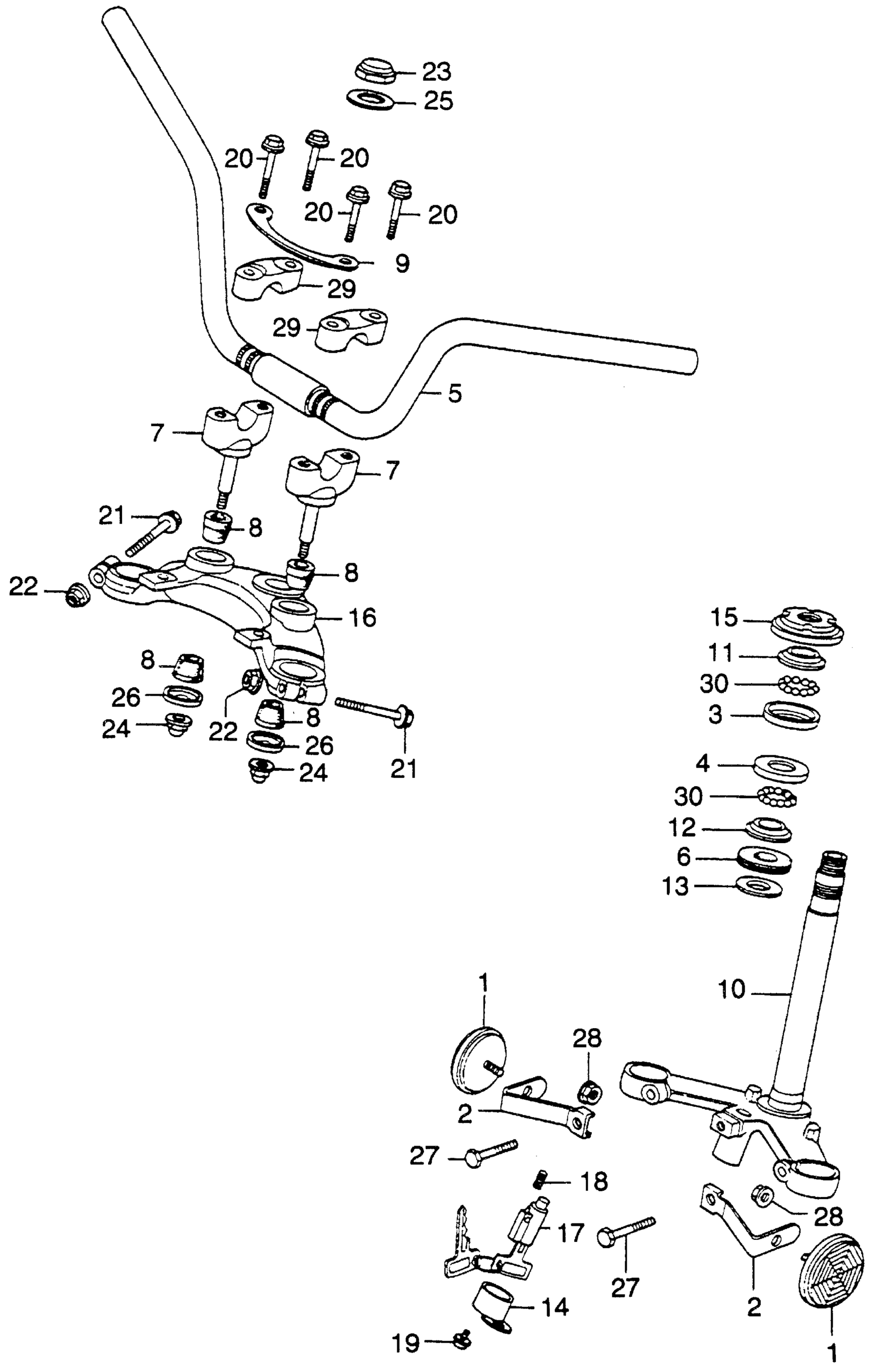

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 HANDLEBAR + TOP BRIDGE + STEM Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$32.19

2

STAY, FR. REFLEX REFLECTOR (NOT AVAILABLE)

33750-369-000

Unavailable

3

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

3

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

3

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.29

4

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$18.94

4

RACE, STEERING BALL (LOWER)

50302-268-010

$18.94

4

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$18.94

5

HANDLEBAR (NOT AVAILABLE)

53100-369-000

Unavailable

6

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$2.81

6

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$2.81

7

HOLDER, HANDLEBAR (LOWER) (NOT AVAILABLE)

53132-310-010

Unavailable

8

RUBBER, HANDLEBAR CUSHION

53133-237-680

$4.45

9

HOLDER, CABLE (NOT AVAILABLE)

53139-286-000

Unavailable

10

STEM, STEERING *NH1* (BLACK) This part replaces 53200-333-000B.

53200-333-010B

Unavailable

10

STEM, STEERING *NH1* (BLACK)

53200-333-010B

Unavailable

11

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$23.45

11

RACE, STEERING CONE (UPPER)

53211-268-010

$23.45

11

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$23.45

12

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$18.81

12

RACE, STEERING CONE (LOWER)

53212-250-010

$18.81

12

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$18.81

13

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.13

14

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-317-000

Unavailable

15

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

16

BRIDGE, FORK TOP

53230-369-305

Unavailable

16

BRIDGE, FORK TOP This part replaces 53231-369-000.

53230-369-305

Unavailable

17

LOCK, HANDLEBAR

35010-230-010

Unavailable

17

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

17

LOCK, HANDLEBAR This part replaces 53600-230-004.

35010-230-010

Unavailable

18

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

19

SCREW-WASHER (3X8) (NOT AVAILABLE)

90109-342-000

Unavailable

20

BOLT, FLANGE (8X36)

90111-362-000

$4.47

22

NUT, FLANGE (8MM) This part replaces 90303-369-000.

94050-08020

$1.83

22

NUT, FLANGE (8MM)

94050-08020

$1.83

24

NUT, CAP (8MM)

90443-107-000

$2.62

25

WASHER, STEERING STEM

90503-283-000

$4.07

26

WASHER, RUBBER

90535-292-000

$1.94

27

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.17

27

BOLT, HEX. (8X32)

92101-08032-0B

$2.17

28

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

28

NUT, HEX. (6MM)

94001-06200-0S

$1.19

29

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$10.90

30

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
