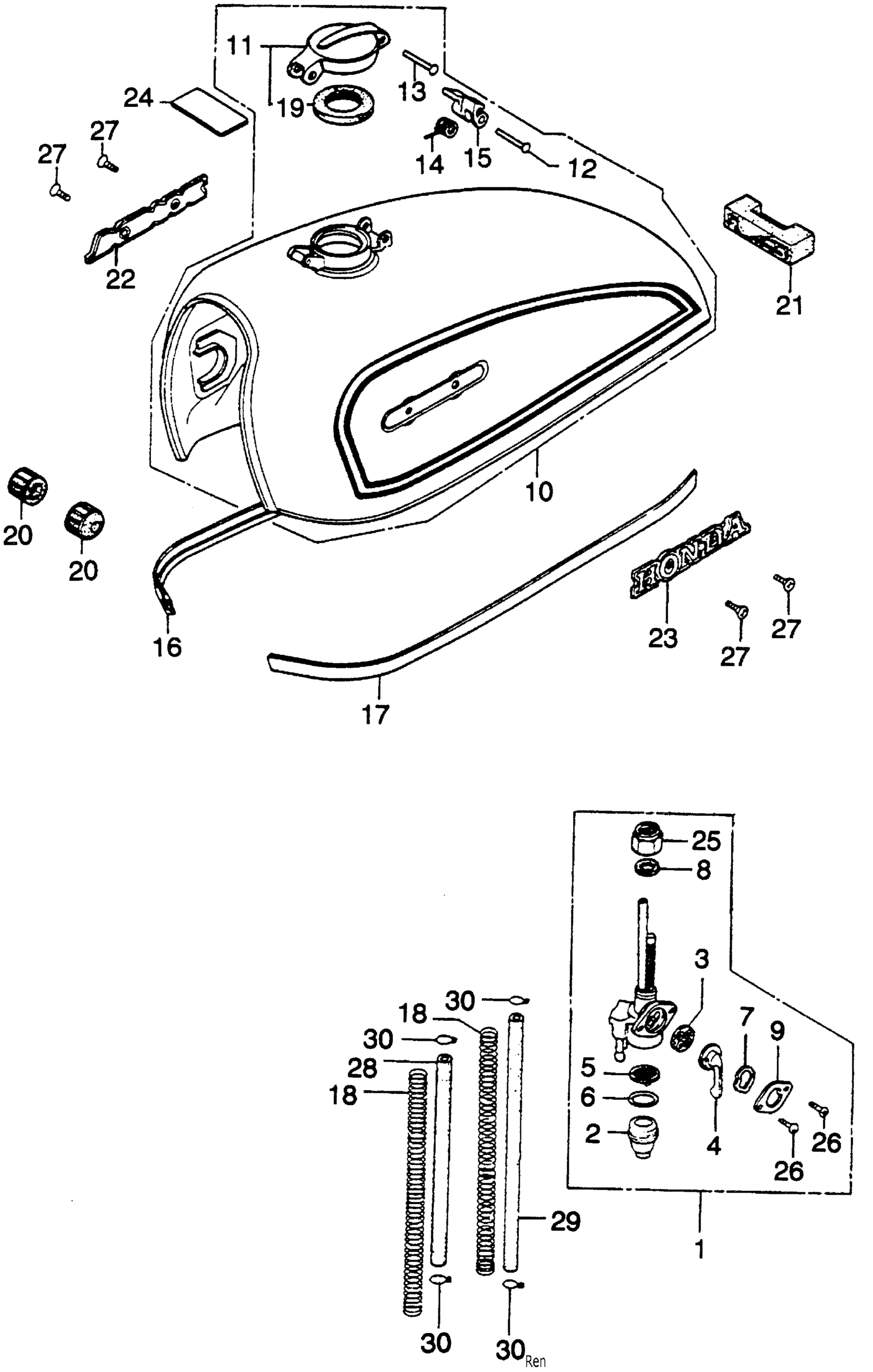

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-292-000

$72.05

2

CUP, FUEL STRAINER

16952-028-000

Unavailable

2

CUP, FUEL STRAINER This part replaces 16952-283-000.

16952-028-000

Unavailable

3

GASKET, PETCOCK

16953-283-000

$12.77

4

LEVER, FUEL (NOT AVAILABLE)

16953-298-000

Unavailable

5

SCREEN, FUEL STRAINER This part replaces 16954-283-000.

16957-028-000

$16.22

5

SCREEN, FUEL STRAINER This part replaces 16957-011-000.

16957-028-000

$16.22

5

SCREEN, FUEL STRAINER

16957-028-000

$16.22

5

SCREEN, FUEL STRAINER This part replaces 16957-028-004.

16957-028-000

$16.22

6

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

7

SPRING, PETCOCK LEVER

16955-816-004

Unavailable

8

GASKET, JOINT NUT

16956-283-000

$4.67

9

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16961-298-000

Unavailable

10

TANK ASSY., FUEL *R2CC* (CANDY ORANGE CUSTOM) (NOT AVAILABLE)

17050-369-000NC

Unavailable

10

TANK ASSY., FUEL *G42MS* (HEX GREEN METALLIC SPECIAL) (NOT AVAILABLE)

17050-369-000TQ

Unavailable

10

TANK ASSY., FUEL *R2CC* (CANDY ORANGE CUSTOM) (NOT AVAILABLE) This part replaces 17500-369-000NC.

17050-369-000NC

Unavailable

10

TANK ASSY., FUEL *G42MS* (HEX GREEN METALLIC SPECIAL) (NOT AVAILABLE) This part replaces 17500-369-000TQ.

17050-369-000TQ

Unavailable

11

CAP, FUEL TANK

17510-323-310

Unavailable

12

PIN, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17513-300-300

Unavailable

13

PIN B, FUEL FILLER CAP (NOT AVAILABLE)

17514-323-300

Unavailable

14

SPRING, FUEL FILLER CAP CHECK (NA USE ALT:17550-377-315)

17515-300-300

Unavailable

15

CHECK, FUEL FILLER CAP (NA USE ALT:17550-377-315)

17517-300-340

Unavailable

16

MOLDING, R. FUEL TANK (NOT AVAILABLE)

17521-369-000

Unavailable

17

MOLDING, L. FUEL TANK (NOT AVAILABLE)

17522-369-000

Unavailable

18

SPRING, FUEL TUBE COVER (NOT AVAILABLE)

17531-346-000

Unavailable

19

GASKET, FUEL FILLER CAP

17534-323-300

$9.17

20

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

20

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

21

RUBBER, RR. FUEL TANK

17613-286-000

$15.86

22

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-369-000

Unavailable

23

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-369-000

Unavailable

24

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

25

NUT, FUEL VALVE JOINT (NOT AVAILABLE)

90303-268-000

Unavailable

26

SCREW, PAN (3X6)

93500-03006-0A

$1.49

27

SCREW, OVAL (3X6)

93700-03006-0B

$1.49

28

BULK HOSE, FUEL (5.5X3000) (5.5X240)

95001-55003-60M

$47.32

29

BULK HOSE, FUEL (5.5X3000) (5.5X320)

95001-55003-60M

$47.32

30

CLIP, TUBE (B10)

95002-02100

$1.90
