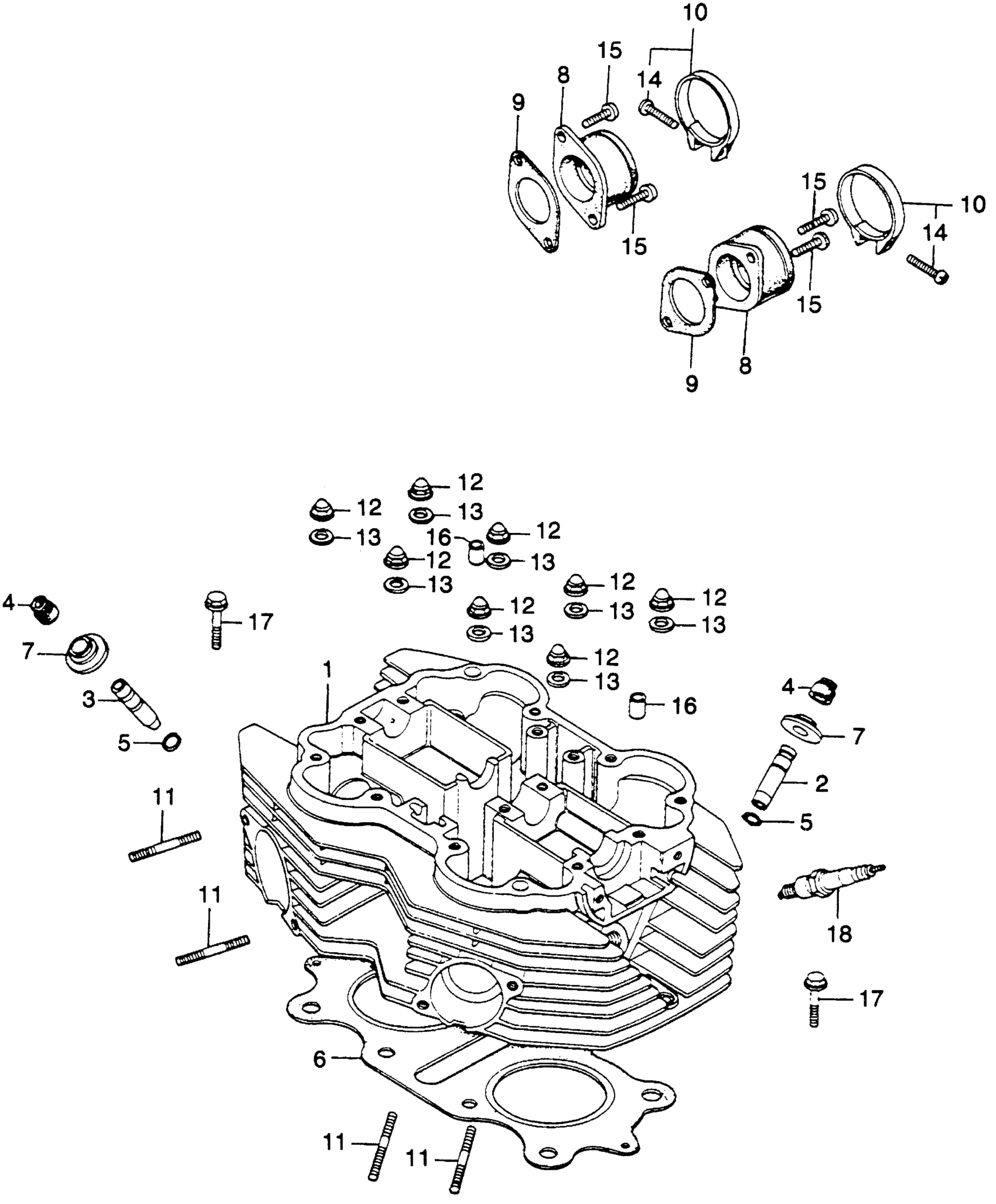

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-369-000

Unavailable

2

GUIDE, VALVE This part replaces 12205-362-305.

12205-362-405

Unavailable

2

GUIDE, VALVE

12205-362-405

Unavailable

3

GUIDE, VALVE

12205-362-405

Unavailable

3

GUIDE, VALVE This part replaces 12206-362-305.

12205-362-405

Unavailable

4

SEAL, VALVE STEM

12210-362-005

$13.67

5

CLIP, VALVE GUIDE

12211-250-310

$4.39

6

GASKET, CYL HD This part replaces 12251-369-000.

12251-369-306

Unavailable

7

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-369-000

Unavailable

8

INSULATOR, CARBURETOR

16211-369-000

$51.89

9

GASKET, INSULATOR This part replaces 16229-369-000.

16229-369-306

$6.86

9

GASKET, INSULATOR

16229-369-306

$6.86

10

BAND, INSULATOR

16223-KS5-000

$14.20

10

BAND, INSULATOR This part replaces 17255-329-000.

16223-KS5-000

$14.20

11

BOLT, CYLINDER STUD (NOT AVAILABLE)

90041-369-300

Unavailable

12

NUT, FLANGE CAP (10MM)

90202-329-000

$3.67

13

WASHER, SEAL (10MM)

90441-329-000

$3.60

14

SCREW, PAN (5X20)

93500-05020-0G

$1.49

15

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

15

SCREW, PAN (6X16)

93500-06016-0A

$1.49

16

PIN A, DOWEL (10X14)

94301-10140

$2.28

17

BOLT, FLANGE (6X25) This part replaces 95700-06025.

95701-06025-00

$1.80

17

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

17

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

17

BOLT, FLANGE (6X25) This part replaces 95900-06025-00.

95701-06025-00

$1.80

18

SPARK PLUG (B8ES) (NGK)

98079-58840

$2.56

18

SPARK PLUG (W24ES) (DENSO) (NOT AVAILABLE)

98079-59851

Unavailable
