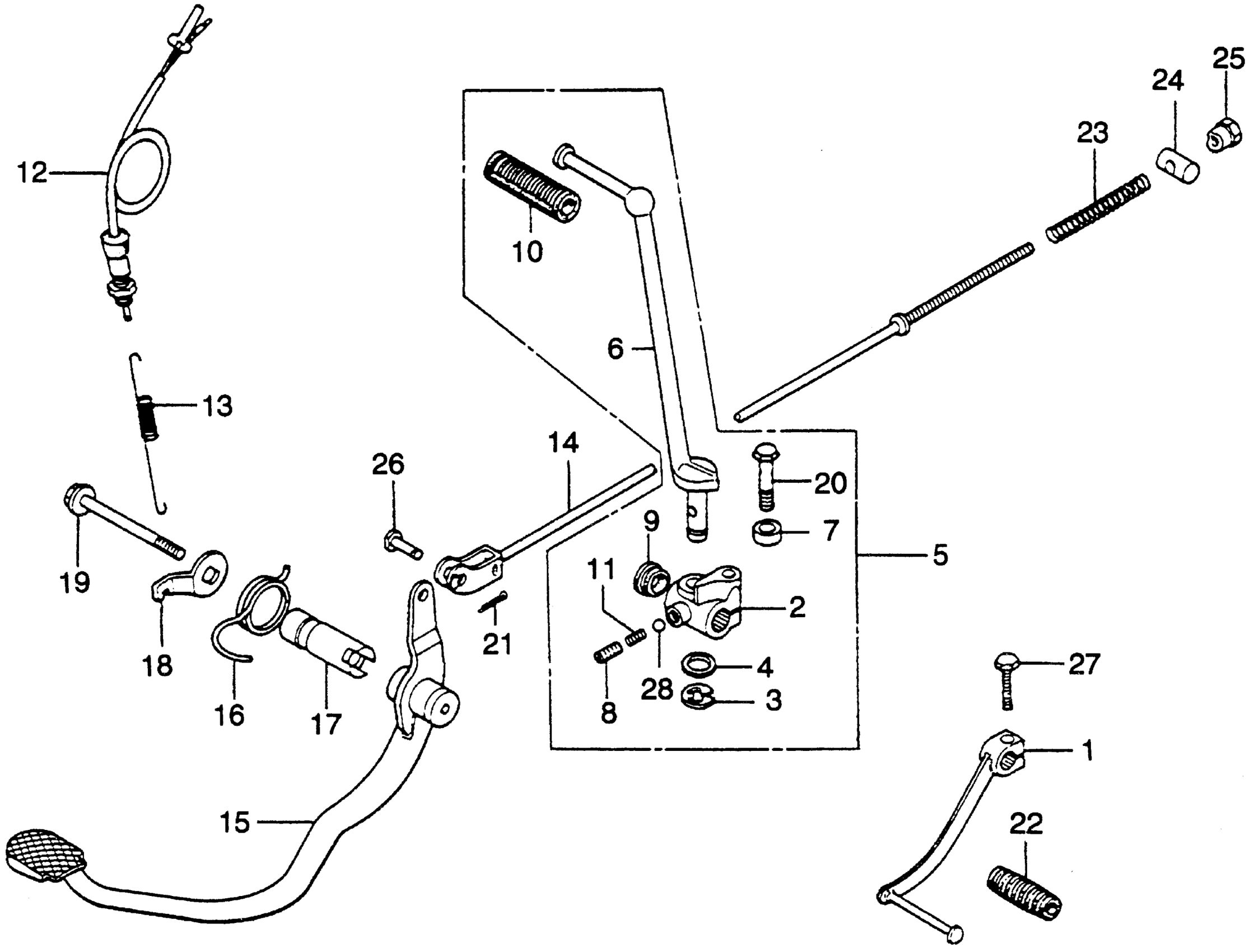

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 BRAKE PEDALS + KICK STARTER ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT This part replaces 24700-369-000.

24701-379-690

Unavailable

1

PEDAL, GEARSHIFT This part replaces 24701-369-000.

24701-379-690

Unavailable

2

JOINT, KICK ARM

28241-369-000

Unavailable

3

CLIP, KICK STARTER ARM

28293-333-000

$2.67

4

WASHER, KICK STARTER ARM (NOT AVAILABLE)

28294-333-000

Unavailable

5

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-369-000

Unavailable

6

ARM, KICK STARTER (NOT AVAILABLE)

28301-369-000

Unavailable

7

COLLAR, KICK STOPPER (NOT AVAILABLE)

28302-369-000

Unavailable

8

BOLT, KICK ARM (NOT AVAILABLE)

28303-310-010

Unavailable

9

CAP, KICK ARM (NOT AVAILABLE)

28305-310-000

Unavailable

10

RUBBER, KICK STARTER

28311-329-000

$5.54

11

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-310-000

Unavailable

12

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

12

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

13

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-286-010

Unavailable

14

ROD, RR. BRAKE (NOT AVAILABLE)

43451-369-000

Unavailable

15

PEDAL, BRAKE

46500-369-000

Unavailable

16

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-369-000

Unavailable

17

SHAFT, RR. BRAKE PIVOT (NOT AVAILABLE)

46517-369-000

Unavailable

18

HOOK, STOP SWITCH SPRING (NOT AVAILABLE)

46518-369-000

Unavailable

19

BOLT, FLANGE (8X16) (NOT AVAILABLE)

90113-369-000

Unavailable

20

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

20

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

21

PIN, COTTER (1.6X12)

94201-16120

$1.49

22

RUBBER, SHIFT PEDAL

95011-40000

$1.49

23

SPRING A, BRAKE ROD

95014-73100

$1.49

23

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

24

JOINT, BRAKE ARM

95015-32001

$1.49

25

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

26

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

27

BOLT, FLANGE (6X20) This part replaces 95700-06020.

95701-06020-00

$1.55

27

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

27

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

27

BOLT, FLANGE (6X20) This part replaces 95900-06020-00.

95701-06020-00

$1.55

28

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
