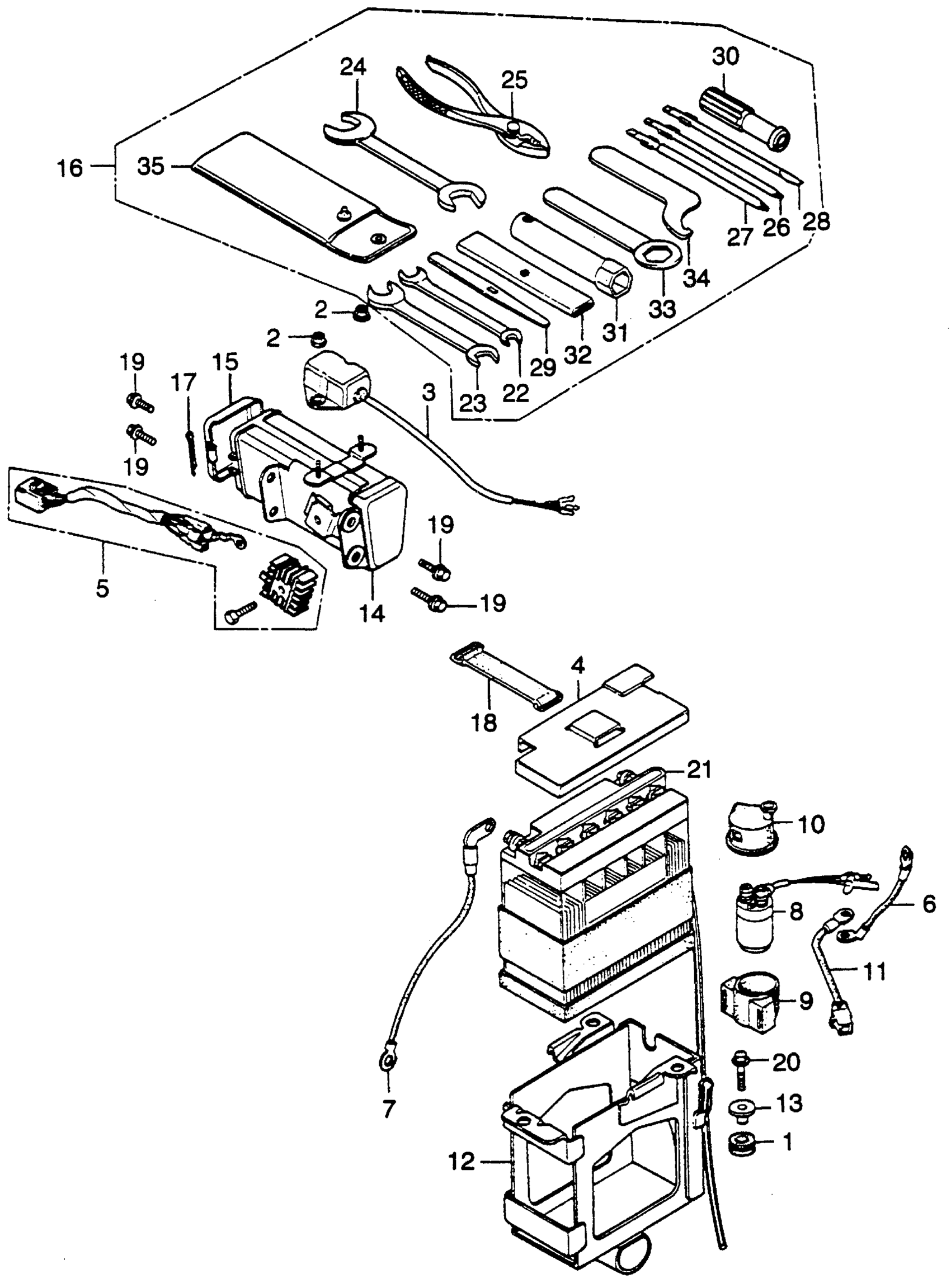

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 BATTERY + REGULATOR + TOOL Diagram

#

Description
Price

1

RUBBER, MUFFLER MOUNT (NOT AVAILABLE)

18361-361-000

Unavailable

2

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

2

NUT, FLANGE (6MM)

94050-06000

$1.49

3

REGULATOR (NOT AVAILABLE)

31400-292-670

Unavailable

4

COVER, BATTERY (NOT AVAILABLE) This part replaces 31532-292-000.

31532-292-010

Unavailable

4

COVER, BATTERY (NOT AVAILABLE)

31532-292-010

Unavailable

4

COVER, BATTERY (NOT AVAILABLE) This part replaces 31532-369-000.

31532-292-010

Unavailable

5

RECTIFIER SET, SILICON (NOT AVAILABLE)

31700-358-305

Unavailable

6

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-286-010

Unavailable

7

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-286-000

Unavailable

8

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-286-027.

35850-375-000

Unavailable

8

SWITCH ASSY., STARTER MAGNETIC

35850-375-000

Unavailable

9

RUBBER, MAGNETIC SHOCK This part replaces 35856-KR3-670.

35856-413-010

$10.15

9

RUBBER, MAGNETIC SHOCK This part replaces 35856-286-010.

35856-413-010

$10.15

9

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

9

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

10

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-369-000

Unavailable

11

SUB-WIRE, MAGNETIC (NOT AVAILABLE)

35858-369-000

Unavailable

12

BOX, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

50325-369-000B

Unavailable

13

COLLAR C, MOUNTING

80109-329-000

Unavailable

14

BOX, TOOL *NH1* (BLACK)

83500-369-000B

Unavailable

15

CAP, TOOL BOX *NH1* (BLACK)

83541-286-000B

Unavailable

16

TOOL SET (NOT AVAILABLE)

89010-369-000

Unavailable

17

PIN, COTTER (2.0X35)

94201-20350

$1.49

18

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$5.28

18

BAND B2, BATTERY

95012-13001

$5.28

19

BOLT, FLANGE (6X14) This part replaces 95700-06014.

95701-06014-00

$1.49

19

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

19

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

20

BOLT, FLANGE (6X25) This part replaces 95700-06025.

95701-06025-00

$1.80

20

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

20

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

20

BOLT, FLANGE (6X25) This part replaces 95900-06025-00.

95701-06025-00

$1.80

21

BATTERY (12V12) This part replaces 31500-283-000.

31500-460-672AH

Unavailable

21

BATTERY (12V12) This part replaces 31500-292-670.

31500-460-672AH

Unavailable

21

BATTERY (12V12) This part replaces 31500-310-671.

31500-460-672AH

Unavailable

21

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

21

BATTERY (12V12) This part replaces 98202-22250.

31500-460-672AH

Unavailable

21

BATTERY (12V12) This part replaces 98203-22250.

31500-460-672AH

Unavailable

22

WRENCH (8X12) (OPEN END)

99001-08120

$2.75

23

WRENCH (10X14) (OPEN END)

99001-10140

$2.92

24

WRENCH (17X19) (OPEN END)

99001-17190

$4.14

25

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

26

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

27

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

28

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

29

LEVER, TIRE

99003-40000

$1.49

30

GRIP

99003-50000

$3.27

31

WRENCH, BOX (P21)

99004-21001

$3.44

32

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

33

WRENCH, EYE (22MM)

99006-22000

$4.16

34

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.40

35

BAG, TOOL

89101-ME5-670

Unavailable

35

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
