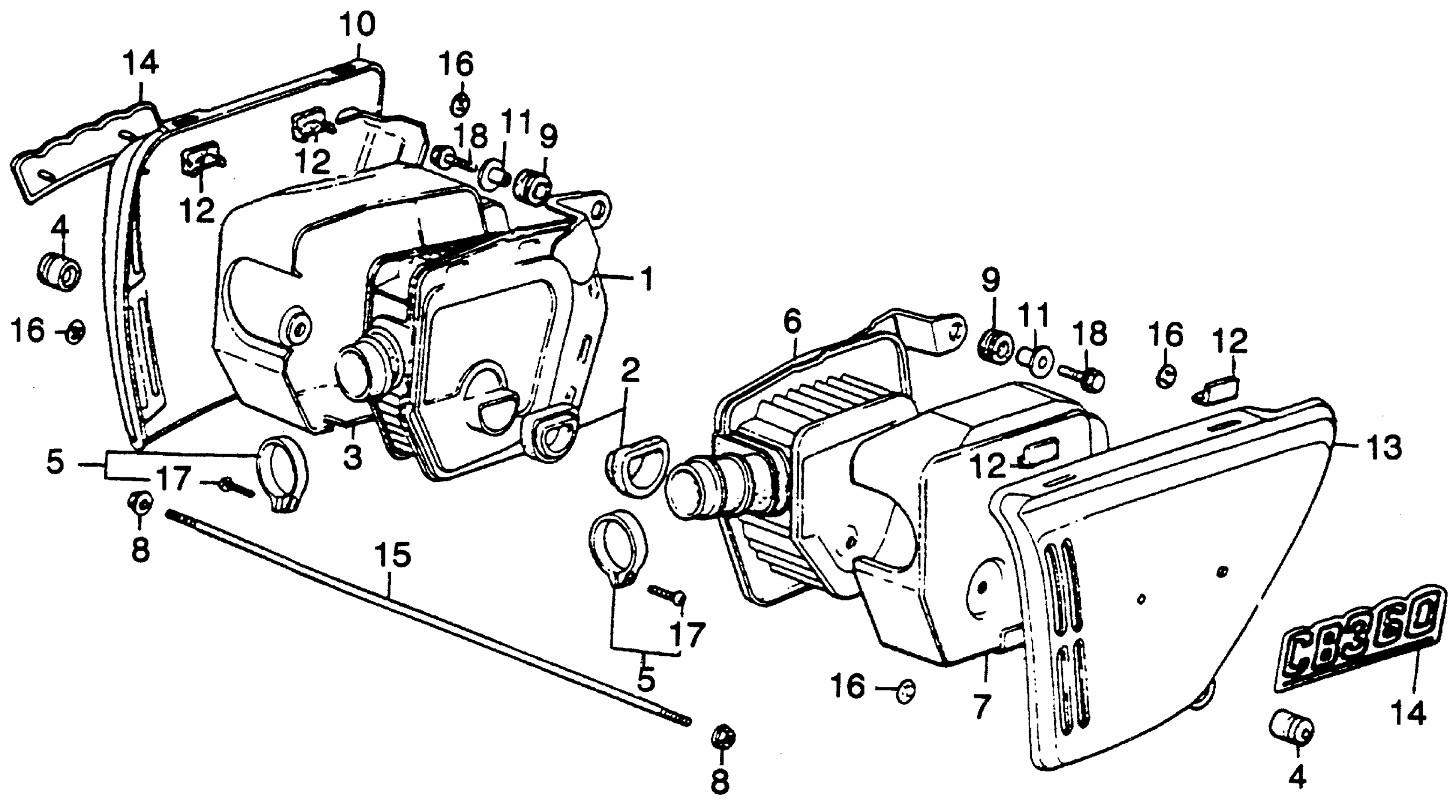

Honda CB360A MOTORCYCLE, JPN, VIN# CB360-1000001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, R. AIR CLEANER

17210-369-000

$52.03

2

TUBE, AIR CLEANER JOINT (NOT AVAILABLE)

17213-369-000

Unavailable

3

CASE, R. AIR CLEANER (NOT AVAILABLE)

17214-369-000

Unavailable

4

GROMMET, SIDE COVER

17245-369-000

$7.43

5

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-286-000.

95018-56200

$9.55

5

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

5

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

6

ELEMENT, L. AIR CLEANER

17310-369-000

$52.03

7

CASE, L. AIR CLEANER (NOT AVAILABLE)

17313-369-000

Unavailable

8

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

8

NUT, FLANGE (6MM)

94050-06000

$1.49

9

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

10

COVER, R. SIDE *R2CC* (CANDY ORANGE CUSTOM) (NOT AVAILABLE)

83600-369-000NC

Unavailable

11

COLLAR, COVER SETTING

83601-357-000

$5.56

12

GROMMET, SIDE COVER

83621-333-000

$5.80

13

COVER, L. SIDE *R2CC* (CANDY ORANGE CUSTOM) (NOT AVAILABLE)

83700-369-000NC

Unavailable

14

EMBLEM, SIDE COVER (NOT AVAILABLE)

87126-369-000

Unavailable

15

BOLT, SPECIAL (6X241) (NOT AVAILABLE)

90141-369-000

Unavailable

16

NUT, SPEED (3MM)

90313-567-000

$3.97

17

SCREW, PAN (5X16)

93500-05016-0A

$1.49

18

BOLT, FLANGE (6X20) This part replaces 95700-06020.

95701-06020-00

$1.55

18

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

18

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

18

BOLT, FLANGE (6X20) This part replaces 95900-06020-00.

95701-06020-00

$1.55
