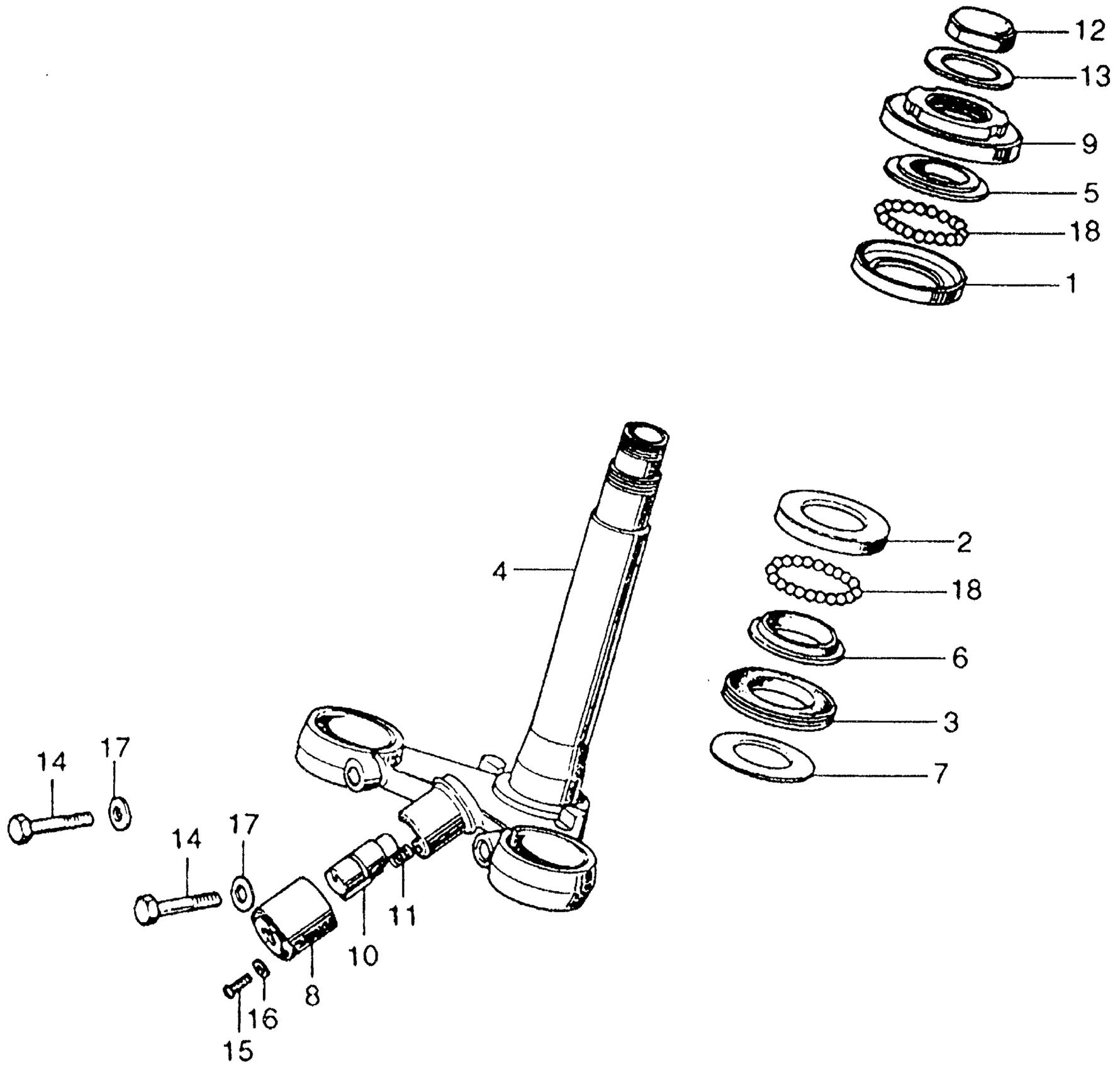

Honda CB350K2A MOTORCYCLE, JPN, VIN# CB350-2000001 STEERING STEM K2-K3 Diagram

#

Description
Price

1

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.71

1

RACE, STEERING BALL (UPPER)

50301-268-010

$19.71

1

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.71

2

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$20.68

2

RACE, STEERING BALL (LOWER)

50302-268-010

$20.68

2

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$20.68

3

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$2.89

3

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$2.89

4

STEM SET, STEERING *NH1* (BLACK) | Use up to Frame SN 2045127

53020-286-000B

Unavailable

4

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 2045128

53200-286-010B

Unavailable

5

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$23.97

5

RACE, STEERING CONE (UPPER)

53211-268-010

$23.97

5

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$23.97

6

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$19.23

6

RACE, STEERING CONE (LOWER)

53212-250-010

$19.23

6

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$19.23

7

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.16

8

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE) | Use up to Frame SN 2045127

53215-230-000

Unavailable

8

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE) | Use from Frame SN 2045128

53215-317-000

Unavailable

9

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

10

LOCK, HANDLEBAR

35010-230-010

Unavailable

10

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

11

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

12

NUT, STEERING STEM This part replaces 90304-323-670.

90304-415-000

$18.21

12

NUT, STEERING STEM

90304-415-000

$18.21

12

NUT, STEERING STEM This part replaces 95020-11300.

90304-415-000

$18.21

13

WASHER, STEERING STEM

90503-283-000

$4.17

14

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.80

14

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.80

14

BOLT, HEX. (8X32)

92101-08032-0B

$2.80

15

SCREW, PAN (3X8) | Use up to Frame SN 2045127

93500-03008

$5.10

15

SCREW, PAN (3X8) | Use from Frame SN 2045128

93500-03008-0A

$0.76

16

WASHER, PLAIN (3MM)

94101-03000

$0.60

17

WASHER, PLAIN (8MM)

94101-08000

$0.76

18

BALL, STEEL (#8) (1/4)

96211-08000

$1.15
