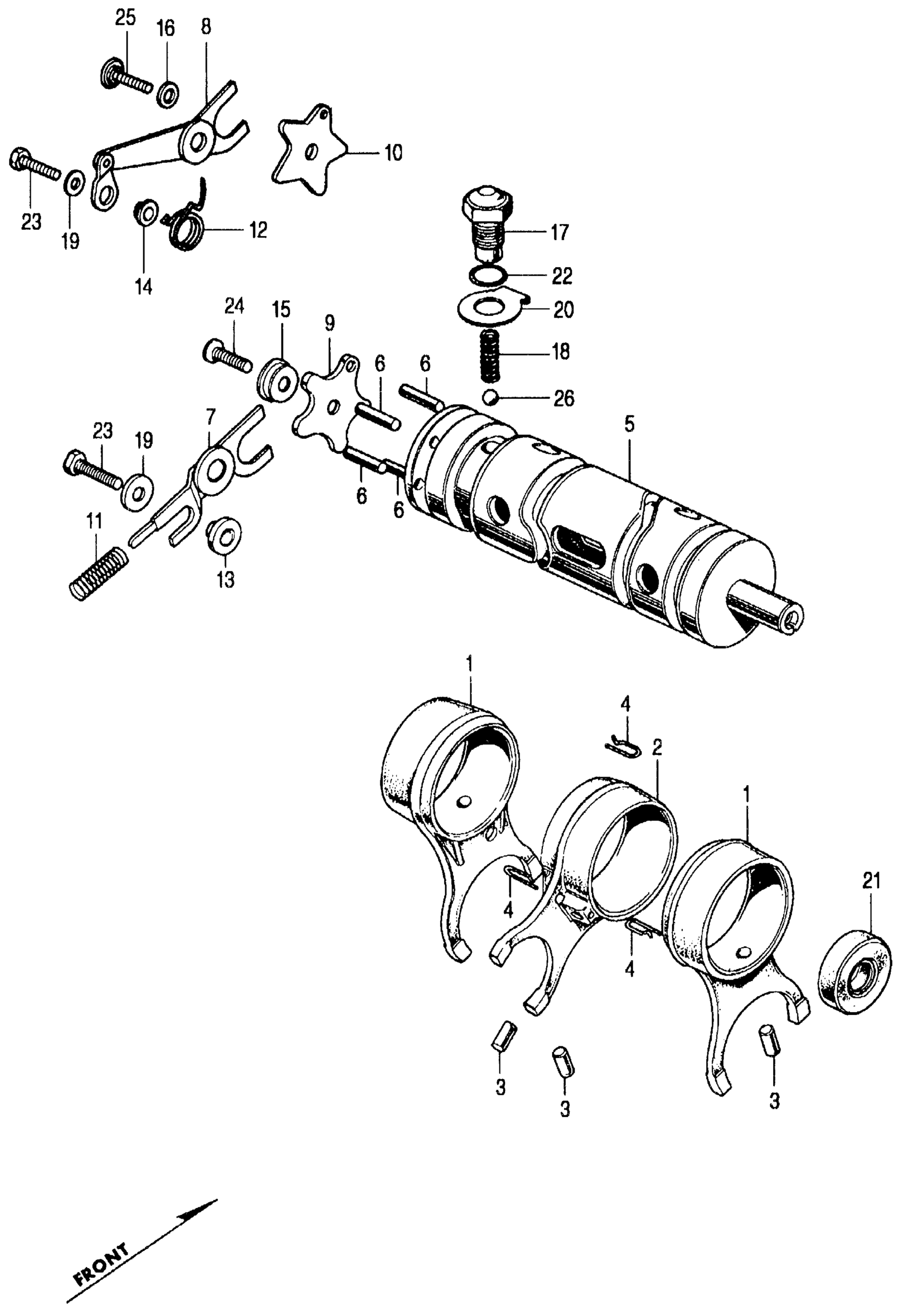

Honda CB350K2A MOTORCYCLE, JPN, VIN# CB350-2000001 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK A, GEARSHIFT

24211-286-020

$141.21

2

FORK B, GEARSHIFT (NOT AVAILABLE)

24212-286-030

Unavailable

3

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

4

CLIP, GEARSHIFT FORK GUIDE

24263-286-000

Unavailable

5

DRUM, GEARSHIFT

24301-286-050

$148.57

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

7

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-286-030

Unavailable

9

PLATE, DRUM STOPPER CAM (NOT AVAILABLE)

24434-286-020

Unavailable

11

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-286-020

Unavailable

13

COLLAR, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24438-283-000

Unavailable

15

COLLAR, SHIFT DRUM STOPPER (NOT AVAILABLE)

24438-286-000

Unavailable

17

SCREW, GEARSHIFT DRUM GUIDE (NOT AVAILABLE)

24445-286-020

Unavailable

18

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24447-286-000

Unavailable

19

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

20

WASHER, LOCK (12MM) (NOT AVAILABLE)

90434-286-000

Unavailable

21

OIL SEAL (12X25X4.5) This part replaces 91201-283-000.

91202-426-003

$5.57

21

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

21

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

21

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

22

O-RING (11.5X2)

91304-216-000

$2.11

23

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

23

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

24

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

24

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

26

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
