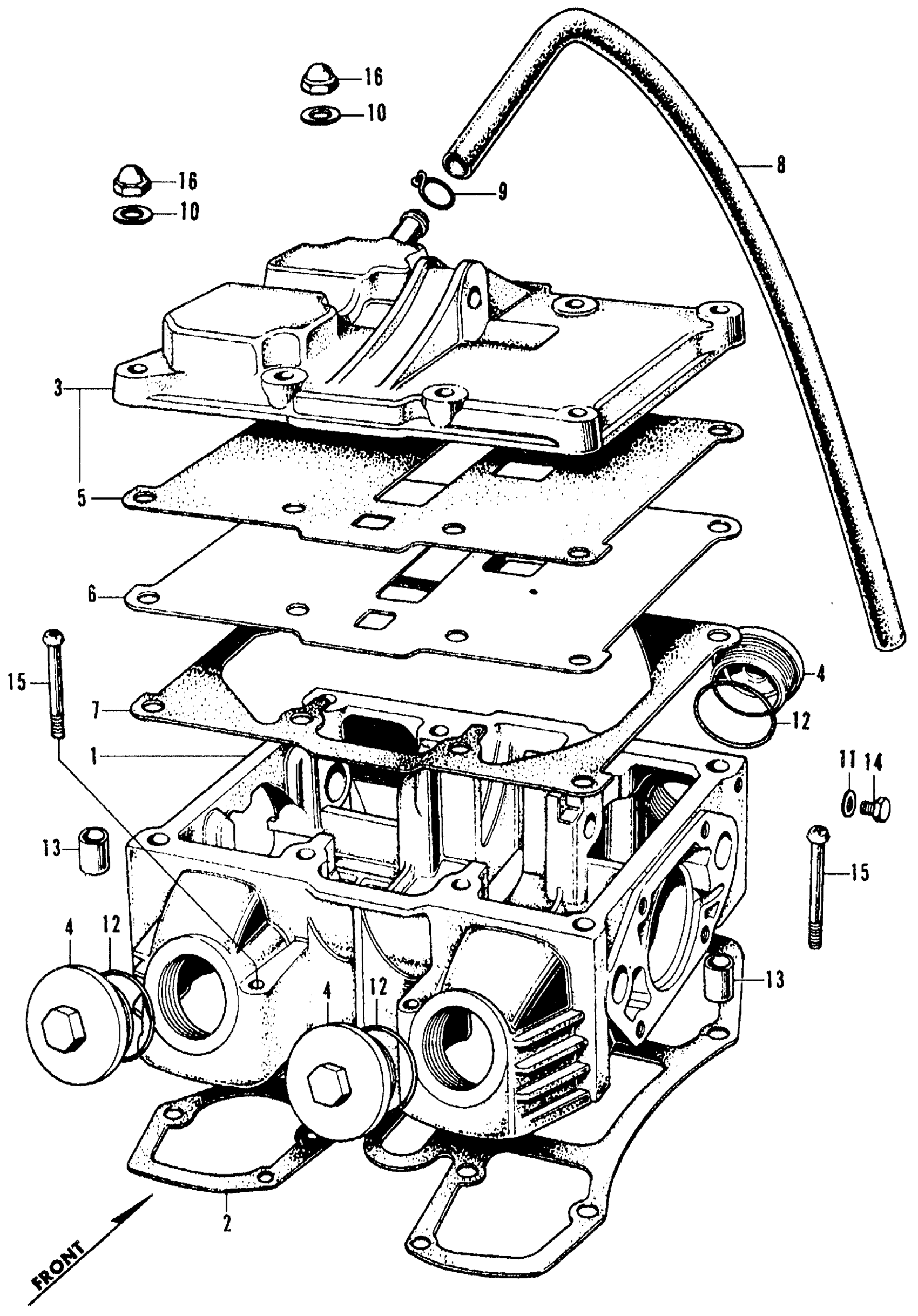

Honda CB350K2A MOTORCYCLE, JPN, VIN# CB350-2000001 CYLINDER HEAD COVER + CAM CASE Diagram

#

Description
Price

1

CAM CASE

12211-312-000

Unavailable

2

GASKET, CAM CASE This part replaces 12261-286-030.

12261-286-306

Unavailable

3

COVER, CYLINDER HEAD (NOT AVAILABLE)

12300-286-000

Unavailable

4

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

4

CAP, VALVE ADJ.

12361-300-000

Unavailable

4

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

5

GASKET A, CYL HD CVR This part replaces 12391-286-010.

12391-286-306

Unavailable

6

GASKET B, CYLINDER HEAD COVER

12394-312-000

Unavailable

7

GASKET C, CYL HD CVR This part replaces 12395-286-000.

12395-286-306

Unavailable

8

*95005-11001-30M This part replaces 15761-292-030.

95005-11570-30

Unavailable

9

CLIP, BREATHER TUBE

15772-292-010

$2.92

10

WASHER, SEAL (8MM)

90441-286-000

$1.90

11

WASHER A (6MM)

90478-700-000

$1.49

12

O-RING (30.8MM)

91302-001-020

$3.75

13

PIN, CYLINDER KNOCK

91356-286-000

Unavailable

14

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

14

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

14

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

15

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

15

SCREW, PAN (6X50)

93500-06050-0A

$1.49

16

NUT, CAP (8MM)

94021-08000-0S

$1.55
