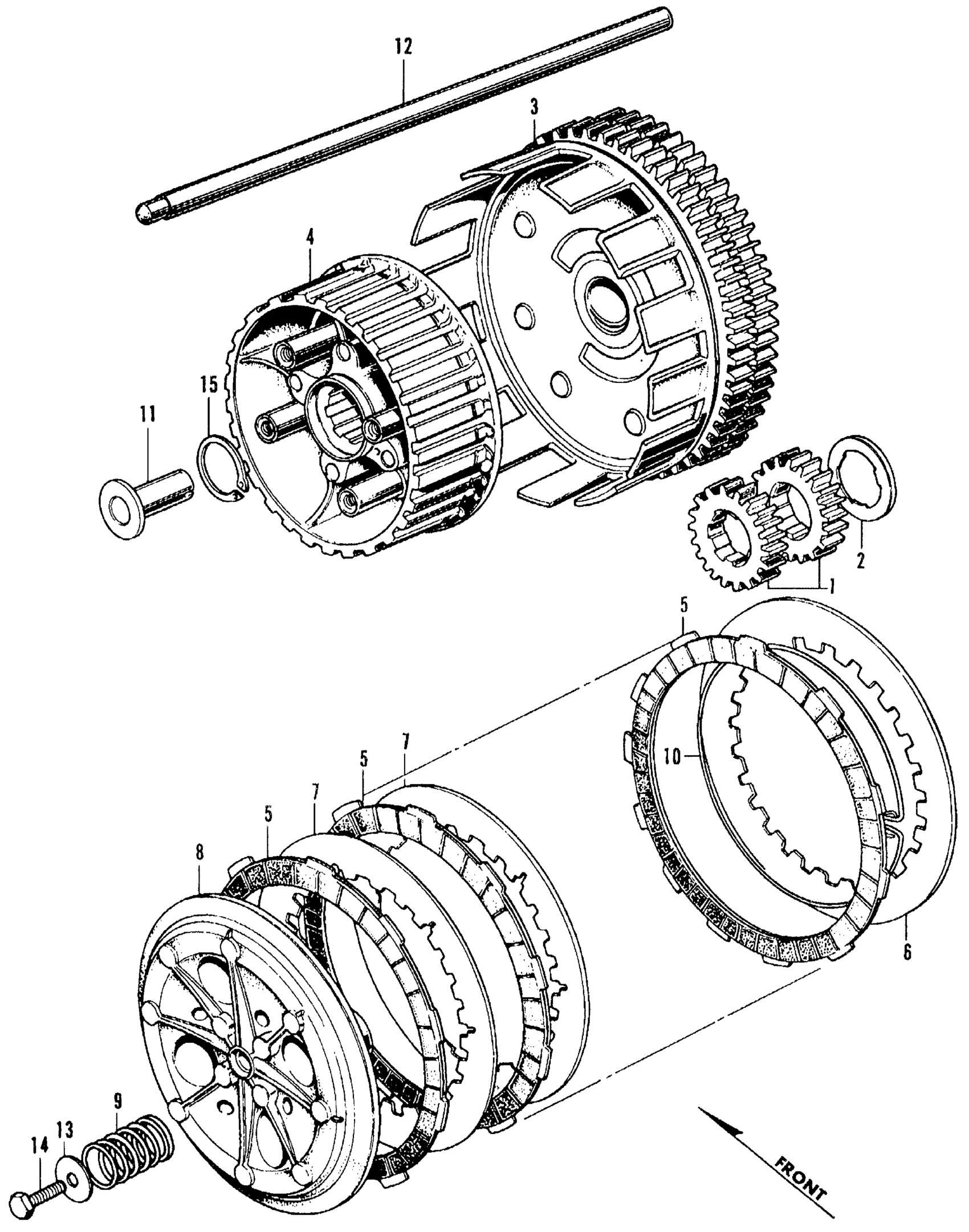

Honda CB350K2A MOTORCYCLE, JPN, VIN# CB350-2000001 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (21T) (NOT AVAILABLE)

13611-286-020

Unavailable

2

SPACER (NOT AVAILABLE)

13621-286-010

Unavailable

3

CLUTCH (OUTER) (78T)

22100-286-060

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE) This part replaces 22120-312-010.

22120-369-305

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE)

22120-369-305

Unavailable

5

DISK, CLUTCH FRICTION

22201-286-010

$19.81

6

PLATE A, CLUTCH (NOT AVAILABLE)

22311-286-000

Unavailable

7

PLATE B, CLUTCH

22321-KA4-700

$21.59

7

PLATE B, CLUTCH This part replaces 22321-286-000.

22321-KA4-700

$21.59

7

PLATE B, CLUTCH This part replaces 22321-323-000.

22321-KA4-700

$21.59

8

PLATE, CLUTCH PRESSURE This part replaces 22350-286-000.

22350-329-000

Unavailable

8

PLATE, CLUTCH PRESSURE

22350-329-000

Unavailable

9

SPRING, CLUTCH This part replaces 22401-275-000.

22401-323-003

$7.70

9

SPRING, CLUTCH This part replaces 22401-323-000.

22401-323-003

$7.70

9

SPRING, CLUTCH

22401-323-003

$7.70

10

RING, CLUTCH PLATE STOPPER (NOT AVAILABLE)

22431-259-000

Unavailable

11

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-286-000

Unavailable

12

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-286-020

Unavailable

13

WASHER (6X19)

90481-259-000

Unavailable

14

BOLT, HEX. (6X20) This part replaces 92018-06020.

92101-06020-0A

$1.49

14

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

15

CIRCLIP (OUTER) (25MM) (SOURCE: VINTAGE PARTS INC.)

94510-25150

Unavailable
