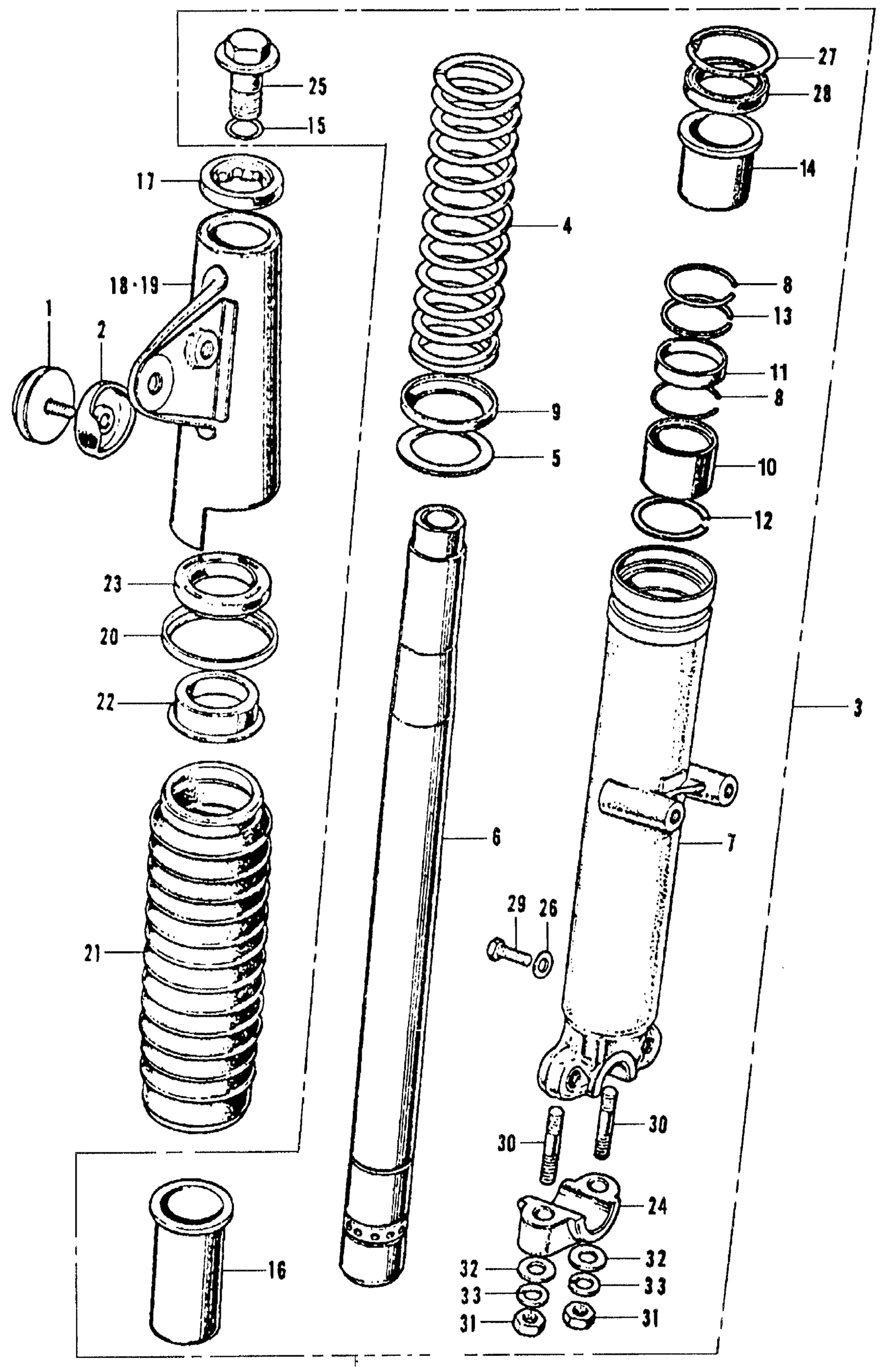

Honda CB350K2A MOTORCYCLE, JPN, VIN# CB350-2000001 CL RIGHT FRONT FORK K2 Diagram

#

Description
Price

19

COVER, L. FR. FORK

51606-318-670Z

Unavailable

21

BOOT, FR. FORK (NOT AVAILABLE)

51611-290-010

Unavailable

22

SEAT, SPRING (UPPER)

51620-290-010

Unavailable

23

RUBBER B, FR. FORK COVER (NOT AVAILABLE)

51622-290-000

Unavailable

24

HOLDER 1C, FR. FORK AXLE This part replaces 51634-292-000.

95014-41000

$13.38

24

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38

25

BOLT, FR. FORK (NOT AVAILABLE)

90123-292-780

Unavailable

26

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

27

CIRCLIP (OUTER) (44MM) (NOT AVAILABLE)

90601-286-000

$13.57

28

OIL SEAL (33X44X9)

91255-286-003

$10.42

30

BOLT 2, STUD (8X32) This part replaces 92700-08050.

92900-08032-0E

$2.17

30

BOLT 2, STUD (8X32) This part replaces 92700-08050-0A.

92900-08032-0E

$2.17

30

BOLT 2, STUD (8X32) This part replaces 92700-08050-0B.

92900-08032-0E

$2.17

30

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

30

BOLT 2, STUD (8X32) This part replaces 92700-08050-00.

92900-08032-0E

$2.17

30

BOLT 2, STUD (8X32) This part replaces 92700-08050-05.

92900-08032-0E

$2.17

30

BOLT 2, STUD (8X32)

92900-08032-0E

$2.17

31

NUT, HEX. (8MM)

94030-08000

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

32

WASHER, SPRING (8MM)

94111-08000

$1.49

33

BOLT, HEX. (6X8) This part replaces 92000-06008-0B.

92101-06008-0B

$1.84

33

BOLT, HEX. (6X8) This part replaces 92000-06008-02.

92101-06008-0B

$1.84

33

BOLT, HEX. (6X8) This part replaces 92100-06008-0B.

92101-06008-0B

$1.84

33

BOLT, HEX. (6X8)

92101-06008-0B

$1.84

33

BOLT 2, STUD (8X32) This part replaces 92700-08049-0B.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050-0A.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050-0B.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050-00.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32) This part replaces 92700-08050-05.

92900-08032-0E

$2.17

33

BOLT 2, STUD (8X32)

92900-08032-0E

$2.17
