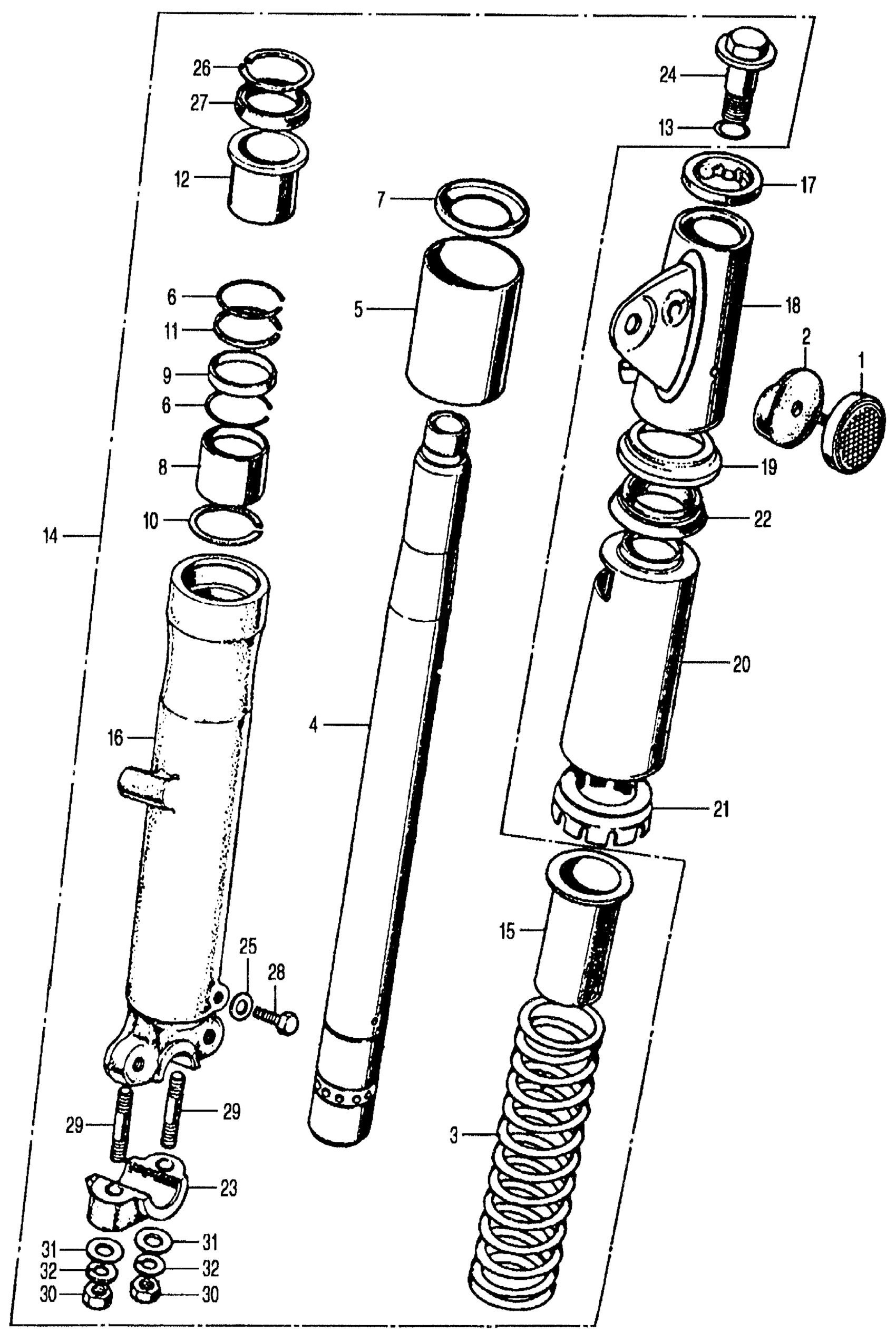

Honda CB350K2A MOTORCYCLE, JPN, VIN# CB350-2000001 CB LEFT FRONT FORK K2 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-286-670.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX

33741-315-000

$25.26

2

BASE, FR. REFLEX REFLECTOR This part replaces 33743-286-670.

33743-341-670

Unavailable

2

BASE, FR. REFLEX REFLECTOR

33743-341-670

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-286-010

Unavailable

4

PIPE, FR. FORK (NOT AVAILABLE)

51410-286-020

Unavailable

5

COVER, CASE (LOWER) (NOT AVAILABLE)

51423-286-000

Unavailable

6

RING, PISTON STOPPER (NOT AVAILABLE)

51424-283-000

Unavailable

7

GUIDE, SPRING (LOWER) (NOT AVAILABLE)

51427-286-000

Unavailable

8

PISTON, FR. FORK

51442-286-300

Unavailable

9

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-268-020

Unavailable

10

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-268-000

Unavailable

11

RING, FORK VALVE STOPPER (NOT AVAILABLE)

51446-268-000

Unavailable

12

GUIDE, FR. FORK PIPE (NOT AVAILABLE) This part replaces 51451-286-000.

51451-298-690

Unavailable

12

GUIDE, FR. FORK PIPE (NOT AVAILABLE)

51451-298-690

Unavailable

13

O-RING (11X3) (NOT AVAILABLE)

51493-292-780

Unavailable

14

FORK ASSY., L. FR.

51500-317-670

Unavailable

15

GUIDE, SPRING (NOT AVAILABLE)

51509-286-000

Unavailable

16

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51520-286-020

Unavailable

17

RUBBER, FORK COVER (UPPER)

51601-292-010

Unavailable

18

COVER, L. FR. FORK This part replaces 51606-317-670AZ.

51606-317-670Z

Unavailable

18

COVER, L. FR. FORK This part replaces 51606-317-670CM.

51606-317-670Z

Unavailable

18

COVER, L. FR. FORK This part replaces 51606-317-670CQ.

51606-317-670Z

Unavailable

18

COVER, L. FR. FORK

51606-317-670Z

Unavailable

19

RIB, FR. FORK (NOT AVAILABLE)

51608-286-010

Unavailable

20

COVER, R. FR. FORK (LOWER)

51611-286-010Z

Unavailable

21

GUIDE, FR. FORK COVER (LOWER) (NOT AVAILABLE)

51619-286-000

Unavailable

22

RUBBER B, FR. FORK COVER (NOT AVAILABLE)

51622-286-010

Unavailable

23

HOLDER 1C, FR. FORK AXLE This part replaces 51634-292-000.

95014-41000

$13.38

23

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38

24

BOLT, FR. FORK (NOT AVAILABLE)

90123-292-780

Unavailable

25

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

26

CIRCLIP (OUTER) (44MM) (NOT AVAILABLE)

90601-286-000

$13.57

27

OIL SEAL (33X44X9)

91255-286-003

$10.42

28

BOLT, HEX. (6X8) This part replaces 92000-06008-0B.

92101-06008-0B

$1.84

28

BOLT, HEX. (6X8) This part replaces 92000-06008-02.

92101-06008-0B

$1.84

28

BOLT, HEX. (6X8) This part replaces 92100-06008-0B.

92101-06008-0B

$1.84

28

BOLT, HEX. (6X8)

92101-06008-0B

$1.84

29

BOLT 2, STUD (8X32) This part replaces 92700-08049-0B.

92900-08032-0E

$2.17

29

BOLT 2, STUD (8X32) This part replaces 92700-08050.

92900-08032-0E

$2.17

29

BOLT 2, STUD (8X32) This part replaces 92700-08050-0A.

92900-08032-0E

$2.17

29

BOLT 2, STUD (8X32) This part replaces 92700-08050-0B.

92900-08032-0E

$2.17

29

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

29

BOLT 2, STUD (8X32) This part replaces 92700-08050-00.

92900-08032-0E

$2.17

29

BOLT 2, STUD (8X32) This part replaces 92700-08050-05.

92900-08032-0E

$2.17

29

BOLT 2, STUD (8X32)

92900-08032-0E

$2.17

30

NUT, HEX. (8MM)

94030-08000

$1.49

31

WASHER, PLAIN (8MM)

94101-08000

$1.49

32

WASHER, SPRING (8MM)

94111-08000

$1.49
