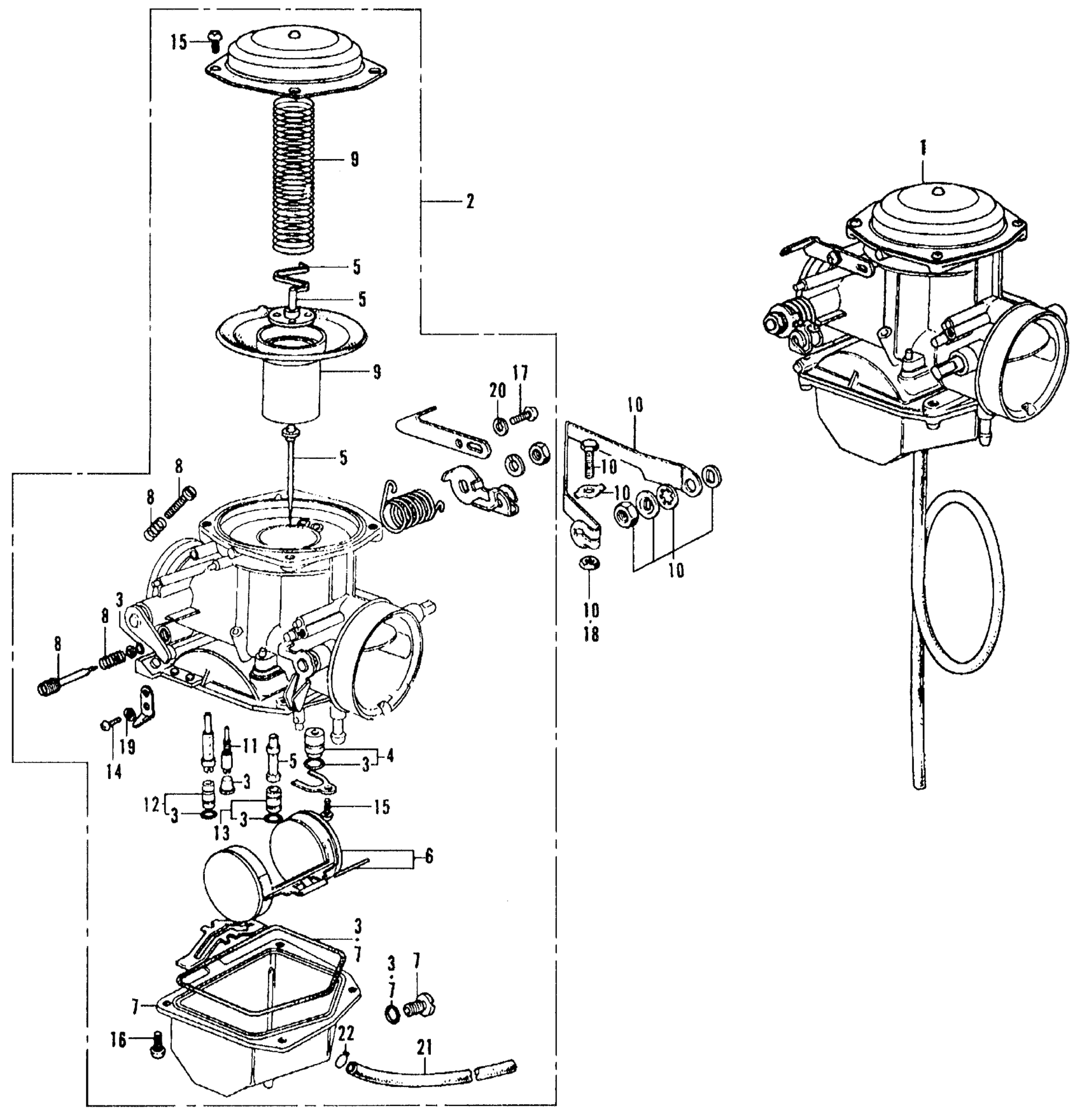

Honda CB350K2A MOTORCYCLE, JPN, VIN# CB350-2000001 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY., R. (NOT AVAILABLE) | Use from Engine SN 2103076 This part replaces 16101-287-044.

16101-287-054

Unavailable

1

CARBURETOR ASSY., R. (NOT AVAILABLE) | Use from Engine SN 2103076

16101-287-054

Unavailable

2

CARBURETOR ASSY., L. (NOT AVAILABLE) | Use from Engine SN 2103076 This part replaces 16102-287-044.

16102-287-054

Unavailable

2

CARBURETOR ASSY., L. (NOT AVAILABLE) | Use from Engine SN 2103076

16102-287-054

Unavailable

3

GASKET SET

16010-286-004

Unavailable

4

VALVE SET, FLOAT

16011-287-004

Unavailable

5

NEEDLE SET, JET (NOT AVAILABLE)

16012-287-014

Unavailable

6

FLOAT SET

16013-286-014

$32.28

7

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-286-004

Unavailable

8

SCREW SET A (NOT AVAILABLE)

16016-287-004

Unavailable

9

PISTON SET, VACUUM (NOT AVAILABLE)

16022-287-014

Unavailable

10

JOINT SET, CONNECTOR (NOT AVAILABLE)

16025-286-004

Unavailable

11

JET, SLOW (#38) (NOT AVAILABLE)

99124-286-0381

Unavailable

11

JET, SLOW (#35)

99124-286-0351

Unavailable

12

JET SET, MAIN (#68)

99201-601-0680

Unavailable

12

JET SET, MAIN (#72) (NOT AVAILABLE)

99201-601-0720

Unavailable

12

JET SET, MAIN (#70)

99201-601-0700

Unavailable

13

JET SET, SECONDARY MAIN (#110) (NOT AVAILABLE)

99202-601-1100

Unavailable

13

JET SET, SECONDARY MAIN (#105)

99202-601-1050

$4.70

14

SCREW, PAN (3X7) (NOT AVAILABLE)

93500-03007-0A

Unavailable

15

SCREW, PAN (4X8)

93500-04008-0A

$1.49

16

SCREW, PAN (4X10)

93500-04010-0A

$1.49

17

SCREW, PAN (5X12)

93500-05012-0A

$1.49

18

NUT, HEX. (5MM)

94001-05000-0S

$2.74

19

WASHER, SPRING (3MM)

94111-03000

$1.49

20

WASHER, SPRING (5MM)

94111-05000

$1.49

21

TUBE (3.5X250) (NOT AVAILABLE) | Use from Engine SN 2086055 to 2103075 This part replaces 95001-35250.

95001-35250-90

Unavailable

21

BULK HOSE, FUEL (3.5X3000) (3.5X250) | Use from Engine SN 2103076

95001-35003-60M

$20.85

21

TUBE (3.5X250) (NOT AVAILABLE) | Use from Engine SN 2086055 to 2103075

95001-35250-90

Unavailable

22

CLIP, TUBE (B7) | Use from Engine SN 2103076

95002-02070

$1.80
