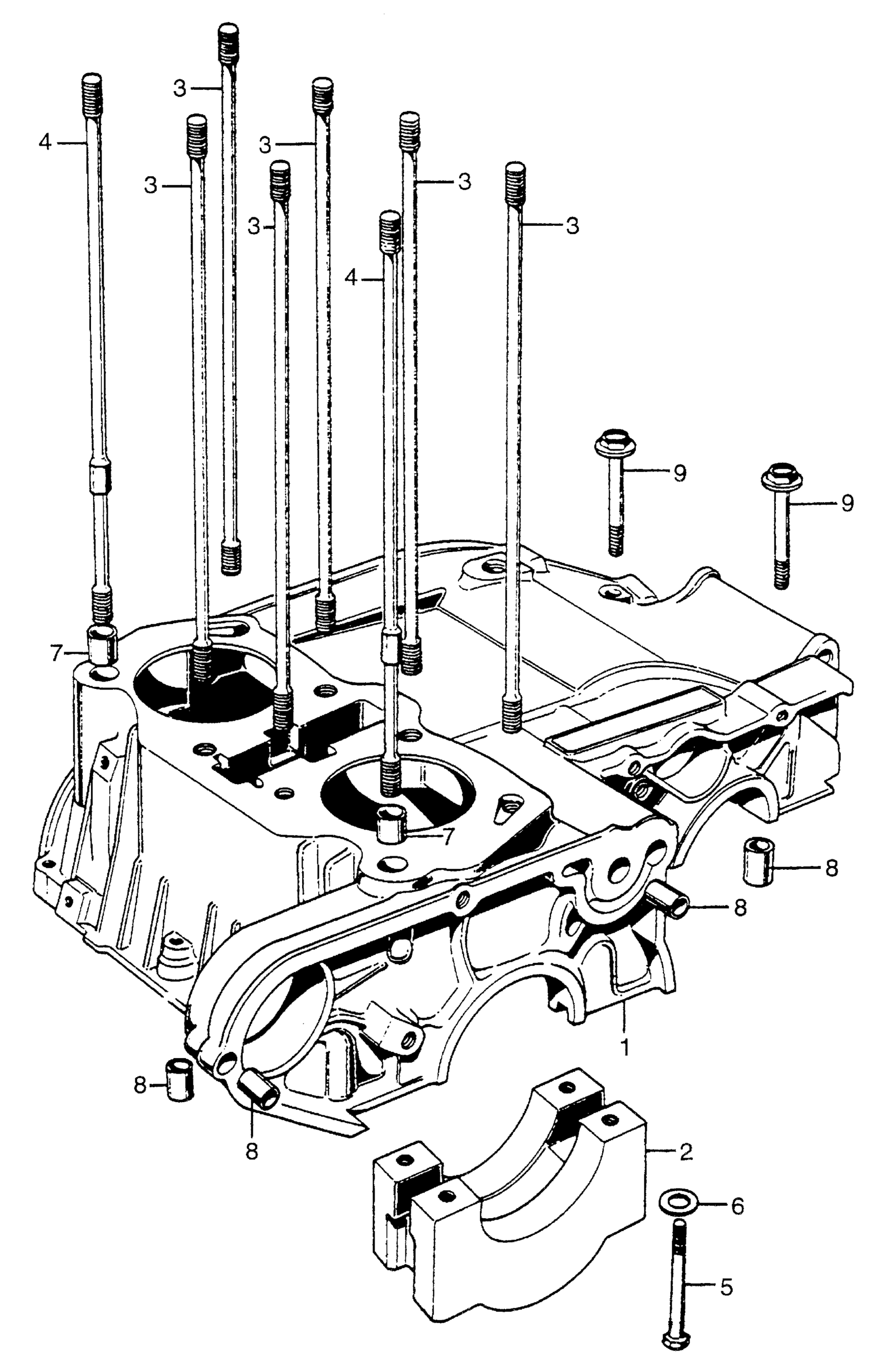

Honda CB350GA MOTORCYCLE, JPN, VIN# CB350-5000001 UPPER CRANKCASE Diagram

CRANKCASE (UPPER) (NOT AVAILABLE)

11100-287-120

Unavailable

HOLDER, CRANK CENTER BEARING (NOT AVAILABLE)

11202-286-000

Unavailable

BOLT, CYLINDER STUD (NOT AVAILABLE)

90033-286-020

Unavailable

BOLT A, CYLINDER STUD (NOT AVAILABLE)

90034-286-020

Unavailable

BOLT, HEX. (8X71) (NOT AVAILABLE)

90083-292-000

Unavailable

WASHER, THRUST (14MM)

90485-035-000

$2.92

PIN, CYLINDER KNOCK

91356-286-000

Unavailable

PIN A, DOWEL (10X14)

94301-10140

$2.28

BOLT, FLANGE (6X70) This part replaces 95700-06070.

95701-06070-00

$2.19

BOLT, FLANGE (6X70) This part replaces 95700-06070-00.

95701-06070-00

$2.19

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

BOLT, FLANGE (6X70) This part replaces 95701-06070-07.

95701-06070-00

$2.19
