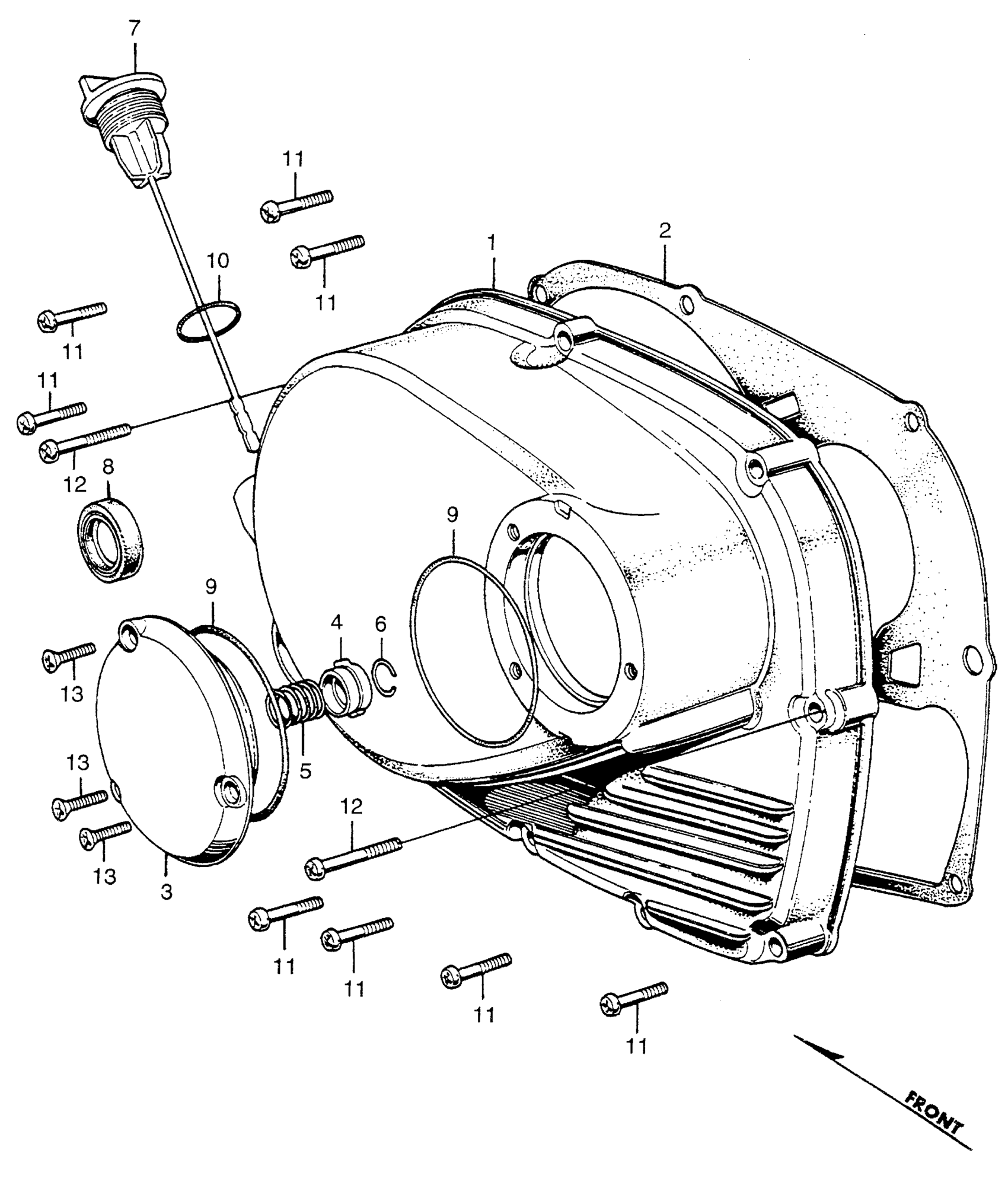

Honda CB350GA MOTORCYCLE, JPN, VIN# CB350-5000001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11331-286-030

Unavailable

GASKET, R. CRANKCASE COVER This part replaces 11394-286-040.

11394-286-306

Unavailable

GASKET, R. CRANKCASE COVER

11394-286-306

Unavailable

COVER, OIL FILTER

15481-312-000

Unavailable

METAL, OIL GUIDE (NOT AVAILABLE)

15594-286-000

Unavailable

SPRING, OIL GUIDE METAL (NOT AVAILABLE)

15595-286-000

Unavailable

RING, OIL GUIDE METAL STOPPER (NOT AVAILABLE)

15597-286-000

Unavailable

DIPSTICK, OIL (NOT AVAILABLE)

15650-286-010

Unavailable

OIL SEAL (18X29X7)

91204-286-003

$4.31

O-RING (63.5X2) This part replaces 91310-286-010.

91355-415-000

$5.59

O-RING (63.5X2)

91355-415-000

$5.59

O-RING (23X2)

91354-371-000

$3.19

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$3.19

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

SCREW, PAN (6X28)

93500-06028-0A

$1.49

SCREW, PAN (6X35)

93500-06035-0A

$1.49

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

SCREW, OVAL (5X16)

93700-05016-0B

$1.49
