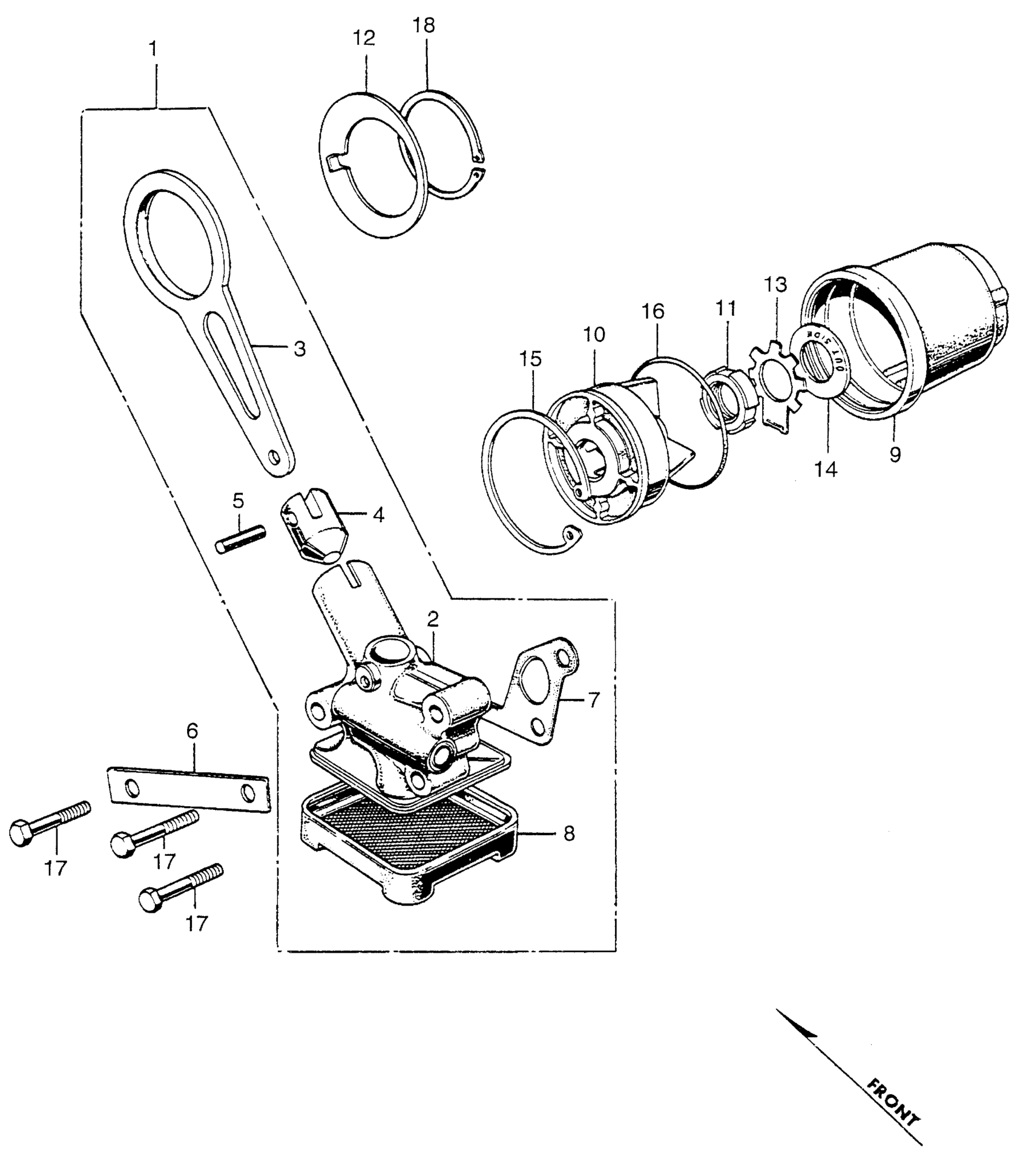

Honda CB350GA MOTORCYCLE, JPN, VIN# CB350-5000001 OIL FILTER + OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE)

15200-286-030

Unavailable

2

BODY, OIL PUMP (NOT AVAILABLE)

15201-312-000

Unavailable

3

ROD, OIL PUMP (NOT AVAILABLE)

15205-286-020

Unavailable

4

PLUNGER, OIL PUMP (NOT AVAILABLE)

15209-286-010

Unavailable

5

PIN, OIL PUMP PLUNGER (NOT AVAILABLE)

15210-286-000

Unavailable

6

WASHER, OIL PUMP LOCK (NOT AVAILABLE)

15281-286-000

Unavailable

7

GASKET, OIL PUMP (NOT AVAILABLE)

15291-286-300

Unavailable

8

SCREEN, OIL FILTER (NOT AVAILABLE)

15421-286-010

Unavailable

9

ROTOR, OIL FILTER

15441-286-040

Unavailable

10

CAP, OIL FILTER (NOT AVAILABLE)

15450-286-010

Unavailable

11

NUT, LOCK (16MM)

90231-KCS-651

$4.21

11

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

12

WASHER, PUMP ROD SIDE (NOT AVAILABLE)

90404-286-010

Unavailable

13

WASHER, SPRING (16MM)

90431-292-000

$2.92

14

WASHER (16MM) (NOT AVAILABLE)

90481-292-000

Unavailable

15

CIRCLIP (INNER) (45MM)

90604-292-000

Unavailable

16

O-RING (41X2)

91309-286-000

$7.46

17

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

17

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

17

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

18

CIRCLIP (OUTER) (32MM)

94510-32000

$1.77
