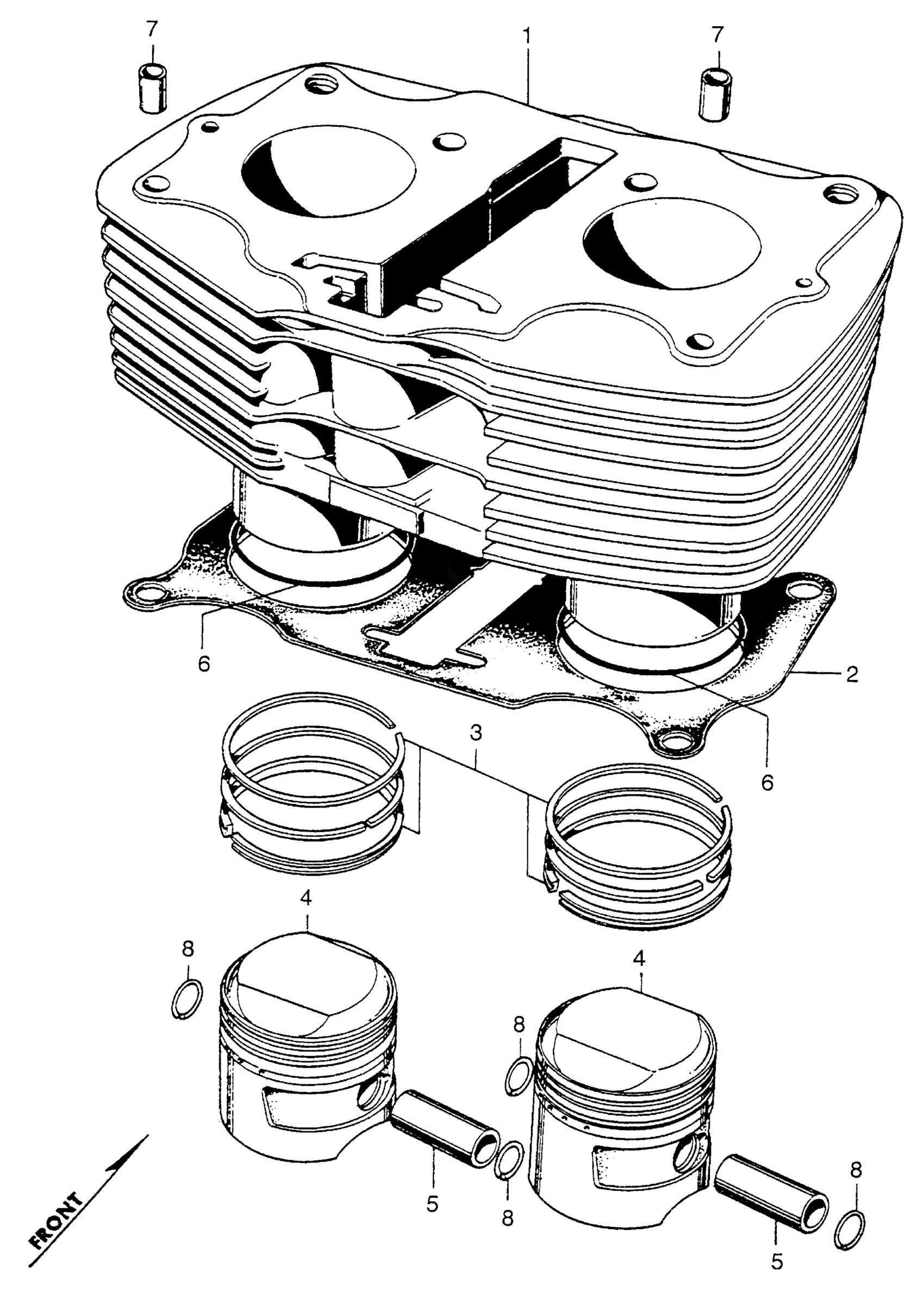

Honda CB350GA MOTORCYCLE, JPN, VIN# CB350-5000001 CYLINDER + PISTON Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-287-070

Unavailable

2

GASKET, CYLINDER This part replaces 12191-312-000.

12191-312-306

Unavailable

3

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-287-010.

13011-391-004

Unavailable

3

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-287-014.

13011-391-004

Unavailable

3

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-287-305.

13011-391-004

Unavailable

3

RING SET, PISTON (STD) (RIKEN)

13011-391-004

Unavailable

3

RING SET, PISTON (OVER SIZE) (0.25) (RIKEN) This part replaces 13021-287-010.

13021-391-004

Unavailable

3

RING SET, PISTON (OVER SIZE) (0.25) (RIKEN) This part replaces 13021-287-014.

13021-391-004

Unavailable

3

RING SET, PISTON (OVER SIZE) (0.25) (RIKEN) This part replaces 13021-287-305.

13021-391-004

Unavailable

3

RING SET, PISTON (OS 0.25) (RIKEN)

13021-391-004

Unavailable

3

RING SET, PISTON (OVER SIZE) (0.50) (RIKEN) This part replaces 13031-287-010.

13031-391-004

Unavailable

3

RING SET, PISTON (OVER SIZE) (0.50) (RIKEN) This part replaces 13031-287-014.

13031-391-004

Unavailable

3

RING SET, PISTON (OVER SIZE) (0.50) (RIKEN) This part replaces 13031-287-305.

13031-391-004

Unavailable

3

RING SET, PISTON (OS 0.50) (RIKEN)

13031-391-004

Unavailable

3

RING (OS) (0.75) This part replaces 13041-287-010.

13041-391-004

Unavailable

3

RING (OS) (0.75) This part replaces 13041-287-014.

13041-391-004

Unavailable

3

RING (OS) (0.75) This part replaces 13041-287-305.

13041-391-004

Unavailable

3

RING SET, PISTON (1.00)

13051-287-010

$28.90

3

RING SET, PISTON (1.00) (RIKEN) This part replaces 13051-287-014.

13051-391-004

Unavailable

3

RING SET, PISTON (1.00) (RIKEN) This part replaces 13051-287-305.

13051-391-004

Unavailable

3

RING SET, PISTON (1.00) (RIKEN)

13051-391-004

Unavailable

4

PISTON (STD) (NOT AVAILABLE) This part replaces 13101-312-000.

13101-312-010

Unavailable

4

PISTON (STD) (NOT AVAILABLE)

13101-312-010

Unavailable

4

PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional). This part replaces 13102-312-000.

13102-312-010

Unavailable

4

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-312-010

Unavailable

4

PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional). This part replaces 13103-312-000.

13103-312-010

Unavailable

4

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-312-010

Unavailable

4

PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional). This part replaces 13104-312-000.

13104-312-010

Unavailable

4

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-312-010

Unavailable

4

PISTON (1.00) | (Optional). This part replaces 13105-312-000.

13105-312-010

Unavailable

4

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-312-010

Unavailable

5

PIN, PISTON

13111-KR9-000

Unavailable

5

PIN, PISTON This part replaces 13111-287-000.

13111-KR9-000

Unavailable

6

O-RING (69.8X2.0)

91304-287-000

$9.33

7

PIN, CYLINDER KNOCK

91356-286-000

Unavailable

8

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
