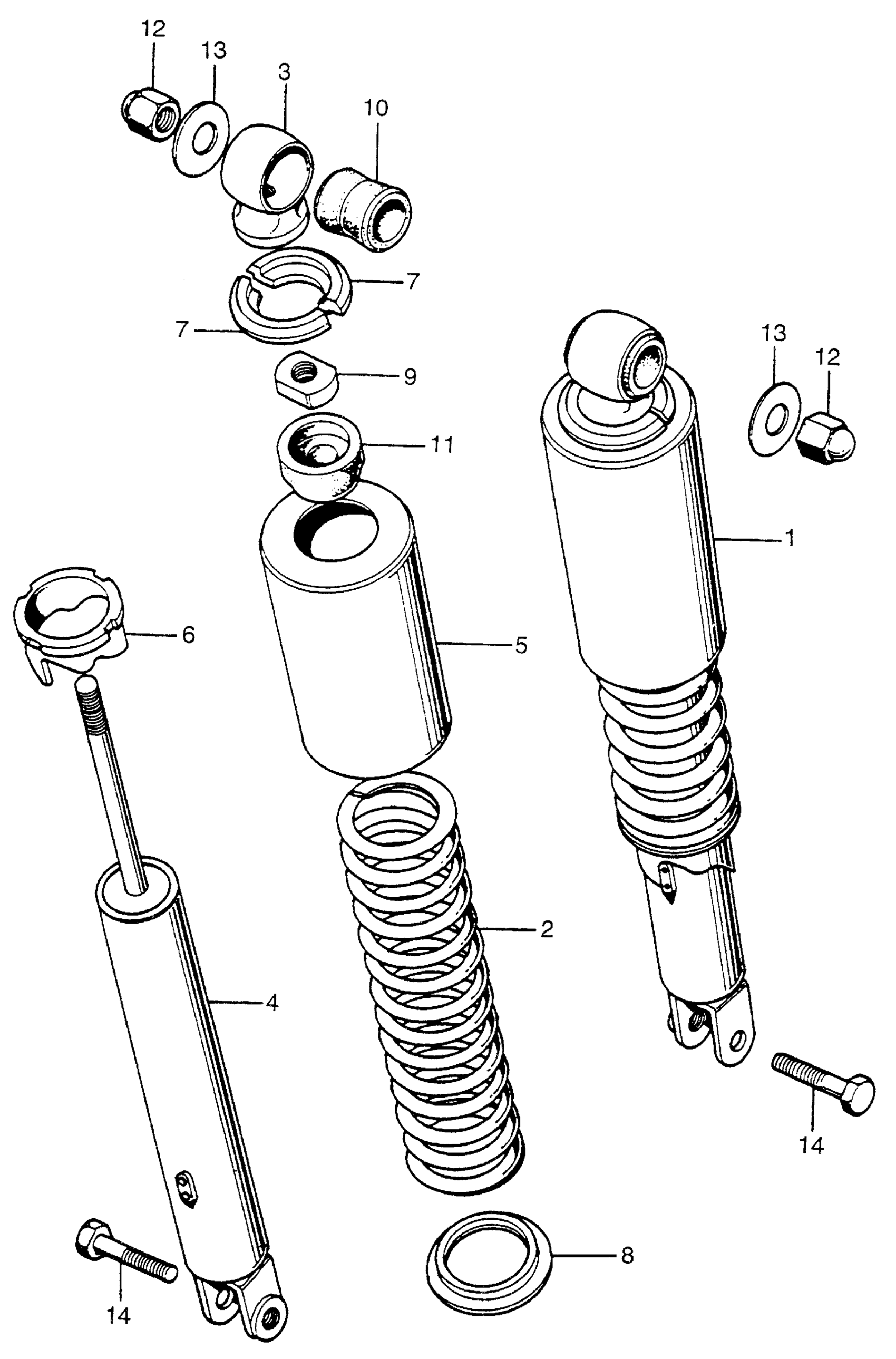

Honda CB350GA MOTORCYCLE, JPN, VIN# CB350-5000001 CB350G REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

52400-455-670XW

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-317-700

Unavailable

JOINT (UPPER) (NOT AVAILABLE)

52403-317-700

Unavailable

DAMPER, RR. (NOT AVAILABLE)

52410-333-000

Unavailable

CASE, SHOCK ABSORBER (UPPER) *MRCR2* (CHROME PLATING)

52421-292-670XW

Unavailable

ADJUSTER, RR. SHOCK ABSORBER SPRING

52422-455-000

Unavailable

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

SEAT, SPRING (LOWER) (NOT AVAILABLE)

52458-317-700

Unavailable

NUT, LOCK (9MM) (NOT AVAILABLE)

52482-331-003

Unavailable

RUBBER, JOINT

52484-292-000

$5.87

RUBBER, STOPPER

52517-331-003

Unavailable

NUT, FLANGE (10MM)

90309-315-000

$5.35

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

BOLT, HEX. (10X32) This part replaces 93000-10032-0B.

93101-10032-0B

$2.92

BOLT, HEX. (10X32)

93101-10032-0B

$2.92
