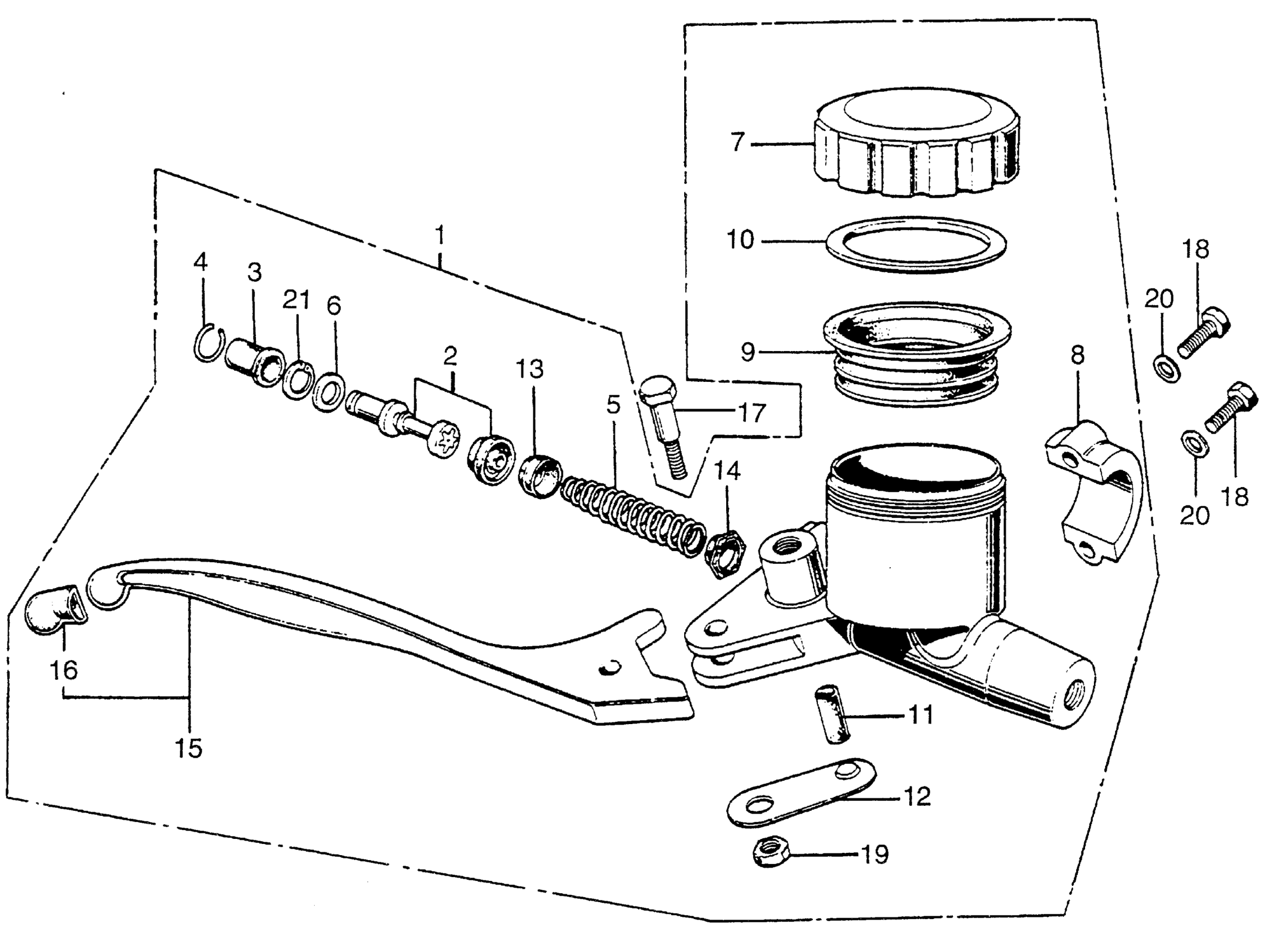

Honda CB350GA MOTORCYCLE, JPN, VIN# CB350-5000001 CB350G MASTER BRAKE CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY. (NOT AVAILABLE) This part replaces 45500-333-670.

45500-369-671

Unavailable

1

MASTER CYLINDER ASSY. (NOT AVAILABLE) This part replaces 45500-369-670.

45500-369-671

Unavailable

1

MASTER CYLINDER ASSY. (NOT AVAILABLE)

45500-369-671

Unavailable

2

PISTON SET

45502-300-305

Unavailable

3

BOOT

45504-300-003

Unavailable

4

STOPPER, BOOT

45505-300-003

Unavailable

5

SPRING

45506-300-003

Unavailable

6

WASHER (10.5MM)

45512-300-003

Unavailable

7

CAP, OIL CUP

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 45513-341-770.

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

8

CAP, OIL CUP

43513-MJ6-006

Unavailable

8

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

8

CAP, OIL CUP This part replaces 45513-341-770.

43513-MJ6-006

Unavailable

8

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

9

DIAPHRAGM

45520-300-000

$9.05

10

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

10

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

11

BUSH, R. HANDLEBAR CONTROL LEVER

45526-341-000

Unavailable

12

PLATE, CONTROL LEVER BUSH SETTING

45527-300-000

Unavailable

13

CUP, FR. PRIMARY (NISSHIN)

46125-533-003

Unavailable

14

VALVE, CHECK (NISSHIN)

46140-533-003

Unavailable

15

LEVER, R. HANDLEBAR This part replaces 53170-333-000.

53175-369-003

Unavailable

15

LEVER, R. HANDLEBAR This part replaces 53170-369-003.

53175-369-003

Unavailable

15

LEVER, R. HANDLEBAR

53175-369-003

Unavailable

16

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.97

16

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

16

CAP A, LEVER

95010-16001

$5.97

17

BOLT, HANDLEBAR LEVER PIVOT

90114-300-000

$8.07

18

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

18

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

19

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

19

NUT, HEX. (6MM)

94002-06000-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

CIRCLIP (INNER) (18MM)

94520-18000

$1.49
