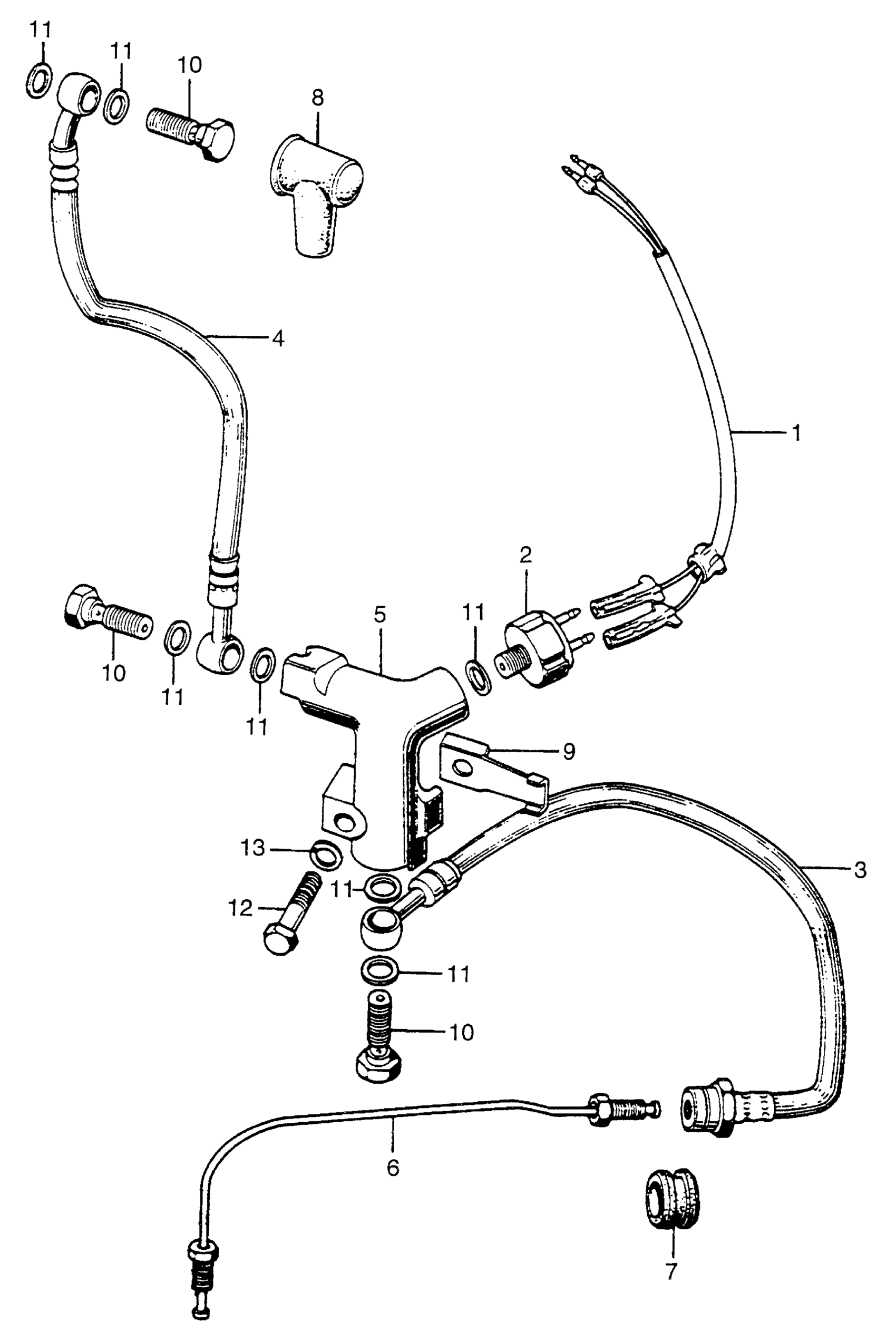

Honda CB350GA MOTORCYCLE, JPN, VIN# CB350-5000001 CB350G FRONT BRAKE HOSE Diagram

SUB-WIRE, FR. STOP SWITCH (NOT AVAILABLE)

35345-319-000

Unavailable

SWITCH, STOP (NOT AVAILABLE)

35350-300-016

Unavailable

HOSE A, FR. BRAKE (NICHIRIN)

45125-300-003

Unavailable

HOSE A, FR. BRAKE (NICHIRIN) This part replaces 45125-300-020.

45125-300-003

Unavailable

HOSE B, FR. BRAKE (NOT AVAILABLE)

45126-333-000

Unavailable

JOINT, THREE-WAY

45127-323-000

Unavailable

PIPE, FR. BRAKE

45128-317-701

Unavailable

GROMMET, BRAKE HOSE

45146-300-000

$4.24

BOOT, MASTER CYLINDER

45522-300-010

$9.29

HOLDER, THREE-WAY JOINT (NOT AVAILABLE)

53208-317-700

Unavailable

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

BOLT, OIL

90145-300-010

$9.68

WASHER, OIL BOLT

90545-300-000

$3.99

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49
