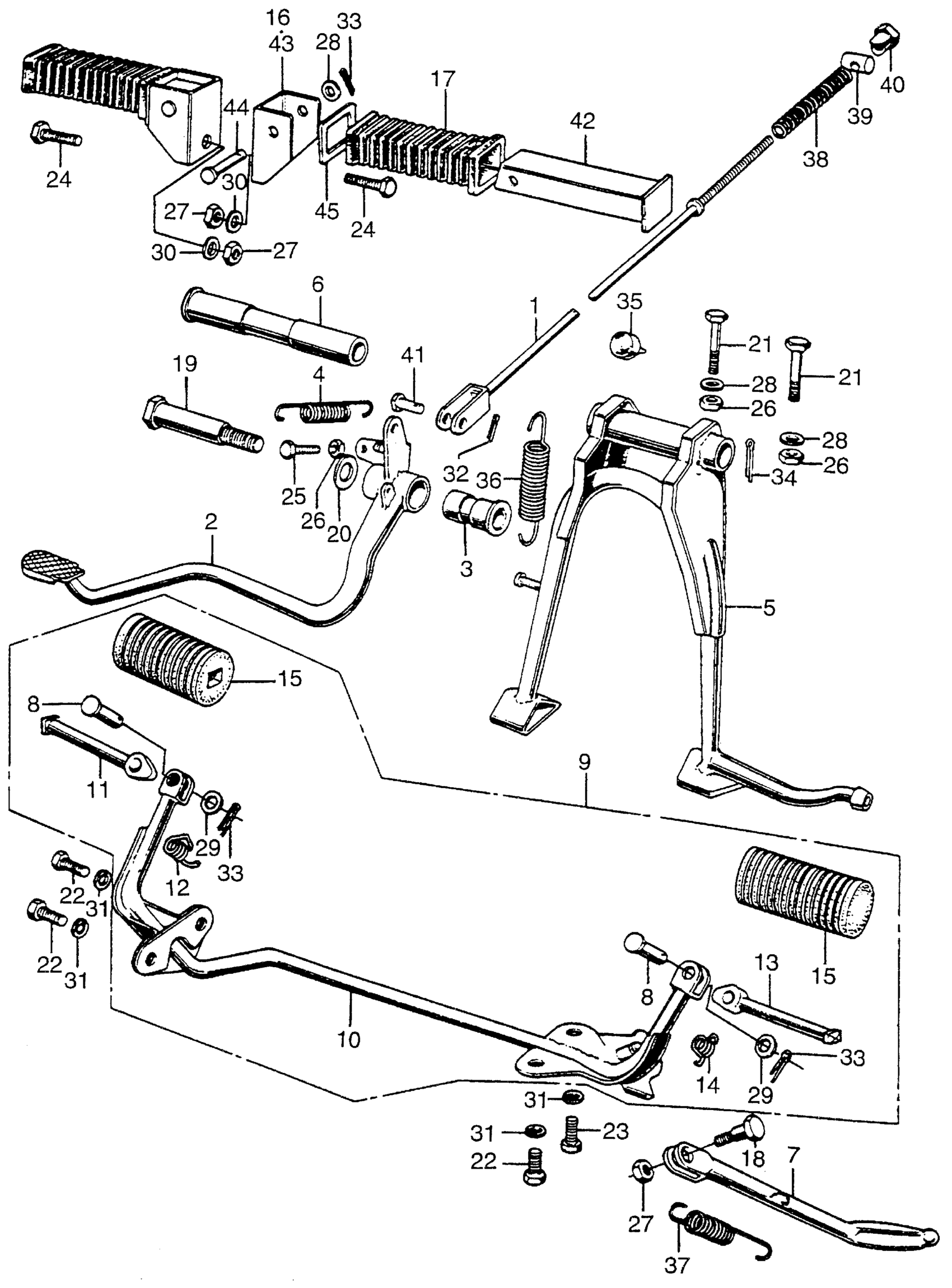

Honda CB350GA MOTORCYCLE, JPN, VIN# CB350-5000001 BRAKE PEDAL + STEP + STAND Diagram

#

Description
Price

1

ROD, RR. BRAKE (NOT AVAILABLE)

43451-286-010

Unavailable

2

PEDAL, BRAKE (NOT AVAILABLE)

46500-317-670

Unavailable

3

COLLAR, BRAKE PEDAL (NOT AVAILABLE)

46506-286-000

Unavailable

4

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-286-020

Unavailable

5

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-286-000B

Unavailable

6

SHAFT, MAIN STAND PIVOT This part replaces 50526-286-000.

50526-399-000

Unavailable

6

SHAFT, MAIN STAND PIVOT

50526-399-000

Unavailable

7

BAR, SIDE STAND (NOT AVAILABLE) This part replaces 50530-294-000.

50530-341-670

Unavailable

7

BAR, SIDE STAND (NOT AVAILABLE) This part replaces 50530-300-000.

50530-341-670

Unavailable

7

BAR, SIDE STAND (NOT AVAILABLE) This part replaces 50530-341-000.

50530-341-670

Unavailable

7

BAR, SIDE STAND (NOT AVAILABLE)

50530-341-670

Unavailable

8

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

8

PIN, STEP BAR JOINT

50603-033-010

$3.30

9

BAR ASSY., STEP *NH1* (BLACK)

50610-455-000B

Unavailable

10

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50615-455-000B

Unavailable

11

ARM, R. STEP (NOT AVAILABLE)

50616-310-000

Unavailable

12

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

13

ARM, L. STEP (NOT AVAILABLE)

50642-310-000

Unavailable

14

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

15

RUBBER, STEP

50661-333-000

Unavailable

16

BRACKET 2, PILLION This part replaces 50713-333-000.

95015-72200

Unavailable

16

BRACKET 2, PILLION

95015-72200

Unavailable

17

RUBBER, PILLION STEP (NOT AVAILABLE)

50714-333-000

Unavailable

18

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

19

BOLT, RR. BRAKE PIVOT

90128-286-000

Unavailable

20

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

20

WASHER (14X26)

90527-634-670

Unavailable

21

BOLT, HEX. (6X38) (NOT AVAILABLE)

92000-06038

Unavailable

22

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

22

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

23

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

23

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

24

BOLT, HEX. (10X25) This part replaces 92000-10025-0A.

92101-10025-0A

$2.19

24

BOLT, HEX. (10X25)

92101-10025-0A

$2.19

25

BOLT, HEX. (6X20) (NOT AVAILABLE)

92020-06020

Unavailable

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (10MM)

94001-10000-0S

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, PLAIN (8MM)

94101-08000

$1.49

30

WASHER, PLAIN (10MM)

94101-10000

$1.49

31

WASHER, SPRING (8MM)

94111-08000

$1.49

32

PIN, COTTER (1.6X12)

94201-16120

$1.49

33

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

33

PIN, COTTER (1.6X25)

94201-16250

$1.49

34

PIN, COTTER (2.5MM)

94201-25300

$1.49

36

SPRING F, MAIN STAND (NOT AVAILABLE) This part replaces 95014-71600.

95014-71602

Unavailable

36

SPRING F, MAIN STAND (NOT AVAILABLE) This part replaces 95014-71601.

95014-71602

Unavailable

36

SPRING F, MAIN STAND (NOT AVAILABLE)

95014-71602

Unavailable

37

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

37

SPRING D, SIDE STAND

95014-72402

$2.92

38

SPRING A, BRAKE ROD

95014-73100

$1.49

38

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

39

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

39

JOINT, BRAKE ARM

95015-32001

$1.49

40

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

41

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

42

BAR B, PILLION STEP

95015-62000

$30.68

44

PIN B, PILLION FOOTPEG

95015-82000

$2.41

45

WASHER, FOOTPEG

95015-91000

$1.31
