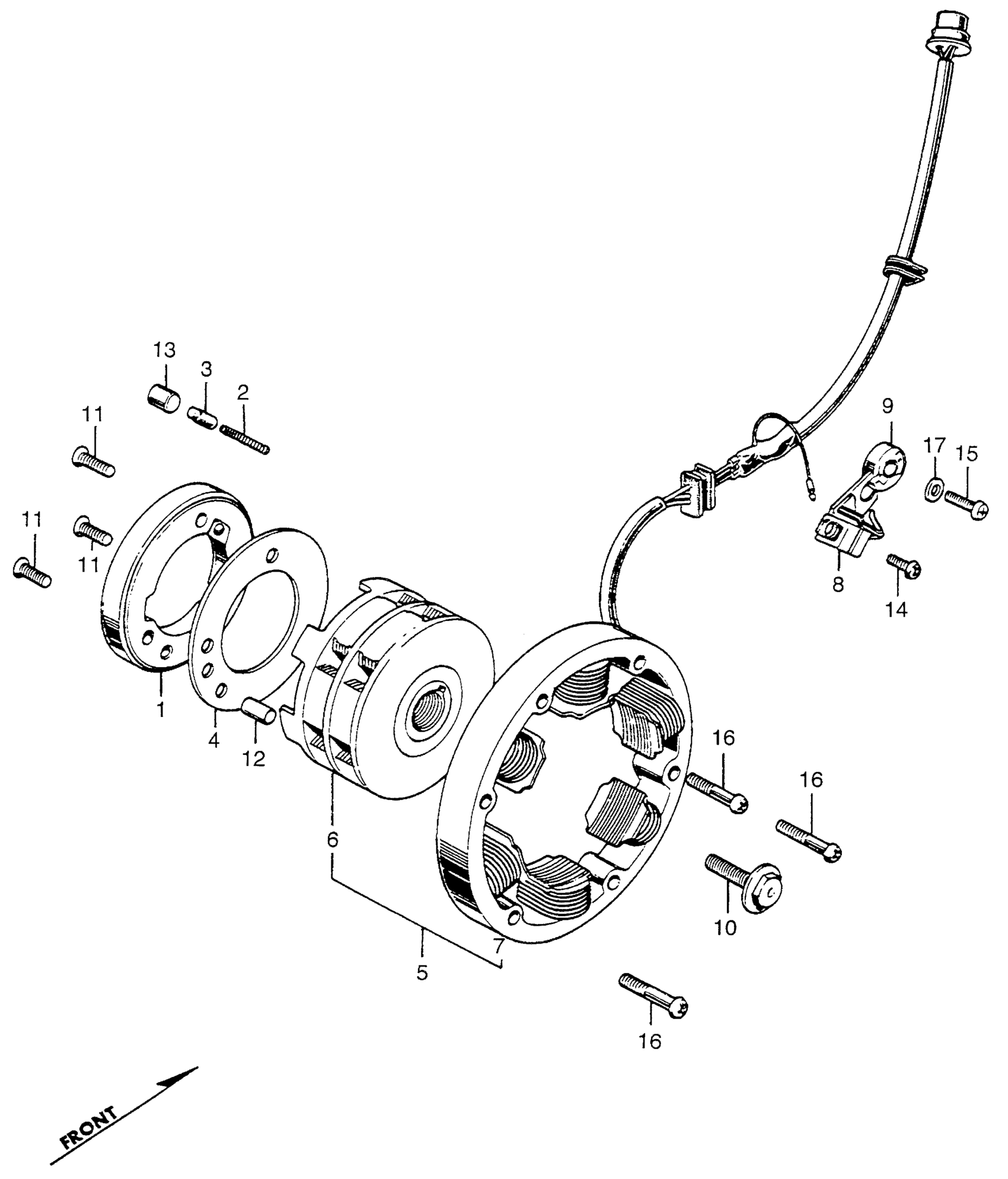

Honda CB350GA MOTORCYCLE, JPN, VIN# CB350-5000001 ALTERNATOR + NEUTRAL SWITCH Diagram

#

Description
Price

1

CLUTCH, STARTER (OUTER) (NOT AVAILABLE)

28120-286-000

Unavailable

2

SPRING, STARTER CLUTCH ROLLER

28125-253-020

$5.57

3

CAP, STARTER CLUTCH ROLLER SPRING

28126-253-030

$4.53

4

PLATE, STARTER CLUTCH SIDE

28128-253-030

$6.08

5

ALTERNATOR ASSY. (NOT AVAILABLE) This part replaces 31100-286-004.

31100-286-309

Unavailable

5

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-286-309

Unavailable

6

ROTOR, ALTERNATOR (NOT AVAILABLE) This part replaces 31101-286-014.

31101-286-309

Unavailable

6

ROTOR, ALTERNATOR (NOT AVAILABLE)

31101-286-309

Unavailable

7

STATOR (DENSO) (NOT AVAILABLE)

31102-286-014

Unavailable

8

STATOR, SWITCH (NOT AVAILABLE)

35752-286-003

Unavailable

9

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-286-003

Unavailable

10

BOLT, ROTOR SETTING (NOT AVAILABLE)

90014-286-000

Unavailable

11

SCREW, FLAT (6X25)

90091-286-000

Unavailable

12

PIN, KNOCK (6X17.5) (NOT AVAILABLE)

90704-259-000

Unavailable

13

ROLLER (10.2X11.5)

91101-377-000

$3.01

13

ROLLER (10.2X11.5) This part replaces 91103-259-000.

91101-377-000

$3.01

14

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

14

SCREW, PAN (6X12)

93500-06012-0A

$1.49

14

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

15

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

15

SCREW, PAN (6X20)

93500-06020-0A

$1.49

16

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

16

SCREW, PAN (6X28)

93500-06028-0A

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49
