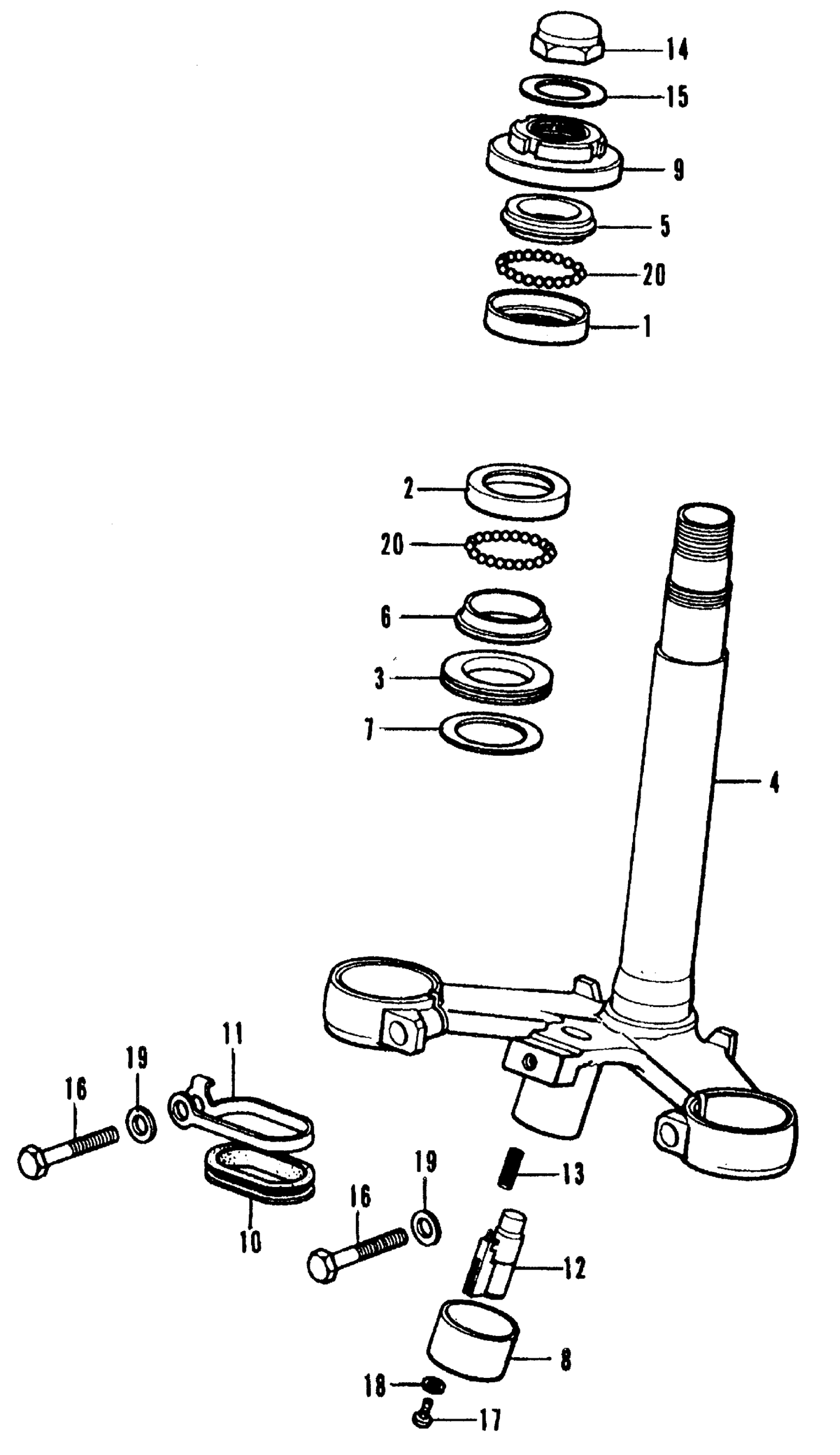

Honda CB350FA MOTORCYCLE, JPN, VIN# CB350F-1000001 STEERING STEM Diagram

#

Description
Price

1

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

1

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

1

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

2

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

2

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

2

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

3

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

3

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

4

STEM, STEERING *NH1* (BLACK) | Use up to Frame SN 1080989 This part replaces 53200-333-000B.

53200-333-010B

Unavailable

4

STEM, STEERING *NH1* (BLACK) | Use up to Frame SN 1080989

53200-333-010B

Unavailable

5

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

5

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

5

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

6

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

6

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

6

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

7

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

8

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-317-000

Unavailable

9

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

10

GUIDE, CABLE (INNER) (NOT AVAILABLE)

53225-333-000

Unavailable

11

BRACKET, CABLE GUIDE (NOT AVAILABLE)

53226-333-000

Unavailable

12

LOCK, HANDLEBAR

35010-230-010

Unavailable

12

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

12

LOCK, HANDLEBAR This part replaces 53600-230-004.

35010-230-010

Unavailable

13

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

14

NUT, STEERING STEM This part replaces 90304-323-670.

90304-415-000

$19.83

14

NUT, STEERING STEM

90304-415-000

$19.83

14

NUT, STEERING STEM This part replaces 95020-11300.

90304-415-000

$19.83

15

WASHER, STEERING STEM

90503-283-000

$4.37

16

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

16

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

16

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

17

SCREW, PAN (3X8)

93500-03008-0A

$1.49

18

WASHER, PLAIN (3MM)

94101-03000

$1.49

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
