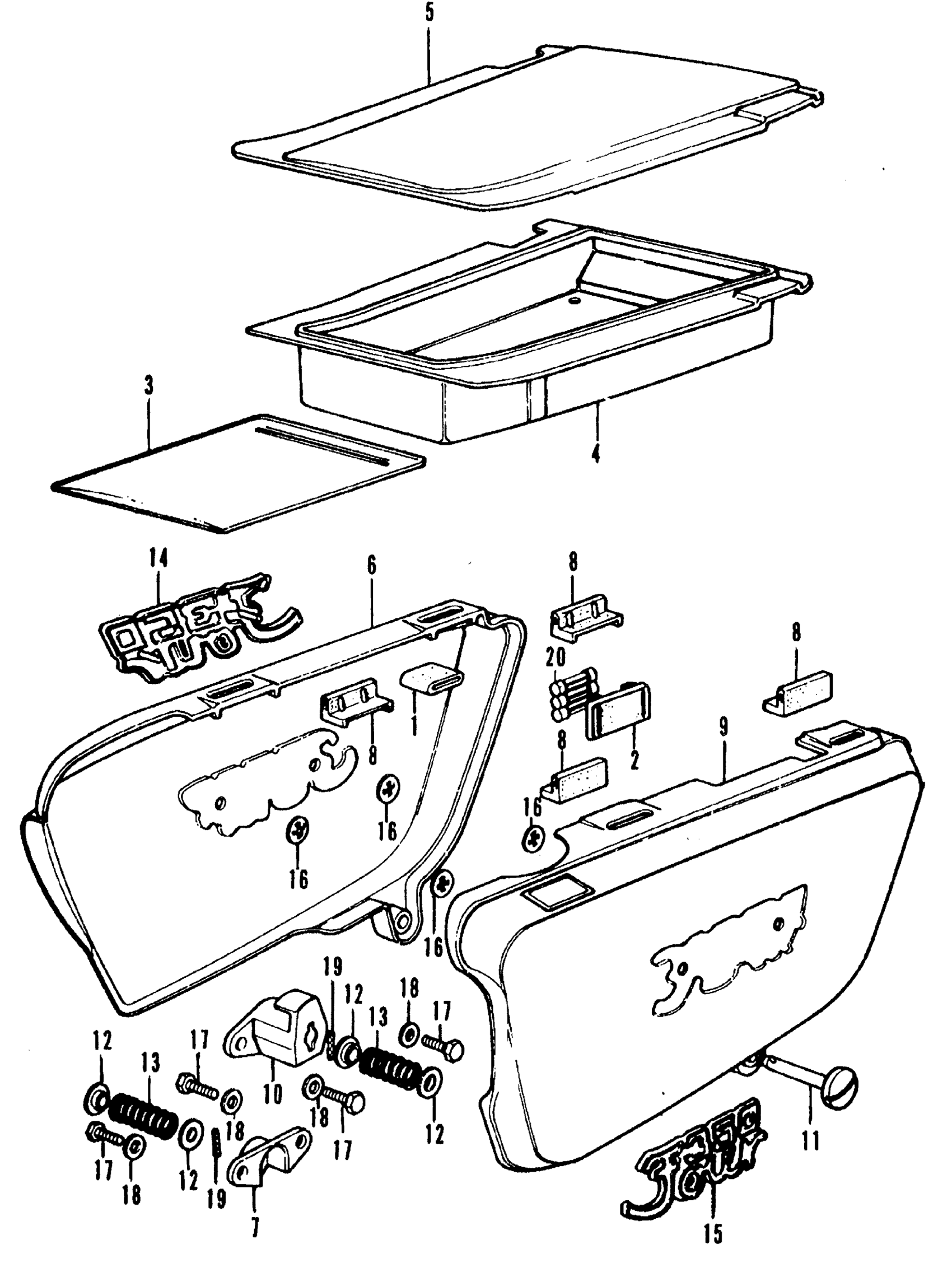

Honda CB350FA MOTORCYCLE, JPN, VIN# CB350F-1000001 SIDE COVER + TOOL TRAY Diagram

#

Description
Price

1

RUBBER B, BATTERY SETTING

31503-044-670

$2.56

2

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

3

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

4

TRAY, TOOL (NOT AVAILABLE)

83501-333-020

Unavailable

5

LID, TOOL TRAY (NOT AVAILABLE)

83502-333-000

Unavailable

6

COVER, R. SIDE *G5WC* (CANDY BACCHUS OLIVE CUSTOM) (NOT AVAILABLE)

83600-333-010LY

Unavailable

6

COVER, R. SIDE *R4CF* (FLAKE MATADOR RED) (NOT AVAILABLE)

83600-333-010PJ

Unavailable

7

HOLDER, R. SIDE COVER (LOWER) (NOT AVAILABLE)

83601-333-000

Unavailable

8

GROMMET, SIDE COVER

83621-333-000

$5.80

9

COVER, L. SIDE *G5WC* (CANDY BACCHUS OLIVE CUSTOM) (NOT AVAILABLE)

83700-333-010LY

Unavailable

9

COVER, L. SIDE *R4CF* (FLAKE MATADOR RED) (NOT AVAILABLE)

83700-333-010PJ

Unavailable

10

HOLDER, L. SIDE COVER (LOWER) (NOT AVAILABLE)

83701-333-000

Unavailable

11

PIN, SIDE COVER (NOT AVAILABLE)

83703-333-000

Unavailable

12

GUIDE, SPRING

83704-333-000

Unavailable

13

SPRING, SIDE COVER SET (NOT AVAILABLE)

83705-333-000

Unavailable

14

EMBLEM, R. SIDE COVER (NOT AVAILABLE)

87128-333-000

Unavailable

15

EMBLEM, L. SIDE COVER (NOT AVAILABLE)

87129-333-000

Unavailable

16

NUT, SPEED (3MM) This part replaces 90313-512-000.

90313-567-000

$3.97

16

NUT, SPEED (3MM)

90313-567-000

$3.97

17

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

17

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

PIN, SPRING (2X14) (NOT AVAILABLE)

94305-20143

Unavailable

20

FUSE A (15A)

98200-11500

$1.49
