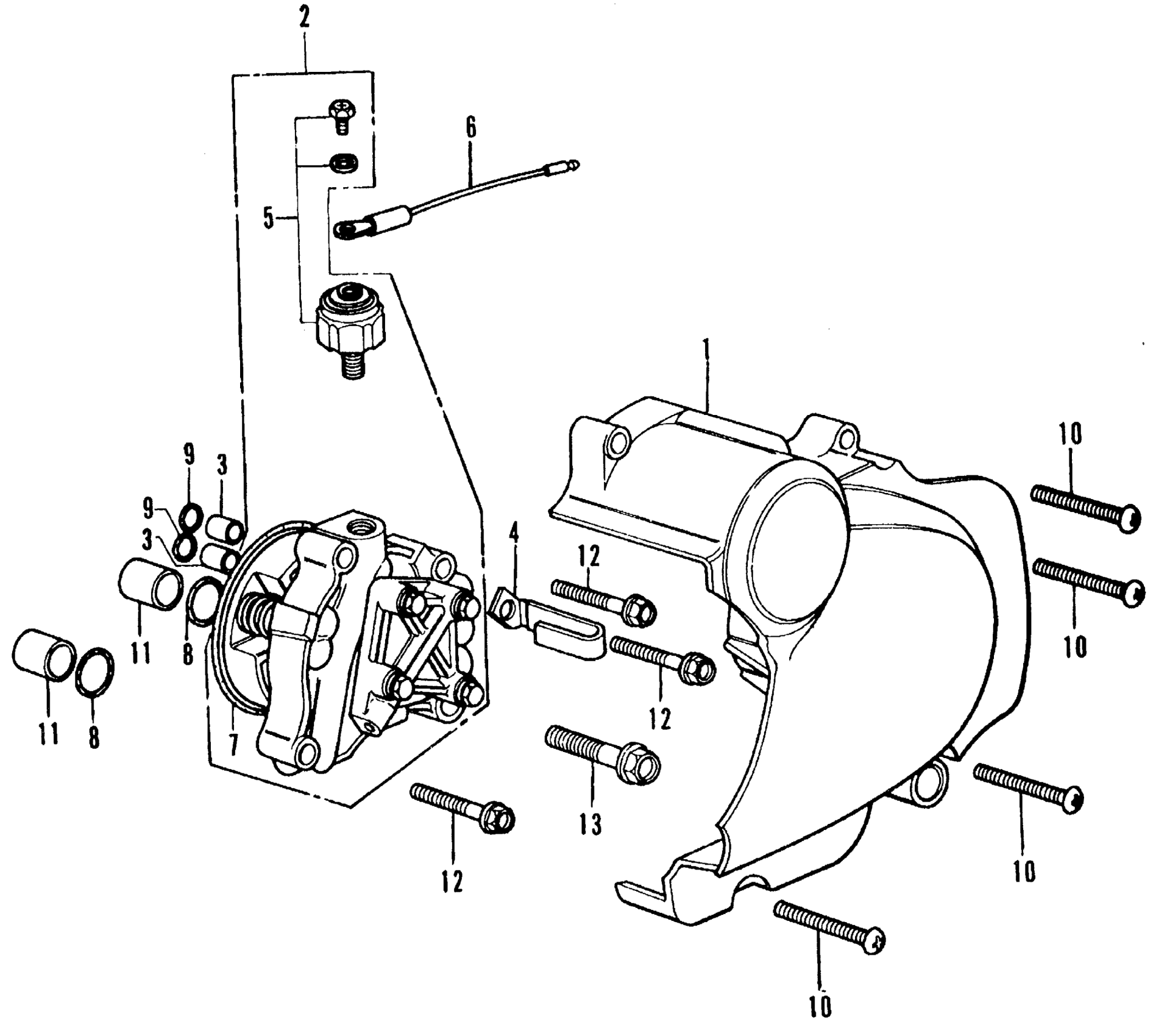

Honda CB350FA MOTORCYCLE, JPN, VIN# CB350F-1000001 LEFT CRANKCASE COVER + OIL PUMP Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use up to Engine SN 1068282 This part replaces 11341-333-000.

11341-333-010

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 1068283

11341-333-010

Unavailable

2

PUMP ASSY., OIL (NOT AVAILABLE)

15100-333-010

Unavailable

3

COLLAR, O-RING GUIDE (NOT AVAILABLE)

15391-333-000

Unavailable

4

CLAMP C, WIRE (NOT AVAILABLE)

32113-333-000

Unavailable

5

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 1065444 This part replaces 35500-333-004.

37240-P13-013

$44.49

5

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 1065444 This part replaces 35500-333-014.

37240-P13-013

$44.49

5

SWITCH ASSY., OIL PRESSURE (DENSO) | Use up to Engine SN 1065444

37240-P13-013

$44.49

6

SUB-WIRE, PRESSURE (NOT AVAILABLE)

35510-333-000

Unavailable

7

O-RING (62.4X2.5) (ARAI) This part replaces 41123-516-000.

91304-MF5-003

$6.31

8

O-RING (15X2.5)

91301-MY9-003

$2.28

8

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.28

9

O-RING (6.9X1.5) This part replaces 91302-044-010.

91302-044-013

Unavailable

9

O-RING (6.9X1.5)

91302-044-013

Unavailable

10

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

10

SCREW, PAN (6X35)

93500-06035-0A

$1.49

11

PIN A, DOWEL (14X20)

94301-14200

$2.28

12

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

12

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

13

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

13

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
