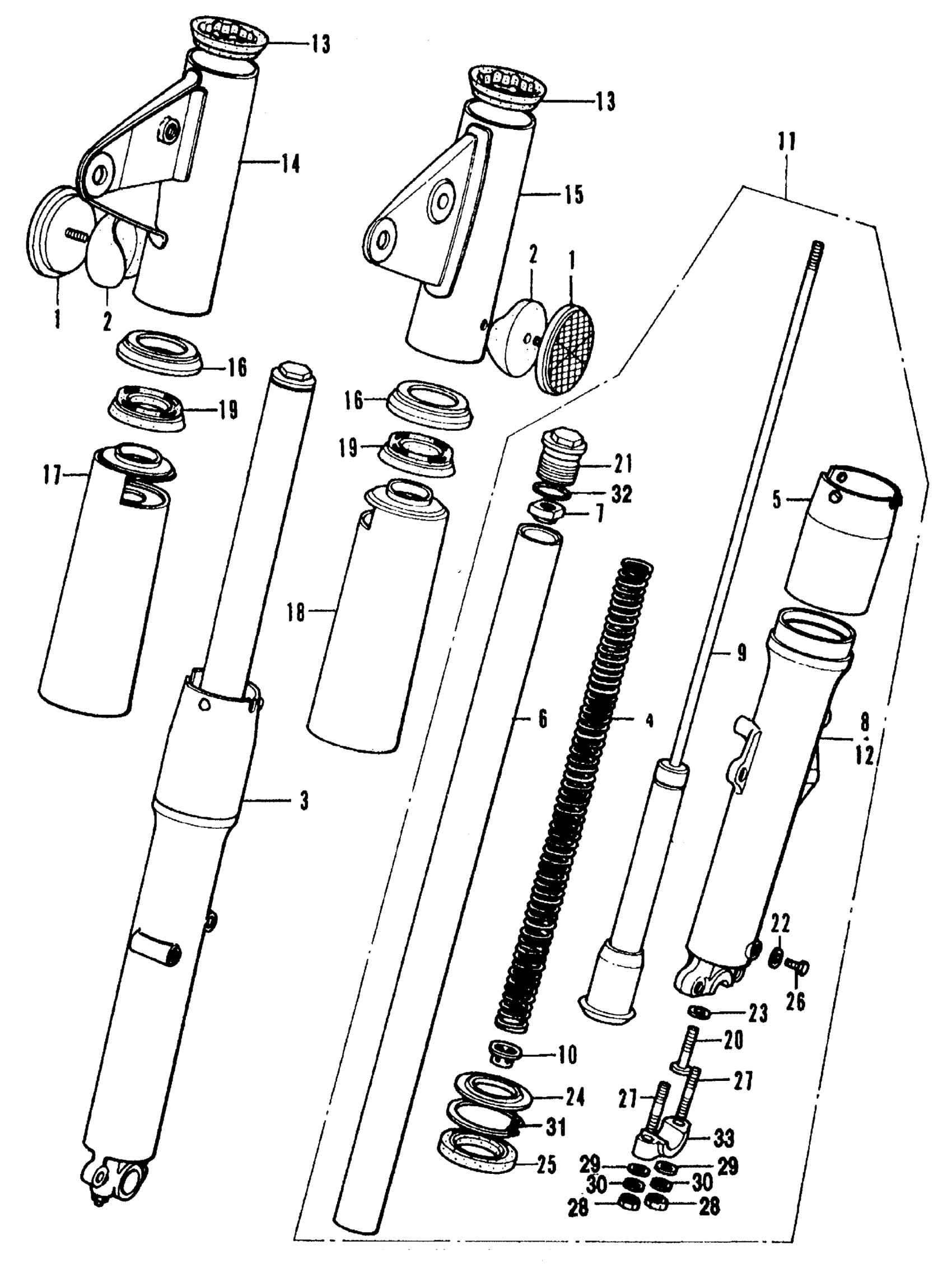

Honda CB350FA MOTORCYCLE, JPN, VIN# CB350F-1000001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

BASE, FR. REFLEX REFLECTOR

33743-341-670

Unavailable

3

FORK ASSY., R. FR.

51400-333-000

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-333-000

Unavailable

5

COVER, CASE (LOWER) (NOT AVAILABLE)

51402-333-000

Unavailable

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-317-700

Unavailable

7

NUT, LOCK (NOT AVAILABLE)

51413-317-700

Unavailable

8

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51421-333-000

Unavailable

9

DAMPER

51430-333-000

Unavailable

10

SEAT, RR. RUBBER SPRING (NOT AVAILABLE)

51461-317-701

Unavailable

11

FORK ASSY., L. FR.

51500-333-000

Unavailable

12

CASE, L. FR. FORK (LOWER)

51521-333-000

Unavailable

13

RUBBER A, FORK COVER (NOT AVAILABLE)

51601-317-700

Unavailable

14

COVER, R. FR. FORK (UPPER) *G5WC* (CANDY BACCHUS OLIVE CUSTOM)

51602-333-000LY

Unavailable

14

COVER, R. FR. FORK (UPPER) *R4CF* (FLAKE MATADOR RED) (NOT AVAILABLE)

51602-333-000PJ

Unavailable

15

COVER, L. FR. FORK (UPPER) *G5WC* (CANDY BACCHUS OLIVE CUSTOM) (NOT AVAILABLE)

51606-333-000LY

Unavailable

15

COVER, L. FR. FORK (UPPER) *R4CF* (FLAKE MATADOR RED) (NOT AVAILABLE)

51606-333-000PJ

Unavailable

16

RIB, FR. FORK (NOT AVAILABLE)

51608-286-010

Unavailable

17

COVER, R. FR. FORK (LOWER) *G5WC* (CANDY BACCHUS OLIVE CUSTOM)

51611-344-670LY

Unavailable

17

COVER, R. FR. FORK (LOWER) *R4CF* (FLAKE MATADOR RED) (NOT AVAILABLE)

51611-344-670PJ

Unavailable

18

COVER, L. FR. FORK (LOWER) *G5WC* (CANDY BACCHUS OLIVE CUSTOM) (NOT AVAILABLE)

51612-333-000LY

Unavailable

18

COVER, L. FR. FORK (LOWER) *R4CF* (FLAKE MATADOR RED) (NOT AVAILABLE)

51612-333-000PJ

Unavailable

19

RUBBER B, FR. FORK COVER (NOT AVAILABLE)

51622-286-010

Unavailable

20

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

20

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

21

BOLT, FR. FORK (NOT AVAILABLE)

90123-317-700

Unavailable

22

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

23

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

24

DUST SEAL (33X47X10) (NOT AVAILABLE)

91254-333-010

Unavailable

25

OIL SEAL (33X46X10.2)

91255-312-003

$16.36

26

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

26

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

26

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

27

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

27

BOLT, STUD (8X50) This part replaces 92700-08050-30.

92900-08028-3B

$1.59

27

BOLT, STUD (8X50)

92900-08028-3B

$1.59

28

NUT, HEX. (8MM)

94030-08000

$1.49

29

WASHER, PLAIN (8MM)

94101-08000

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

CIRCLIP (INNER) (47MM) (NOT AVAILABLE)

94521-47000

$2.39

32

O-RING (23X2.4)

94608-30000

$1.49

33

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
