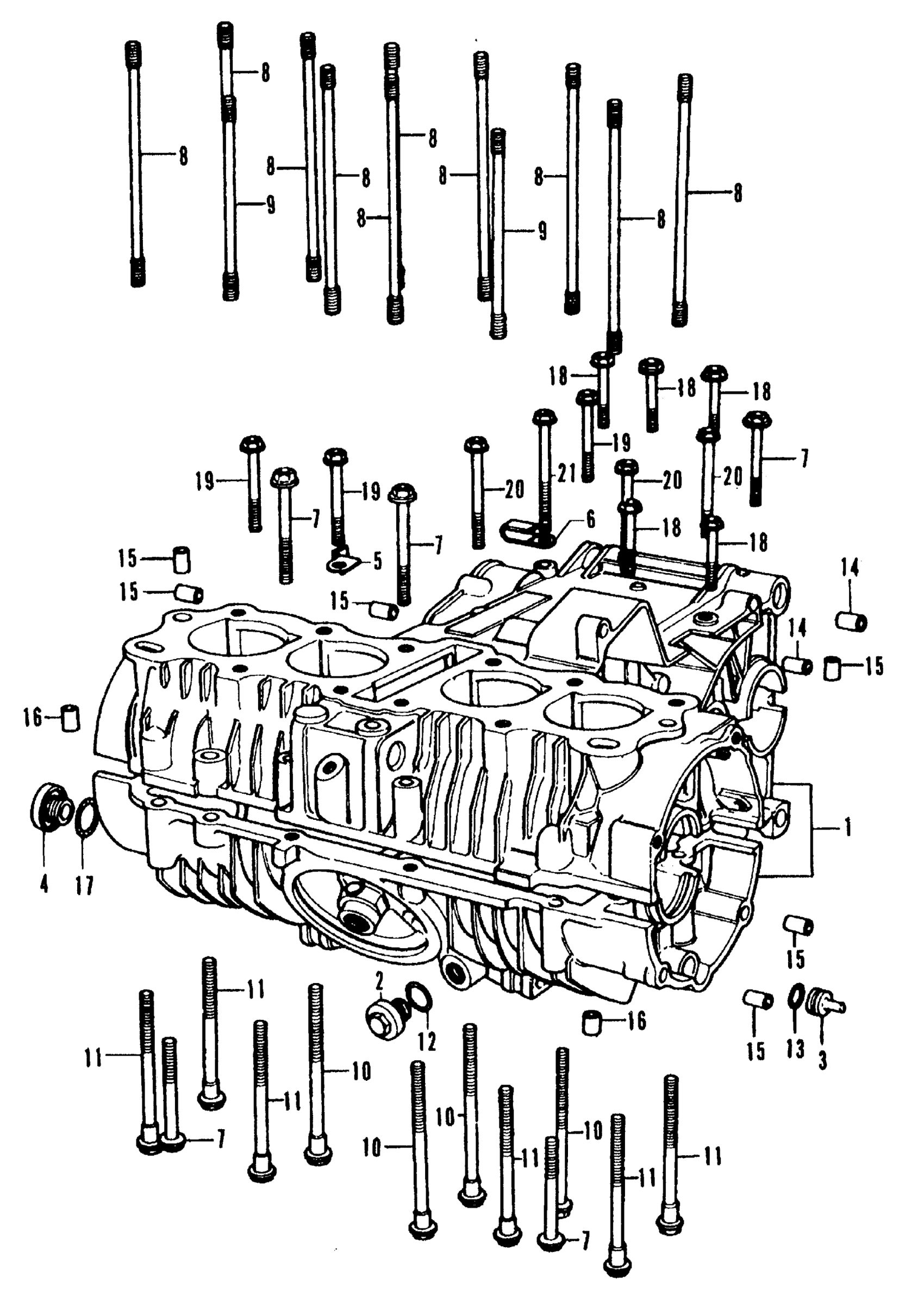

Honda CB350FA MOTORCYCLE, JPN, VIN# CB350F-1000001 CRANKCASE Diagram

CRANKCASE SET (NOT AVAILABLE)

11000-333-305

Unavailable

CAP, OIL PASSAGE (NOT AVAILABLE)

11208-333-000

Unavailable

PLUG, OIL PASSAGE (NOT AVAILABLE)

11291-333-000

Unavailable

CAP, OIL PASSAGE | Use up to Engine SN 1069188

15331-300-000

Unavailable

CAP B, OIL PASSAGE (NOT AVAILABLE) | Use from Engine SN 1069189

15332-300-000

Unavailable

CLAMP A, CABLE (NOT AVAILABLE) This part replaces 32111-333-000.

32117-371-000

Unavailable

CLAMP B, WIRE (NOT AVAILABLE)

32112-333-000

Unavailable

BOLT, FLANGE (8X60) (NOT AVAILABLE)

90017-333-000

Unavailable

STUD A, CYLINDER (8X154) (NOT AVAILABLE)

90031-333-000

Unavailable

STUD B, CYLINDER (8X122) (NOT AVAILABLE)

90032-333-000

Unavailable

BOLT, UBS (8X114) (NOT AVAILABLE) | Use from Engine SN 1055176

90045-329-000

Unavailable

BOLT, UBS (8X114) (NOT AVAILABLE) | Use up to Engine SN 1055175 This part replaces 90082-333-000.

90045-329-000

Unavailable

BOLT, UBS (8X97) (NOT AVAILABLE)

90086-333-000

Unavailable

O-RING (16.6X2.4) This part replaces 91314-220-000.

91315-PY3-000

$9.36

O-RING (16.6X2.4)

91315-PY3-000

$9.36

O-RING (13X2.5)

91319-300-000

$5.07

PIN A, DOWEL (8X10)

94301-08100

$2.25

PIN A, DOWEL (8X14)

94301-08140

$2.25

PIN A, DOWEL (10X14)

94301-10140

$2.28

O-RING (19.4X2.8)

94608-40000

$1.49

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

BOLT, FLANGE (6X100) This part replaces 95700-06100-00.

95701-06100-00

$2.79

BOLT, FLANGE (6X100)

95701-06100-00

$2.79
