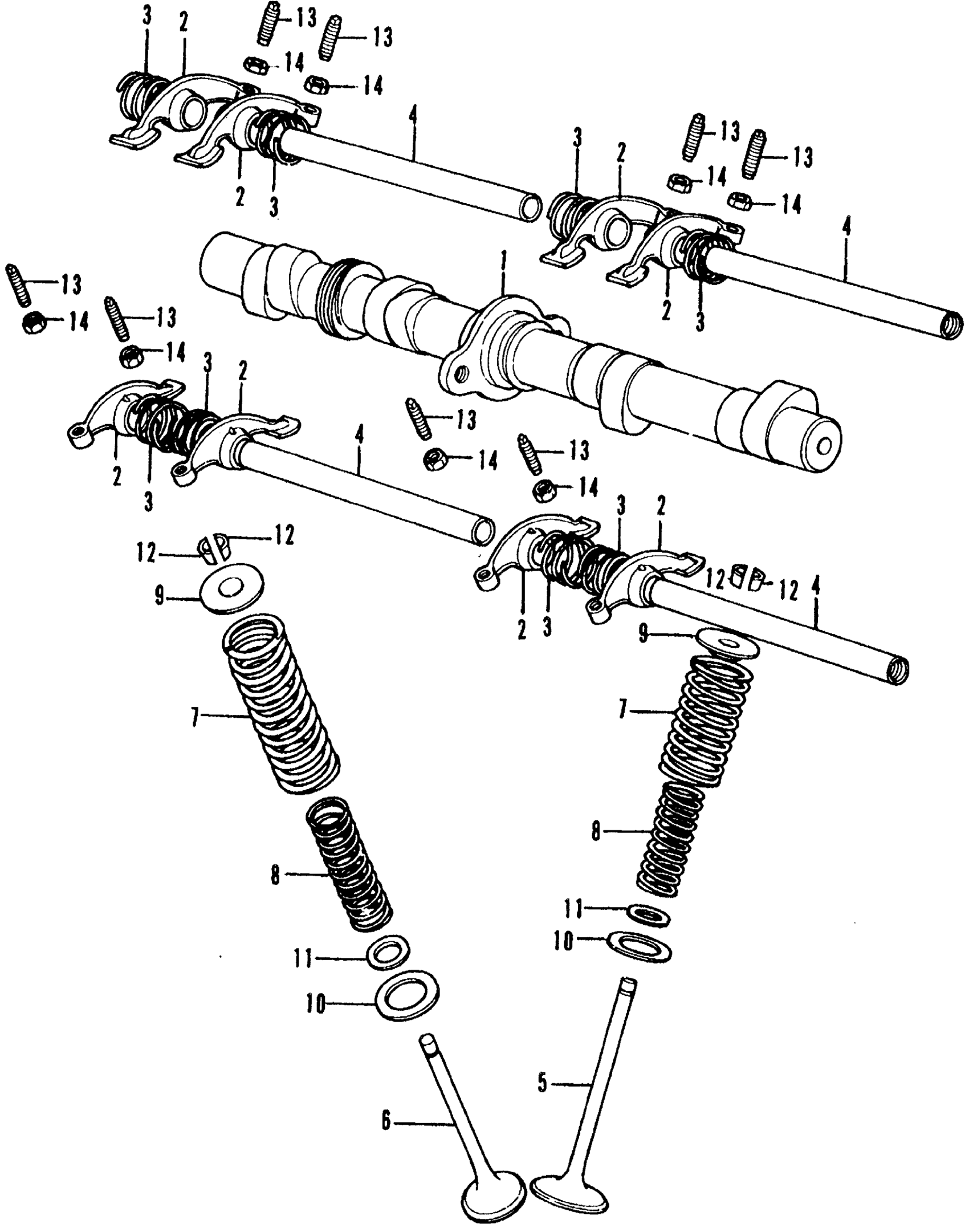

Honda CB350FA MOTORCYCLE, JPN, VIN# CB350F-1000001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

CAMSHAFT (NOT AVAILABLE)

14101-333-020

Unavailable

2

ARM, VALVE ROCKER (NOT AVAILABLE)

14431-333-000

Unavailable

3

SPRING, ROCKER ARM SIDE

14435-333-000

Unavailable

4

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14451-333-000

Unavailable

5

VALVE, IN.

14711-333-000

Unavailable

6

VALVE, EX.

14721-333-000

Unavailable

7

SPRING, VALVE (OUTER) (NOT AVAILABLE) | Use up to Engine SN 1034531 This part replaces 14751-333-000.

14751-333-010

Unavailable

7

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-333-010

Unavailable

8

SPRING, VALVE (INNER) (NOT AVAILABLE) | Use up to Engine SN 1034531 This part replaces 14761-333-000.

14761-333-010

Unavailable

8

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-333-010

Unavailable

9

RETAINER, VALVE SPRING

14771-107-020

$7.99

10

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

11

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.20

12

COTTER, VALVE (SANKO)

14781-107-003

$2.55

12

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

13

SCREW, TAPPET ADJ.

90012-333-000

$2.75

14

NUT, TAPPET ADJ.

90206-001-000

$1.66
