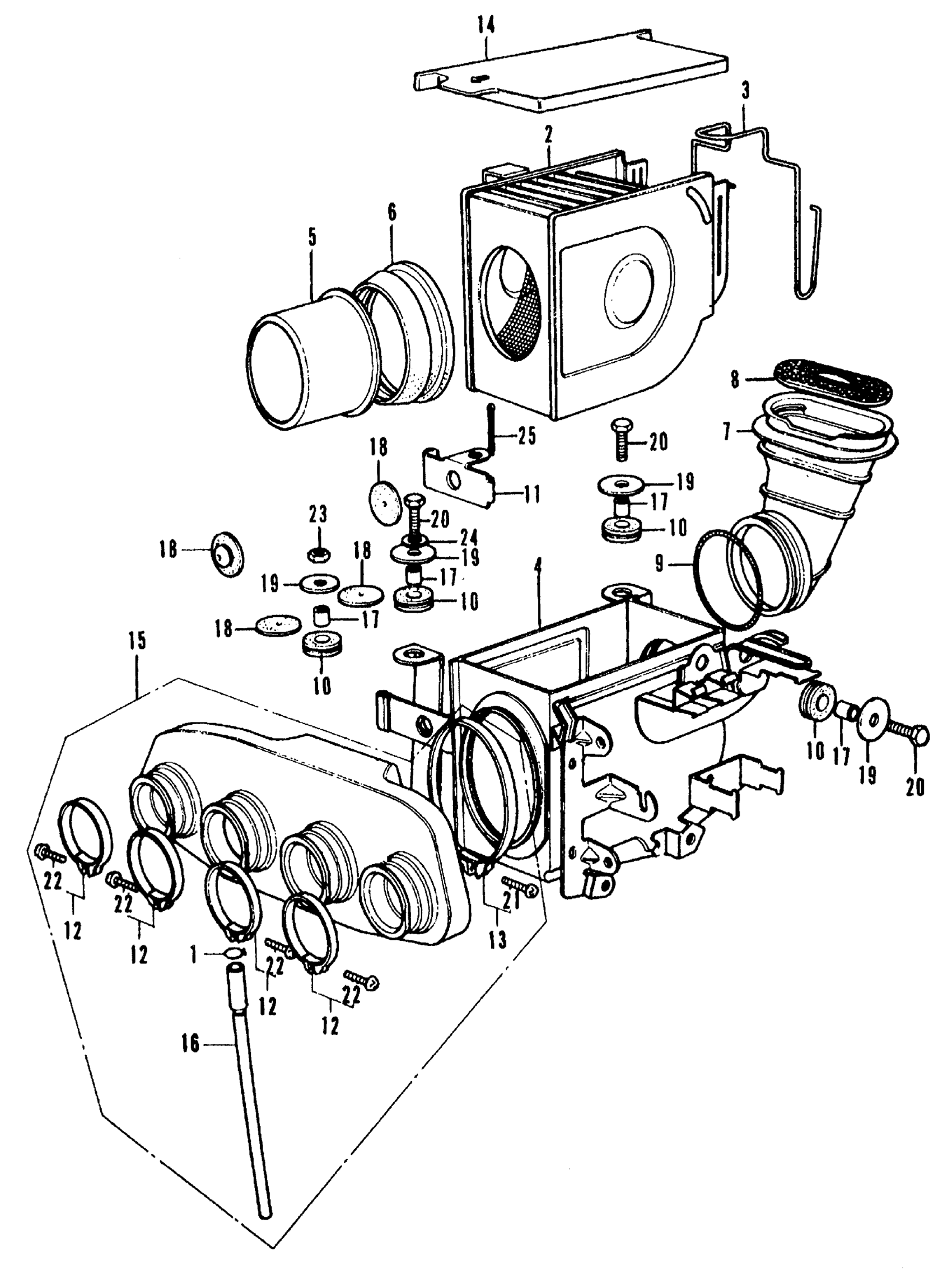

Honda CB350FA MOTORCYCLE, JPN, VIN# CB350F-1000001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

ELEMENT, AIR CLEANER | Use up to Frame SN 1055093 This part replaces 17210-333-015.

17210-333-610

Unavailable

2

ELEMENT, AIR CLEANER | Use up to Frame SN 1055093

17210-333-610

Unavailable

2

ELEMENT, AIR CLEANER

17210-333-610

Unavailable

3

SPRING, AIR CLEANER ELEMENT

17216-333-010

Unavailable

4

HOUSING, AIR CLEANER (NOT AVAILABLE) | Use up to Frame SN 1055093 This part replaces 17230-333-010.

17230-333-610

Unavailable

4

HOUSING, AIR CLEANER (NOT AVAILABLE) | Use from Frame SN 1055094

17230-333-610

Unavailable

5

GUIDE, AIR DUCT (NOT AVAILABLE)

17235-333-000

Unavailable

6

SEAL, AIR CLEANER ELEMENT (NOT AVAILABLE)

17236-333-000

Unavailable

7

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17240-333-000

Unavailable

8

NET, AIR IN. (NOT AVAILABLE)

17241-333-000

Unavailable

9

BAND, AIR CLEAENR IN. (NOT AVAILABLE)

17242-333-000

Unavailable

10

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

11

PLATE, BATTERY HINGE (NOT AVAILABLE)

17252-333-000

Unavailable

12

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 17255-166-000.

95018-42250

$7.72

12

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 17255-333-000.

95018-42250

$7.72

12

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 17256-KG8-900.

95018-42250

$7.72

12

BAND, AIR CLEANER CONNECTING TUBE (42) This part replaces 90652-GHB-640.

95018-42250

$7.72

12

BAND, AIR CLEANER CONNECTING TUBE (42)

95018-42250

$7.72

13

BAND, AIR CLEANER CONNECTING TUBE This part replaces 17256-333-000.

17256-333-405

Unavailable

13

BAND, AIR CLEANER CONNECTING TUBE

17256-333-405

Unavailable

14

LID, AIR CLEANER HOUSING (NOT AVAILABLE)

17260-333-000

Unavailable

15

CHAMBER ASSY., AIR CLEANER (NOT AVAILABLE)

17300-333-000

Unavailable

16

TUBE ASSY., BREATHER

17335-323-000

Unavailable

17

COLLAR, RR. TURN SIGNAL STAY

33603-053-650

$1.64

18

RUBBER, BATTERY BOX

83618-323-000

$2.47

19

WASHER, SEAT | Use up to Frame SN 1055093

90501-040-000

Unavailable

19

WASHER, FLAT (20MM) | Use from Frame SN 1055094 This part replaces 90506-500-000.

91412-538-000

Unavailable

19

WASHER, FLAT (20MM) | Use from Frame SN 1055094 This part replaces 91412-500-000.

91412-538-000

Unavailable

19

WASHER, FLAT (20MM) | Use from Frame SN 1055094

91412-538-000

Unavailable

20

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

20

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

21

SCREW, PAN (5X16)

93500-05016-0A

$1.49

22

SCREW, PAN (5X20)

93500-05020-0A

$1.49

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

PIN, COTTER (3.0X45)

94201-30450

$1.49
