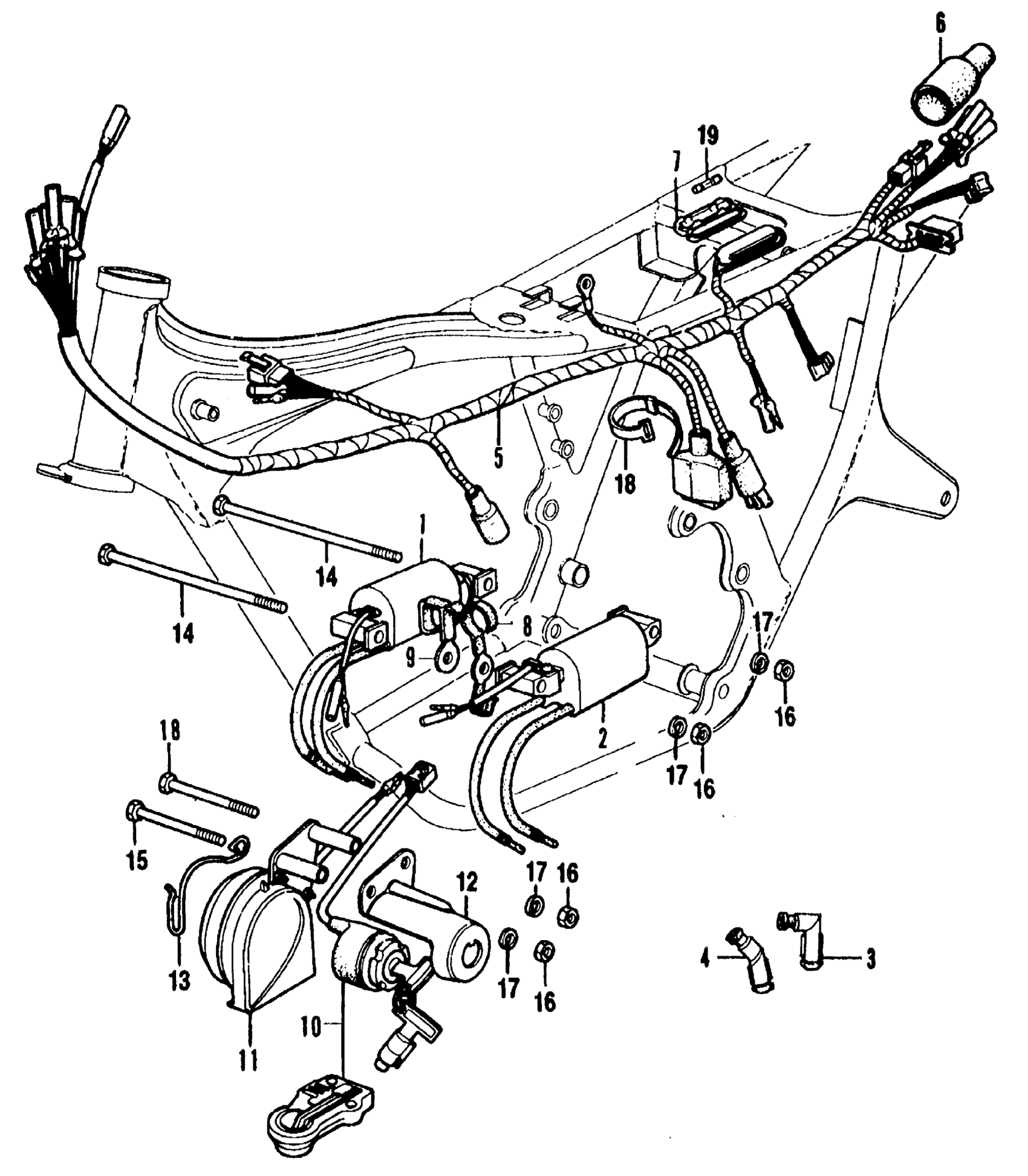

Honda CB350F1A MOTORCYCLE, JPN, VIN# CB350F-2000001 WIRE HARNESS Diagram

#

Description
Price

1

COIL ASSY., R. IGNITION

30510-333-013

Unavailable

2

COIL ASSY., L. IGNITION

30520-333-013

Unavailable

3

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$19.81

3

CAP ASSY. This part replaces 30700-300-010.

30700-GAR-003

$19.81

3

CAP ASSY. This part replaces 30700-405-153.

30700-GAR-003

$19.81

3

CAP ASSY. This part replaces 30700-405-163.

30700-GAR-003

$19.81

4

CAP ASSY., NOISE SUPPRESSOR

30700-MC8-000

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-153.

30700-MC8-000

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-163.

30700-MC8-000

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30701-323-013.

30700-MC8-000

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30701-323-023.

30700-MC8-000

Unavailable

5

WIRE HARNESS (NOT AVAILABLE)

32100-333-000

Unavailable

6

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

7

CASE, FUSE (NOT AVAILABLE)

32120-323-000

Unavailable

8

CLIP, WIRE HARNESS (NOT AVAILABLE)

32165-333-000

Unavailable

9

CLIP, CONNECTOR (NOT AVAILABLE)

32166-333-000

Unavailable

10

SWITCH KIT, MAIN This part replaces 35010-341-702.

35010-374-671

$172.93

10

SWITCH KIT, MAIN This part replaces 35010-374-670.

35010-374-671

$172.93

10

SWITCH KIT, MAIN

35010-374-671

$172.93

10

SWITCH KIT, MAIN This part replaces 35011-369-740.

35010-374-671

$172.93

10

SWITCH KIT, MAIN This part replaces 35020-323-672.

35010-374-671

$172.93

10

SWITCH KIT, MAIN This part replaces 35020-341-700.

35010-374-671

$172.93

10

SWITCH KIT, MAIN This part replaces 35020-341-701.

35010-374-671

$172.93

11

HORN ASSY. (MITSUBA) (NOT AVAILABLE)

38100-333-003

Unavailable

12

BRACKET, MAIN SWITCH (NOT AVAILABLE)

50375-333-010

Unavailable

13

CLAMP, TACHOMETER CABLE (NOT AVAILABLE)

50462-333-000

Unavailable

14

BOLT, HEX. (6X130) (NOT AVAILABLE)

90167-333-000

Unavailable

15

BOLT, HEX. (6X65) This part replaces 92000-06065.

92101-06065-0A

Unavailable

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

BAND B2, CABLE HARNESS

95014-62200

$2.11

19

FUSE A (15A)

98200-11500

$1.49
