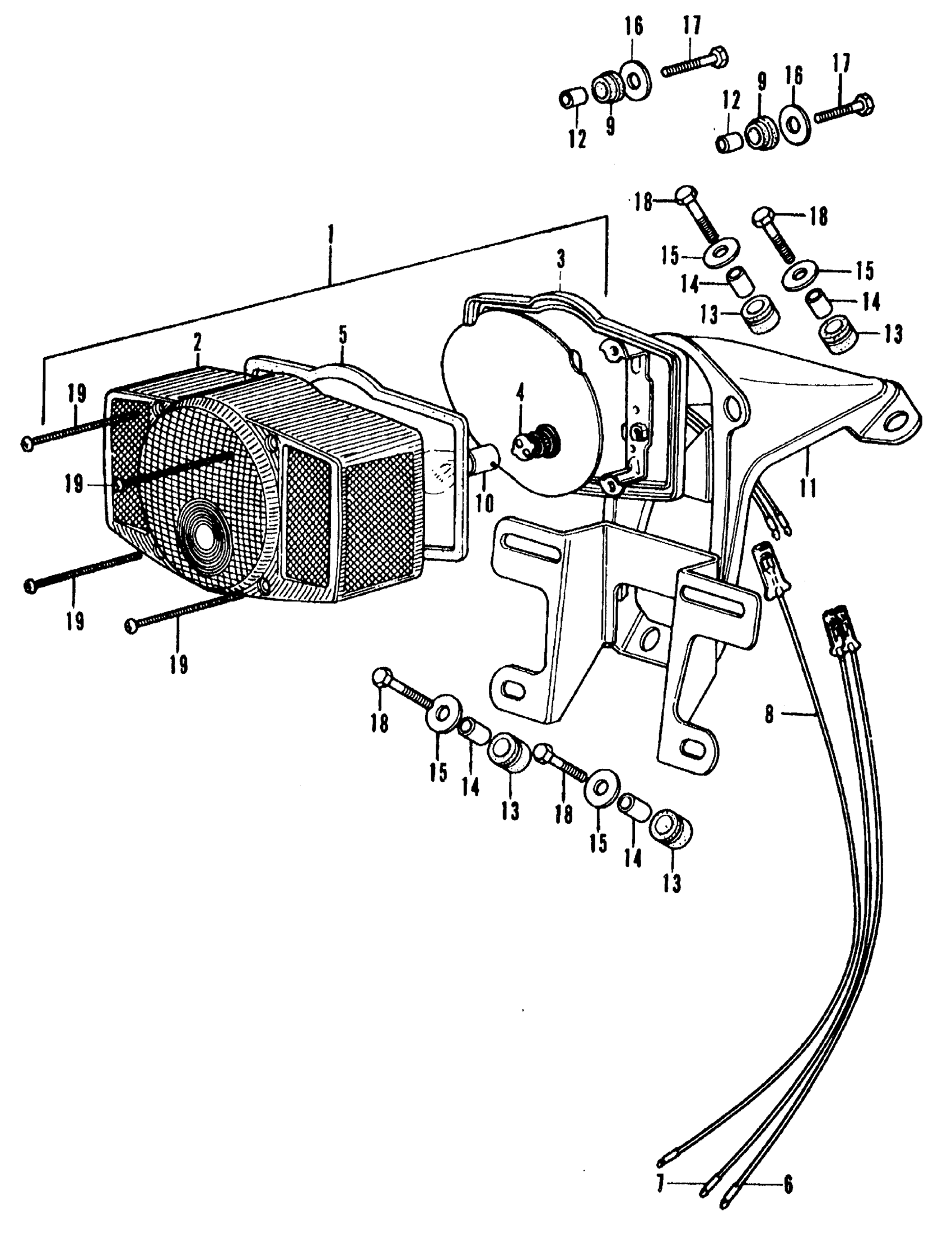

Honda CB350F1A MOTORCYCLE, JPN, VIN# CB350F-2000001 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-342-671

Unavailable

2

LENS, TAILLIGHT

33702-341-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-342-671

Unavailable

4

WIRE, TAILLIGHT

33708-098-000

Unavailable

4

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

5

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

6

SUB-WIRE, STOP LIGHT (NOT AVAILABLE)

33710-333-000

Unavailable

7

CABLE, TAILLIGHT SUB (NOT AVAILABLE)

33711-333-000

Unavailable

8

CABLE, TAILLIGHT GROUND (STANLEY) (NOT AVAILABLE)

33712-300-003

Unavailable

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

10

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

11

BRACKET, NUMBER PLATE *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

84701-341-670XW

Unavailable

12

COLLAR, TAILLIGHT UNIT

84706-342-000

Unavailable

13

RUBBER, FENDER

84905-333-000

$4.22

14

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

15

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

16

WASHER (20MM)

90581-310-000

$1.90

16

WASHER (20MM) This part replaces 90581-342-000.

90581-310-000

$1.90

17

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

17

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

17

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

18

BOLT, HEX. (6X25) This part replaces 92000-06025-02.

92101-06025-0B

$2.28

18

BOLT, HEX. (6X25)

92101-06025-0B

$2.28

19

SCREW, PAN (4X55)

93500-04055-0B

$1.49
