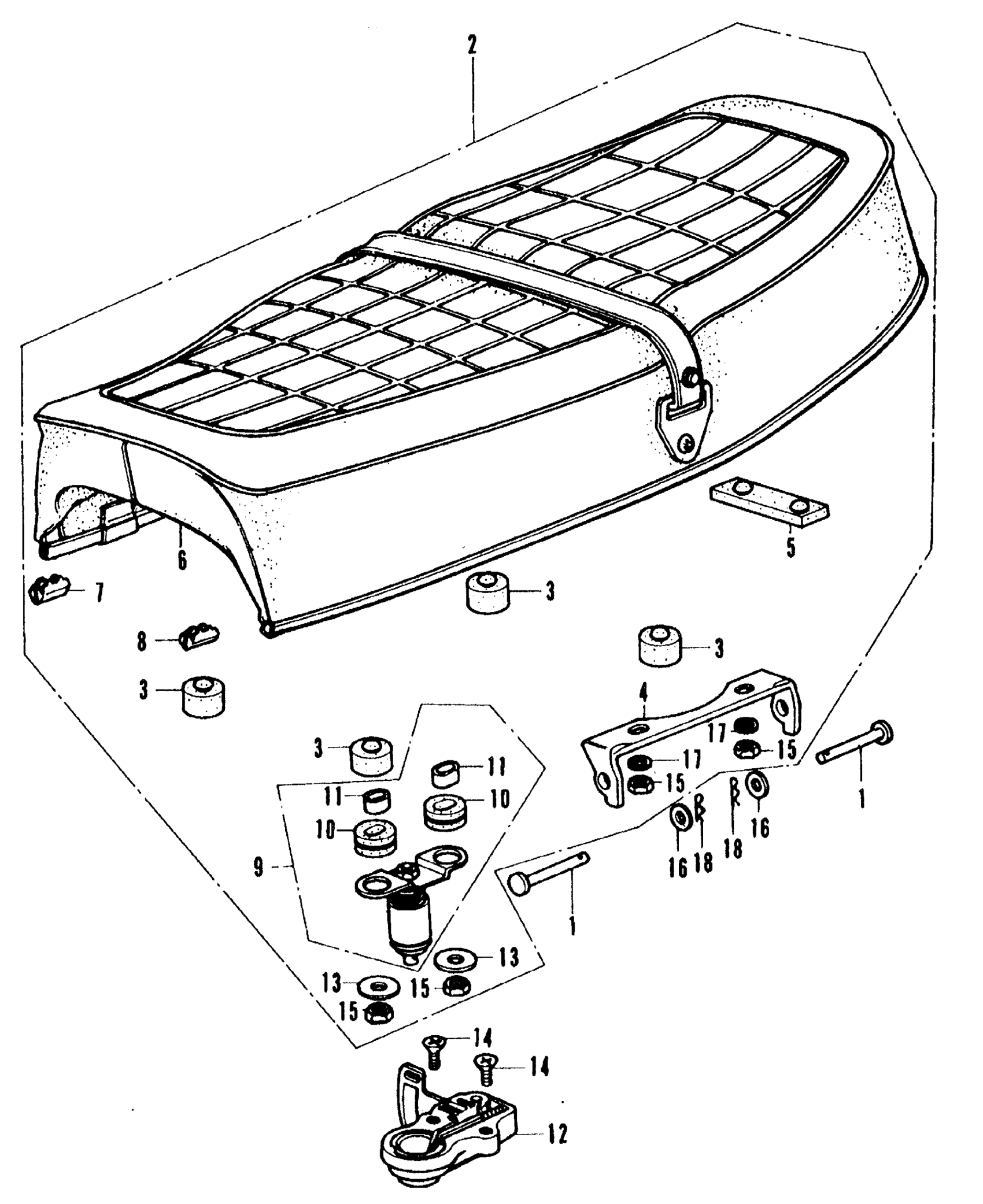

Honda CB350F1A MOTORCYCLE, JPN, VIN# CB350F-2000001 SEAT Diagram

#

Description
Price

1

BAR, SEAT HINGE

77103-313-000

Unavailable

2

SEAT ASSY. *NH1L* (BLACK) (NOT AVAILABLE)

77200-333-000A

Unavailable

3

RUBBER, SEAT CUSHION

77201-074-000

$3.82

4

HINGE, SEAT (NOT AVAILABLE)

77201-333-000

Unavailable

5

RUBBER, SEAT SETTING

77204-312-000

$4.70

6

COVER, SEAT (NOT AVAILABLE)

77210-333-810

Unavailable

7

GARNISH, R. SEAT MOLDING (NOT AVAILABLE)

77211-323-300

Unavailable

8

GARNISH, L. SEAT MOLDING (NOT AVAILABLE)

77212-323-300

Unavailable

9

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

9

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

9

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

10

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$3.95

10

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$3.95

10

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$3.95

11

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.80

11

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.80

11

COLLAR, SEAT LOCK BAR

77229-340-003

$2.80

12

LOCK ASSY., SEAT (HONDALOCK)

77230-107-711

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-347-003.

77230-107-711

Unavailable

13

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$0.71

13

WASHER, PLAIN (6MM)

94103-06800

$0.71

14

SCREW, FLAT (6X12)

93600-06012-0G

$0.97

14

SCREW, FLAT (6X12) This part replaces 93600-06012-07.

93600-06012-0G

$0.97

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

15

NUT, HEX. (6MM)

94001-06200-0S

$1.19

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM)

94101-06800

Unavailable

17

WASHER, SPRING (6MM)

94111-06000

$0.86

18

PIN, LOCK (6MM)

94251-06000

$0.94
