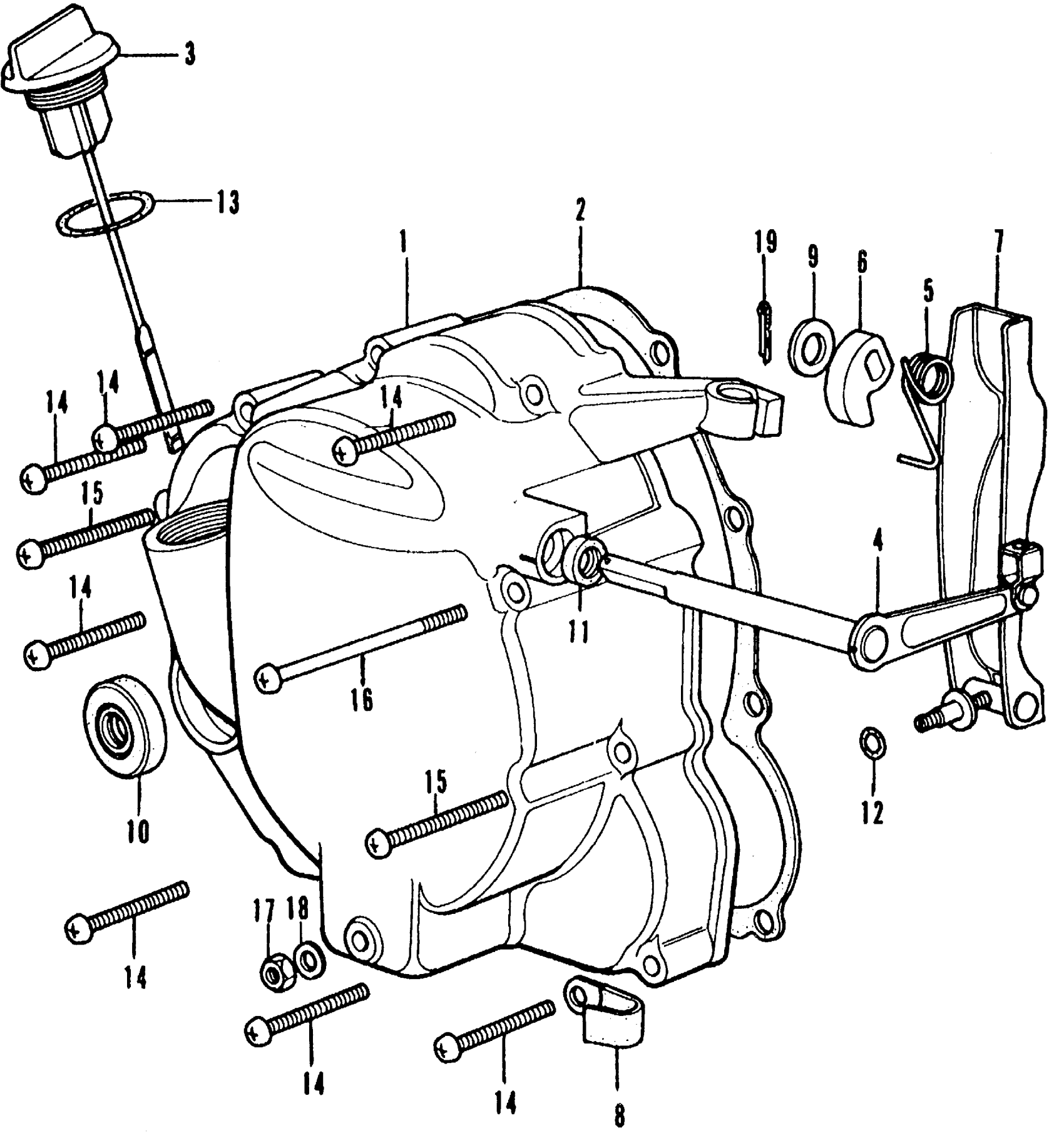

Honda CB350F1A MOTORCYCLE, JPN, VIN# CB350F-2000001 RIGHT CRANKCASE COVER + CLUTCH LEVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11331-333-030

Unavailable

2

GASKET, R. This part replaces 11394-333-020.

11394-333-306

Unavailable

3

DIPSTICK, OIL (NOT AVAILABLE)

15650-333-000

Unavailable

4

LEVER, CLUTCH

22810-333-030

Unavailable

5

SPRING, CLUTCH LEVER RETURN (NOT AVAILABLE)

22815-333-000

Unavailable

6

CAM, CLUTCH LIFTER

22821-107-000

Unavailable

7

LEVER, CLUTCH ADJ. (NOT AVAILABLE) This part replaces 22831-333-010.

22831-333-020

Unavailable

7

LEVER, CLUTCH ADJ. (NOT AVAILABLE)

22831-333-020

Unavailable

8

CLAMP B, WIRE (NOT AVAILABLE)

32112-333-000

Unavailable

9

WASHER (10MM) (NOT AVAILABLE)

90471-333-000

Unavailable

10

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.60

10

OIL SEAL (16X28X7) This part replaces 91204-259-000.

91204-259-003

$5.60

10

OIL SEAL (16X28X7)

91204-259-003

$5.60

10

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

11

OIL SEAL (10X16X4.5) This part replaces 91206-333-003.

91259-VM0-000

$4.22

11

OIL SEAL (10X16X4.5)

91259-VM0-000

$4.22

12

O-RING (6X2.2)

91301-704-000

$2.92

13

O-RING (23X2)

91354-371-000

$3.19

13

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$3.19

14

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

14

SCREW, PAN (6X40)

93500-06040-0A

$1.49

15

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

15

SCREW, PAN (6X55)

93500-06055-0A

$1.49

16

SCREW, PAN (6X90) (SOURCE: VINTAGE PARTS INC.)

93500-06090

Unavailable

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

PIN, COTTER (2.0X15)

94201-20150

$1.49
