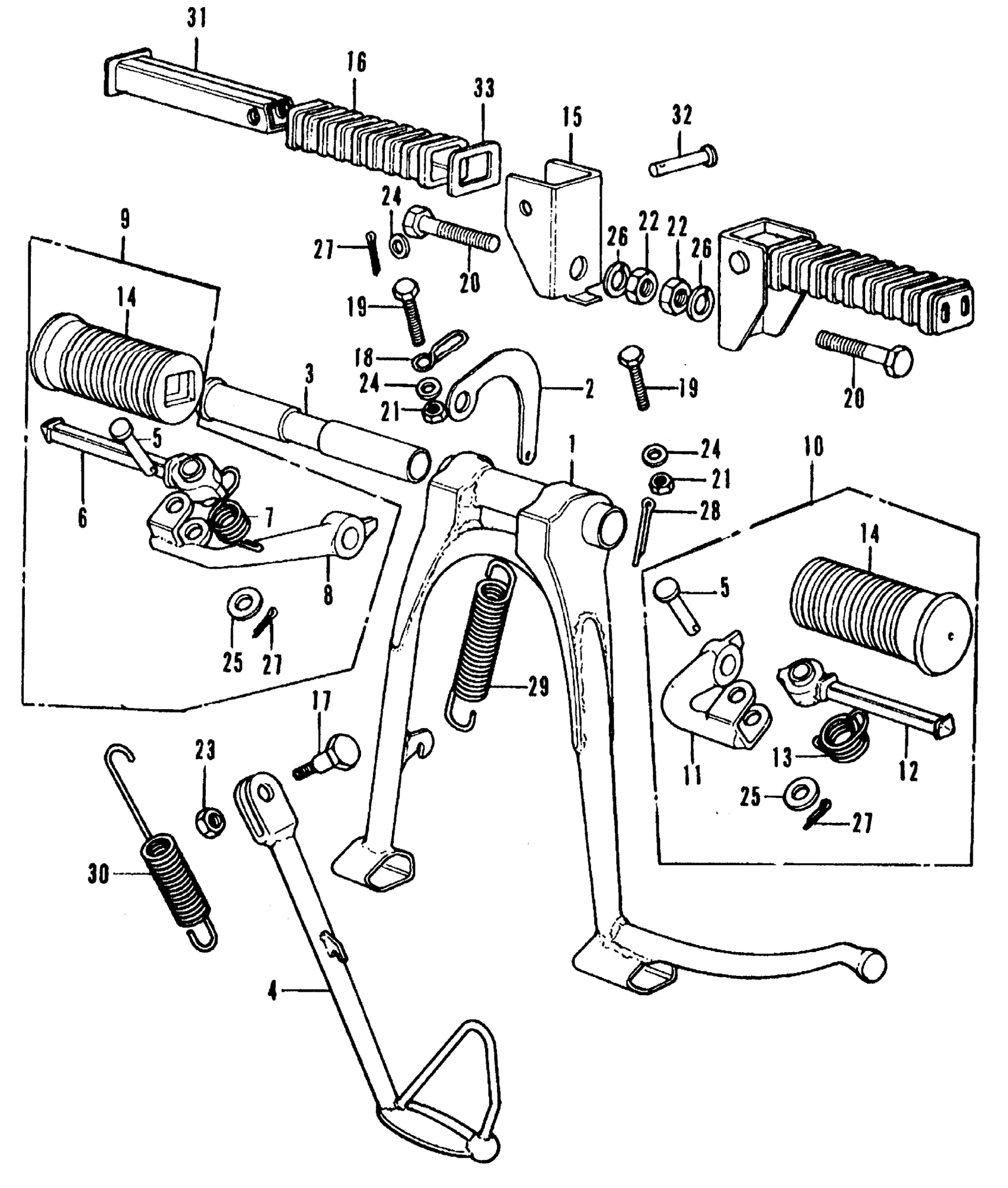

Honda CB350F1A MOTORCYCLE, JPN, VIN# CB350F-2000001 MAIN STAND + STEP Diagram

#

Description
Price

1

STAND, MAIN (NOT AVAILABLE)

50500-333-000

Unavailable

2

HOOK, MAIN STAND SPRING (NOT AVAILABLE)

50523-333-000

Unavailable

3

SHAFT, MAIN STAND PIVOT This part replaces 50526-286-000.

50526-399-000

Unavailable

3

SHAFT, MAIN STAND PIVOT

50526-399-000

Unavailable

4

BAR, SIDE STAND (NOT AVAILABLE)

50530-333-020

Unavailable

5

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

5

PIN, STEP BAR JOINT

50603-033-010

$3.30

6

ARM, R. STEP (NOT AVAILABLE)

50616-310-000

Unavailable

7

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

8

BAR, R. STEP (NOT AVAILABLE)

50618-333-670

Unavailable

9

STEP ASSY., R. (NOT AVAILABLE)

50630-333-670

Unavailable

10

STEP ASSY., L.

50640-333-670

Unavailable

11

BAR, L. STEP (NOT AVAILABLE)

50641-333-670

Unavailable

12

ARM, L. STEP (NOT AVAILABLE)

50642-310-000

Unavailable

13

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

14

RUBBER, STEP

50661-333-000

Unavailable

15

BRACKET 2, PILLION This part replaces 50713-333-000.

95015-72200

Unavailable

15

BRACKET 2, PILLION

95015-72200

Unavailable

16

RUBBER, PILLION STEP (NOT AVAILABLE)

50714-333-000

Unavailable

17

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

18

GUIDE, BATTERY BREATHER TUBE (NOT AVAILABLE)

90514-333-000

Unavailable

19

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

19

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

19

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

20

BOLT, HEX. (10X35) This part replaces 92000-10035-0A.

92101-10035-0A

Unavailable

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (10MM)

94001-10000-0S

$1.49

23

NUT, HEX. (10MM)

94030-10000

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (8MM)

94111-10000

$1.49

27

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

27

PIN, COTTER (1.6X25)

94201-16250

$1.49

28

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

28

PIN, COTTER (2.5MM)

94201-25300

$1.49

29

SPRING G, MAIN STAND This part replaces 95014-71701.

95014-71702

$4.08

29

SPRING G, MAIN STAND

95014-71702

$4.08

30

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

30

SPRING D, SIDE STAND

95014-72402

$2.92

31

BAR B, PILLION STEP

95015-62000

$30.68

32

PIN B, PILLION FOOTPEG

95015-82000

$2.41

33

WASHER, FOOTPEG

95015-91000

$1.31
