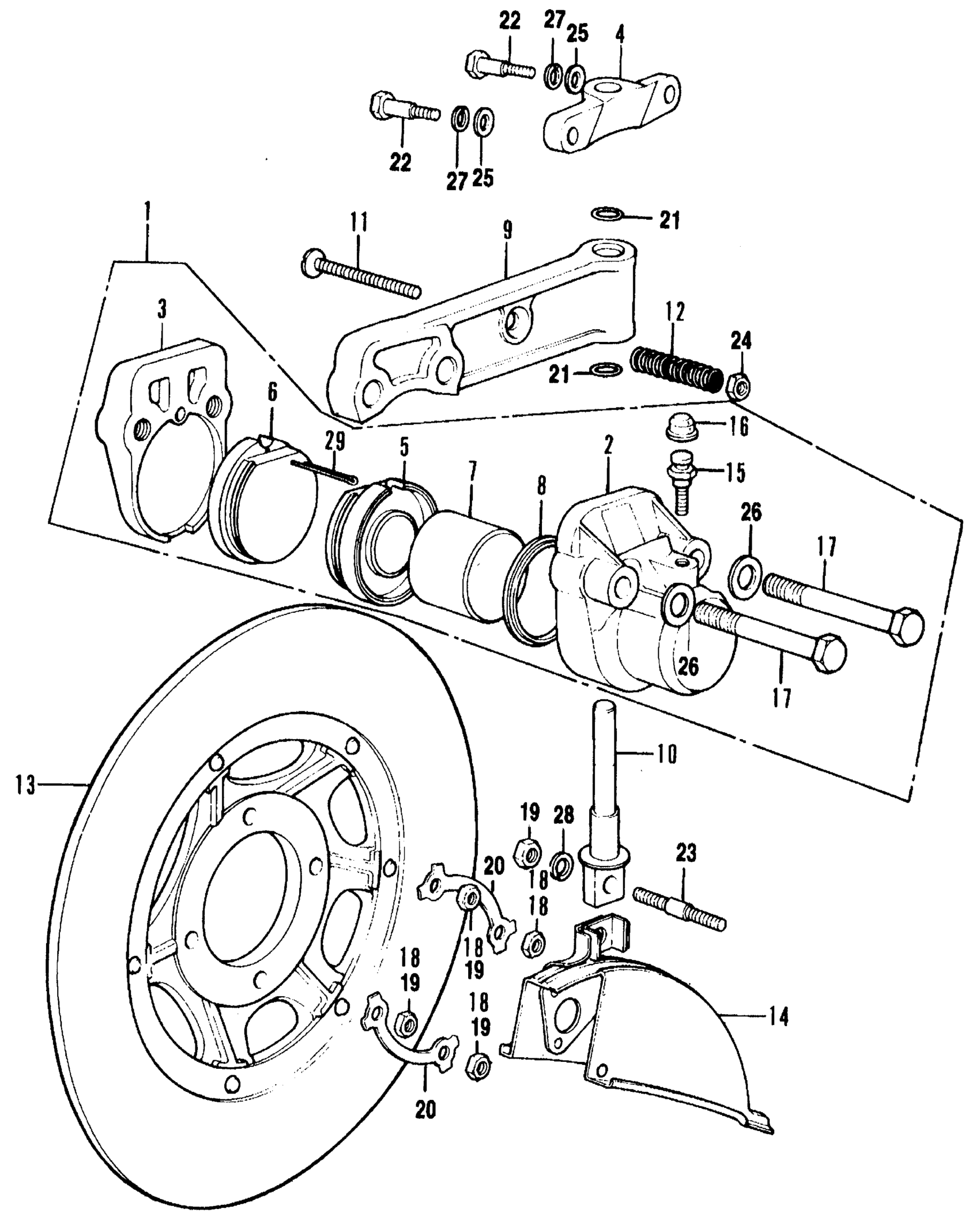

Honda CB350F1A MOTORCYCLE, JPN, VIN# CB350F-2000001 FRONT BRAKE CALIPER + DISC Diagram

#

Description
Price

1

CALIPER ASSY This part replaces 45100-323-043.

45100-390-405

Unavailable

1

CALIPER ASSY This part replaces 45100-323-053.

45100-390-405

Unavailable

1

CALIPER ASSY This part replaces 45100-390-003.

45100-390-405

Unavailable

2

CALIPER A (TOKIKO) (NOT AVAILABLE)

45101-323-013

Unavailable

3

CALIPER B (TOKIKO) (NOT AVAILABLE)

45102-323-003

Unavailable

4

JOINT, CALIPER HOLDER

45104-317-700

Unavailable

5

PAD A, A (ASAHI) This part replaces 45105-323-036.

45105-390-305

Unavailable

5

PAD A, A (ASAHI) This part replaces 45105-323-043.

45105-390-305

Unavailable

5

PAD A, A (ASAHI) This part replaces 45105-390-003.

45105-390-305

Unavailable

5

PAD A, A (ASAHI) This part replaces 45105-390-006.

45105-390-305

Unavailable

5

PAD A, A (ASAHI)

45105-390-305

Unavailable

6

PAD B, B (ASAHI) This part replaces 45106-323-006.

45106-390-305

Unavailable

6

PAD B, B (ASAHI) This part replaces 45106-323-013.

45106-390-305

Unavailable

6

PAD B, B (ASAHI) This part replaces 45106-390-003.

45106-390-305

Unavailable

6

PAD B, B (ASAHI) This part replaces 45106-390-006.

45106-390-305

Unavailable

6

PAD B, B (ASAHI)

45106-390-305

Unavailable

7

PISTON

45107-323-020

Unavailable

8

SEAL, PISTON (TOKIKO)

45108-300-003

$11.70

9

HOLDER, CALIPER (NOT AVAILABLE)

45115-323-010

Unavailable

10

PIN, CALIPER HOLDER This part replaces 45116-323-020.

45116-367-690

Unavailable

11

BOLT, CALIPER ADJUSTING This part replaces 45117-300-020.

45117-341-700

$5.85

11

BOLT, CALIPER ADJUSTING

45117-341-700

$5.85

12

SPRING, CALIPER ADJ. (NOT AVAILABLE)

45119-333-000

Unavailable

13

DISK, FR. BRAKE (NOT AVAILABLE)

45120-369-000

Unavailable

14

COVER, DISK

45140-333-000

Unavailable

15

VALVE, BLEEDER (TOKIKO)

45224-579-013

$16.77

16

CAP, BLEEDER SCREW (TOKIKO)

45225-579-013

Unavailable

17

BOLT, CALIPER SETTING

90165-323-000

$9.49

21

O-RING (9.5X1.7)

91259-333-000

$3.69

22

BOLT, HEX. (6X28) (NOT AVAILABLE)

92200-06028

Unavailable

23

BOLT, STUD (8X28) This part replaces 92700-08045.

92900-08028-0B

$2.16

23

BOLT, STUD (8X28) This part replaces 92700-08045-0B.

92900-08028-0B

$2.16

23

BOLT, STUD (8X28)

92900-08028-0B

$2.16

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (10MM)

94102-10000

$1.49

27

WASHER, SPRING (6MM)

94111-06000

$1.49

28

WASHER, SPRING (8MM)

94111-08000

$1.49

29

PIN, COTTER (1.6X22)

94201-16220

$1.49
