- CB350F1A MOTORCYCLE, JPN, VIN# CB350F-2000001
CYLINDER + PISTON

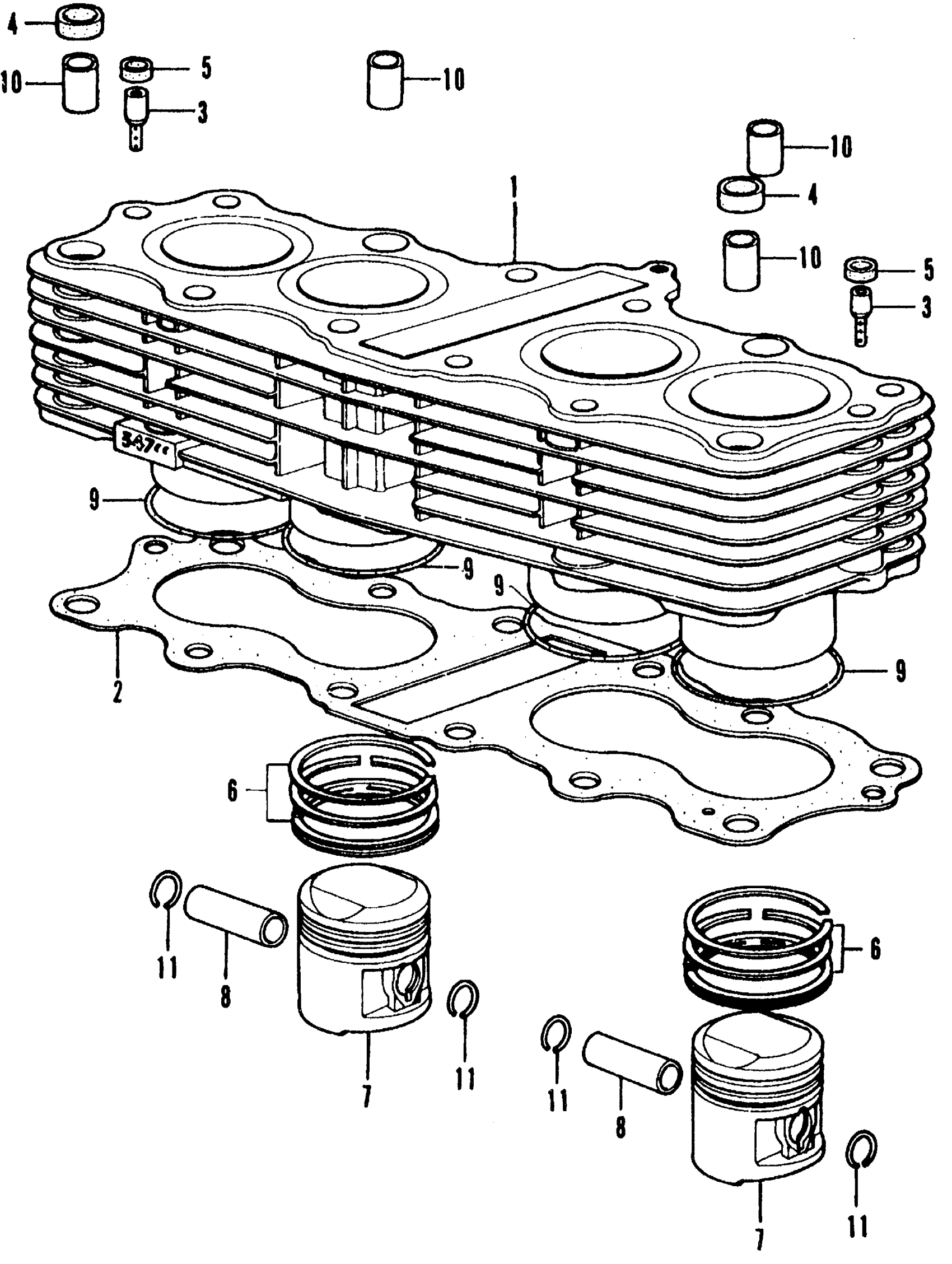

Honda CB350F1A MOTORCYCLE, JPN, VIN# CB350F-2000001 CYLINDER + PISTON Diagram
#
Description
Price
1
CYLINDER
12100-333-030
Unavailable
2
GASKET, CYLINDER This part replaces 12191-333-010.
12191-377-306
Unavailable
2
GASKET, CYLINDER This part replaces 12191-377-000.
12191-377-306
Unavailable
2
GASKET, CYLINDER
12191-377-306
Unavailable
3
VALVE, OIL CONTROL ORIFICE (NOT AVAILABLE)
12901-333-000
Unavailable
4
GASKET, CYLINDER HEAD This part replaces 12909-333-000.
12909-428-003
Unavailable
4
GASKET, CYLINDER HEAD
12909-428-003
Unavailable
5
GASKET, ORIFICE VALVE
12910-333-000
Unavailable
6
RING SET, PISTON (STD) (TEIKOKU) This part replaces 13011-333-003.
13011-333-005
Unavailable
6
RING SET, PISTON (STD) (TEIKOKU) This part replaces 13011-333-004.
13011-333-005
Unavailable
6
RING SET, PISTON (STD) (TEIKOKU)
13011-333-005
Unavailable
6
RING SET, PISTON (OS 0.25) (TEIKOKU) (NOT AVAILABLE) | (Optional).
13012-333-005
Unavailable
6
RING SET, PISTON (OS 0.50) (TEIKOKU) | (Optional).
13013-333-005
Unavailable
6
RING SET, PISTON (0.75) (TEIKOKU) | (Optional).
13014-333-005
Unavailable
6
RING SET, PISTON (1.00) (TEIKOKU) (NOT AVAILABLE) | (Optional).
13015-333-005
Unavailable
7
PISTON (STD)
13101-333-010
Unavailable
7
PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).
13102-333-010
Unavailable
7
PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).
13103-333-010
Unavailable
7
PISTON (0.75) (NOT AVAILABLE) | (Optional).
13104-333-010
Unavailable
7
PISTON (1.00) (NOT AVAILABLE) | (Optional).
13105-333-010
Unavailable
