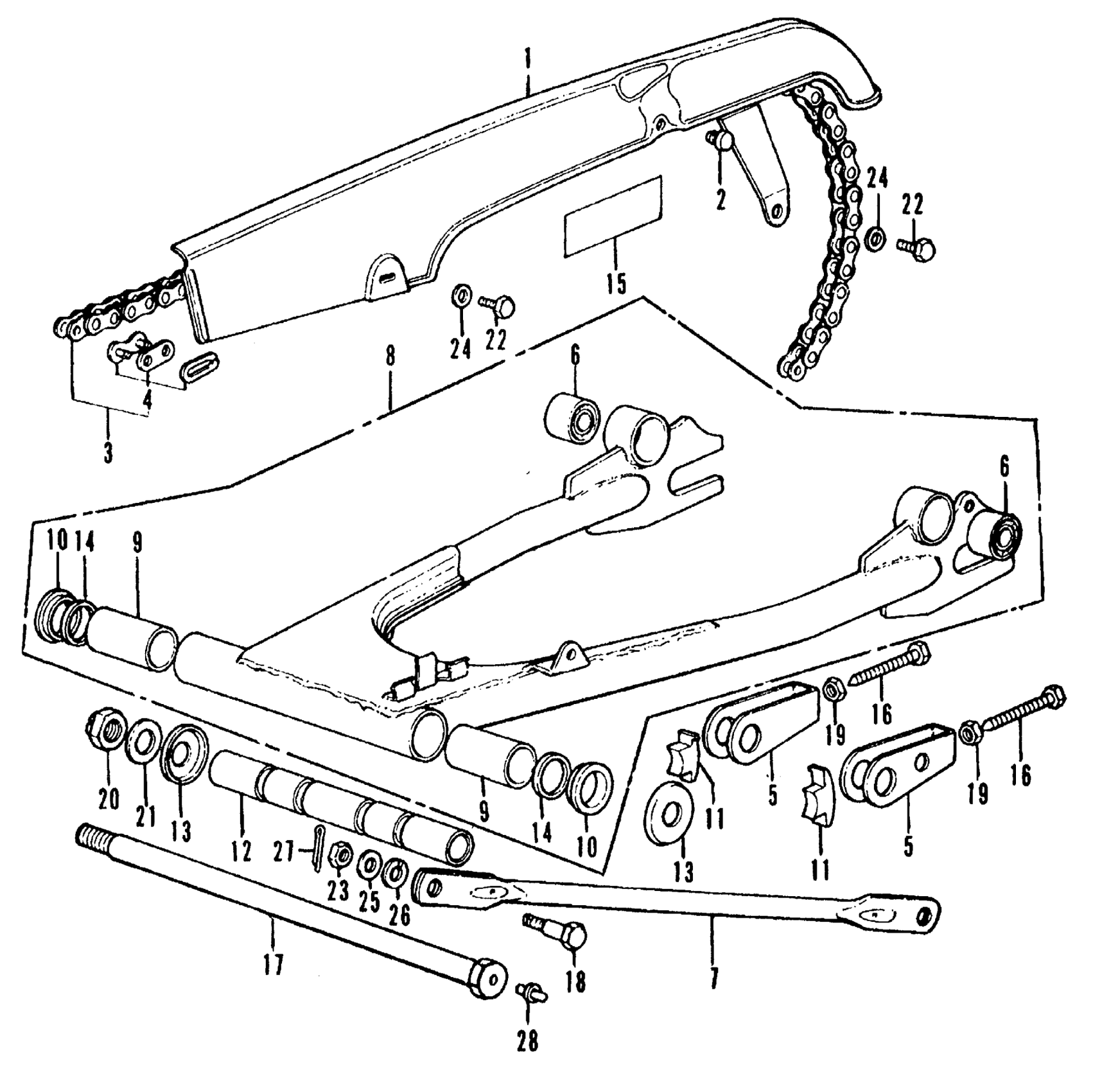

Honda CB350F1A MOTORCYCLE, JPN, VIN# CB350F-2000001 CHAIN CASE + SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-333-000

Unavailable

2

PLUG, CHAIN GUARD

40514-333-000

$2.57

3

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-333-003.

405W3-413-505

Unavailable

3

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-333-005.

405W3-413-505

Unavailable

4

MASTER LINK This part replaces 40531-333-003.

40531-413-951

Unavailable

4

MASTER LINK (RK50S) (TAKASAGO) (NOT AVAILABLE)

40531-333-005

Unavailable

4

MASTER LINK This part replaces 40531-413-003.

40531-413-951

Unavailable

4

MASTER LINK

40531-413-951

Unavailable

5

ADJUSTER, DRIVE CHAIN This part replaces 40543-312-010.

40543-471-000

Unavailable

5

ADJUSTER, DRIVE CHAIN

40543-471-000

Unavailable

6

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

7

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-333-000

Unavailable

8

SWINGARM, RR. *NH1* (BLACK)

52100-333-000B

Unavailable

9

BUSH, RR. SWINGARM PIVOT This part replaces 52108-292-300.

52108-300-300

Unavailable

9

BUSH, RR. SWINGARM PIVOT

52108-300-300

Unavailable

9

BUSH, RR. SWINGARM PIVOT This part replaces 52108-333-003.

52108-300-300

Unavailable

10

BUSH, SWINGARM PIVOT | Use from Frame SN 2002817

52108-457-300

Unavailable

10

BUSH, RR. SWINGARM PIVOT THRUST | Use up to Frame SN 2002816

52109-283-300

$14.64

11

STOPPER, CHAIN ADJUSTER (NOT AVAILABLE)

52136-333-000

Unavailable

12

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-333-000

Unavailable

13

CAP, DUST SEAL | Use up to Frame SN 2002816

52144-283-010

$4.66

13

CAP, DUST SEAL | Use from Frame SN 2002817

52144-362-000

Unavailable

14

RING, RR. SWINGARM FELT | Use up to Frame SN 2002816

52145-283-000

Unavailable

15

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

16

BOLT, CHAIN ADJUSTING

90119-283-000

$11.41

17

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-292-000

Unavailable

18

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

19

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

20

NUT, LOCK (14MM)

90354-268-000

$6.78

21

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

21

WASHER (14X26)

90527-634-670

Unavailable

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (8MM)

94111-10000

$1.49

27

PIN, COTTER (2.0X15)

94201-20150

$1.49

28

FITTING, GREASE (A.45)

96201-30001

$1.49
