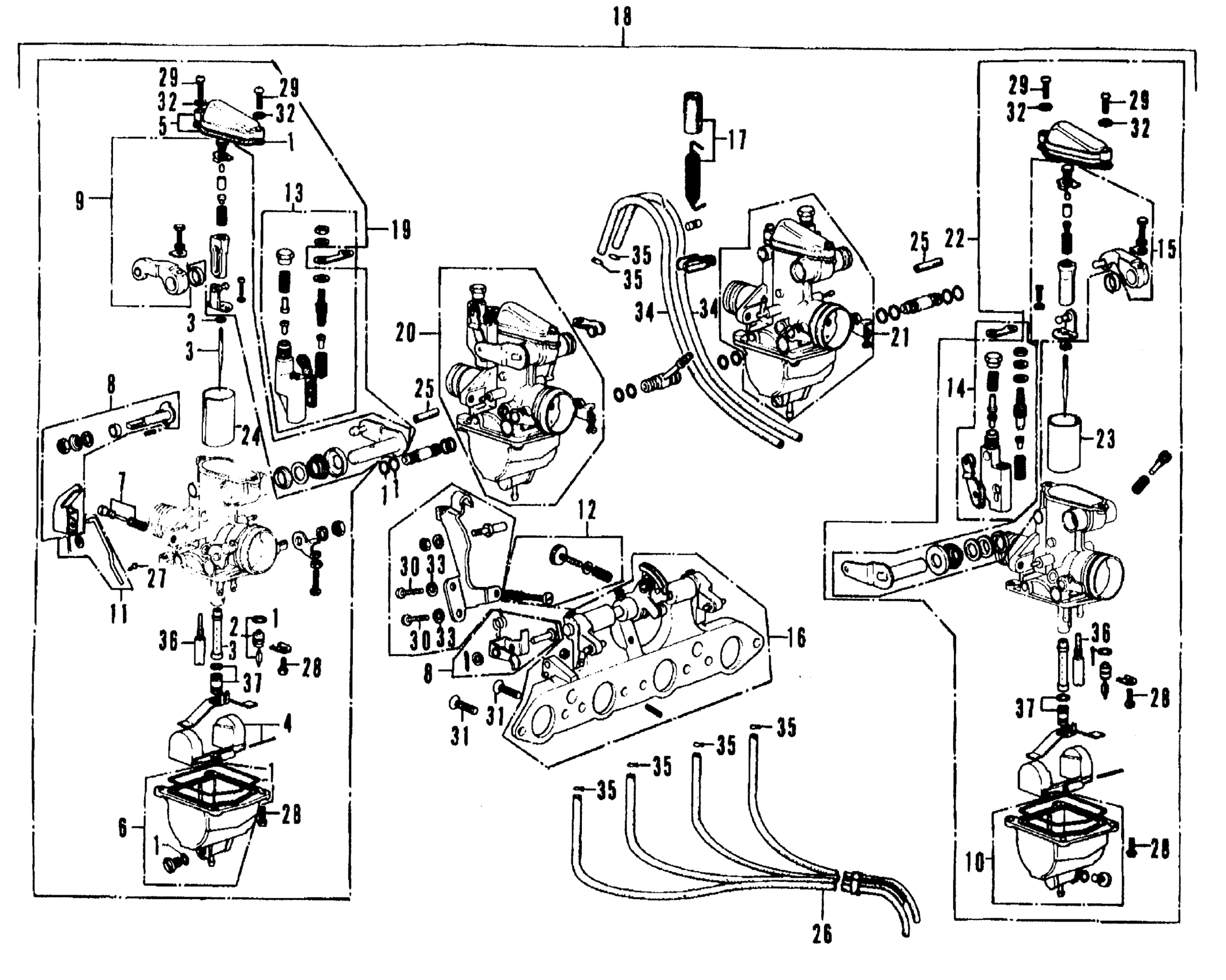

Honda CB350F1A MOTORCYCLE, JPN, VIN# CB350F-2000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-333-004.

16010-333-315

$21.28

1

GASKET SET This part replaces 16010-333-305.

16010-333-315

$21.28

1

GASKET SET

16010-333-315

$21.28

2

VALVE SET, FLOAT

16011-329-004

$44.11

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-333-004

Unavailable

4

FLOAT SET

16013-333-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-333-004

Unavailable

6

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-333-004

Unavailable

7

SCREW SET A (NOT AVAILABLE)

16016-333-004

Unavailable

8

LINK SET

16017-333-004

Unavailable

9

ARM SET, LINK (NOT AVAILABLE)

16018-333-004

$163.64

10

CHAMBER SET B, FLOAT (NOT AVAILABLE)

16023-333-004

Unavailable

11

ROD SET, CHOKE

16025-333-004

Unavailable

12

SCREW SET B (NOT AVAILABLE)

16028-333-004

Unavailable

13

HOLDER SET A, ADJ.

16029-323-004

Unavailable

14

HOLDER SET B, ADJ. (NOT AVAILABLE)

16030-323-004

Unavailable

15

ARM SET B, LINK (NOT AVAILABLE)

16031-333-004

Unavailable

16

PLATE SET, STAY (NOT AVAILABLE)

16035-333-004

Unavailable

17

TUBE SET, PROTECT (NOT AVAILABLE)

16036-323-004

Unavailable

18

CARBURETOR ASSY. (KEIHIN) (NOT AVAILABLE)

16100-333-004

Unavailable

19

CARBURETOR ASSY. A (NOT AVAILABLE)

16101-333-004

Unavailable

20

CARBURETOR ASSY. B (NOT AVAILABLE)

16102-333-004

Unavailable

21

CARBURETOR ASSY. C (NOT AVAILABLE)

16103-333-004

Unavailable

22

CARBURETOR ASSY. D

16104-333-004

Unavailable

23

VALVE A, THROTTLE (NOT AVAILABLE)

16111-333-004

Unavailable

24

VALVE B, THROTTLE (NOT AVAILABLE)

16112-333-004

Unavailable

25

TUBE, FUEL (2.5X16) (NOT AVAILABLE)

16199-333-004

Unavailable

26

TUBE, OVERFLOW (NOT AVAILABLE)

16290-333-000

Unavailable

27

SCREW, PAN (3X6)

93500-03006-0A

$1.49

28

SCREW, PAN (4X10)

93500-04010-0A

$1.49

29

SCREW, PAN (5X16)

93500-05016-0A

$1.49

30

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

30

SCREW, PAN (6X16)

93500-06016-0A

$1.49

31

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

31

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

32

WASHER, SPRING (5MM)

94111-05000

$1.49

33

WASHER, SPRING (6MM)

94111-06000

$1.49

34

BULK HOSE, FUEL (3.5X3000) (3.5X600)

95001-35003-60M

$20.85

35

CLIP, TUBE (B7)

95002-02070

$1.80

36

JET, SLOW (#35)

99124-076-0350

Unavailable

36

JET, SLOW (#38) | (Optional).

99124-076-0380

$9.87

37

JET SET, MAIN (#68) | (Optional).

99202-601-0680

Unavailable

37

JET SET, MAIN (#70) (NOT AVAILABLE) | (Optional).

99202-601-0700

Unavailable

37

JET SET, MAIN (#72) | (Optional).

99202-601-0720

Unavailable

37

JET SET, MAIN (#75)

99202-601-0750

Unavailable

37

JET SET, MAIN (#78) | (Optional).

99202-601-0780

Unavailable

37

JET SET, MAIN (#80) | (Optional).

99202-601-0800

Unavailable
