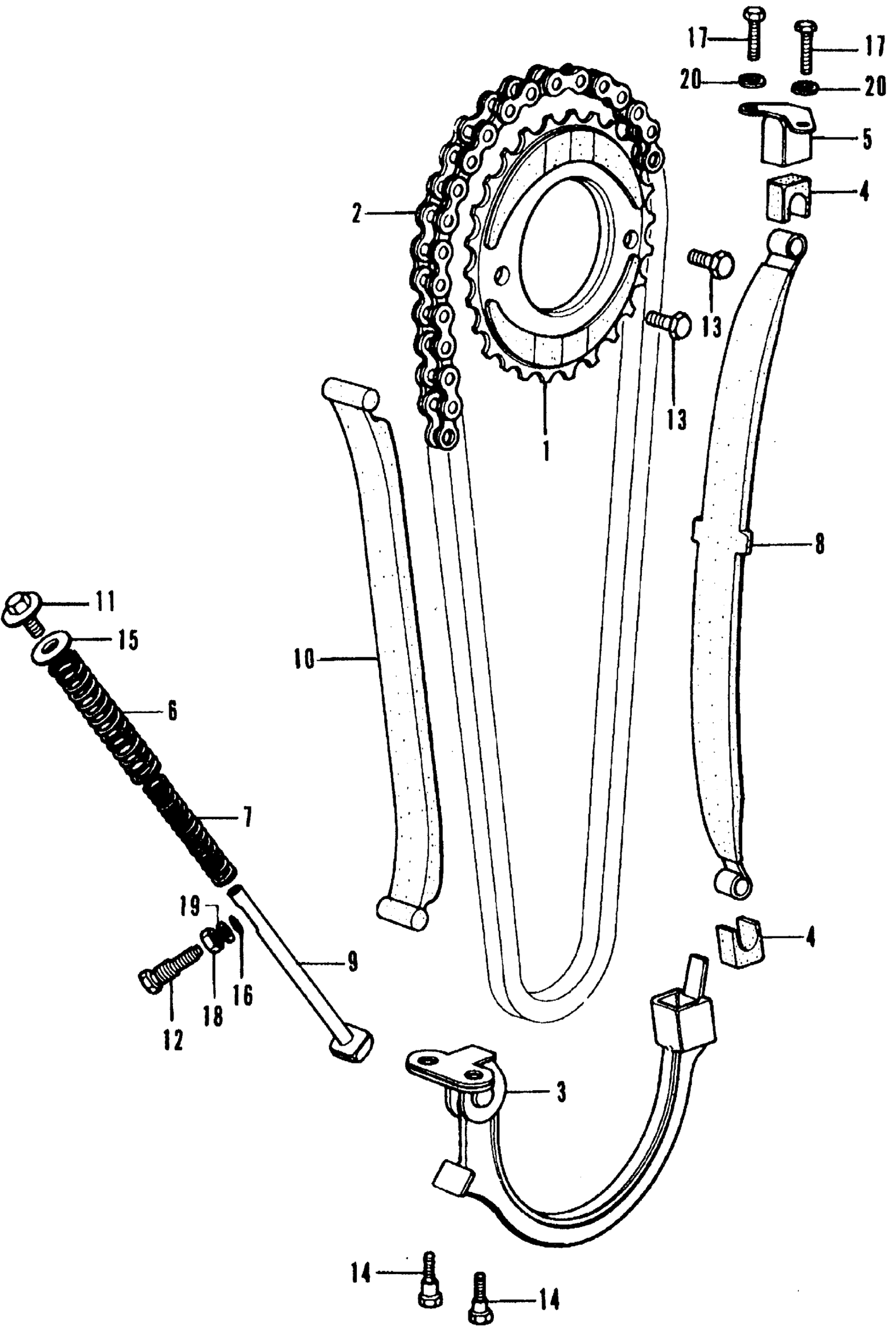

Honda CB350F1A MOTORCYCLE, JPN, VIN# CB350F-2000001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (32T)

14321-354-000

$46.49

CHAIN, CAM

14401-333-003

Unavailable

ARM, CAM CHAIN TENSIONER (NOT AVAILABLE)

14500-333-020

Unavailable

DAMPER, CAM CHAIN TENSIONER

14501-323-000

Unavailable

HOLDER, CAM CHAIN TENSIONER (NOT AVAILABLE)

14530-333-000

Unavailable

SPRING, CAM CHAIN TENSIONER (OUTER) (NOT AVAILABLE)

14541-333-020

Unavailable

SPRING, CAM CHAIN TENSIONER (INNER) (NOT AVAILABLE)

14543-333-000

Unavailable

SLIPPER, CAM CHAIN TENSIONER

14545-333-000

Unavailable

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE) | Use up to Engine SN 2002065

14550-333-000

Unavailable

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE) | Use from Engine SN 2002066 This part replaces 14550-369-000.

14550-369-020

Unavailable

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE) | Use from Engine SN 2002066 This part replaces 14550-369-010.

14550-369-020

Unavailable

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE) | Use from Engine SN 2002066

14550-369-020

Unavailable

GUIDE, CAM CHAIN

14620-333-000

Unavailable

BOLT, OIL CHECK (NOT AVAILABLE)

25911-500-000

Unavailable

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90016-286-000

Unavailable

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

BOLT, KNOCK (6X14)

90081-312-000

Unavailable

WASHER (8MM)

90474-333-000

$3.30

O-RING (6X1.7)

91317-171-003

$2.92

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.92

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

NUT, HEX. (8MM)

94002-08000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49
