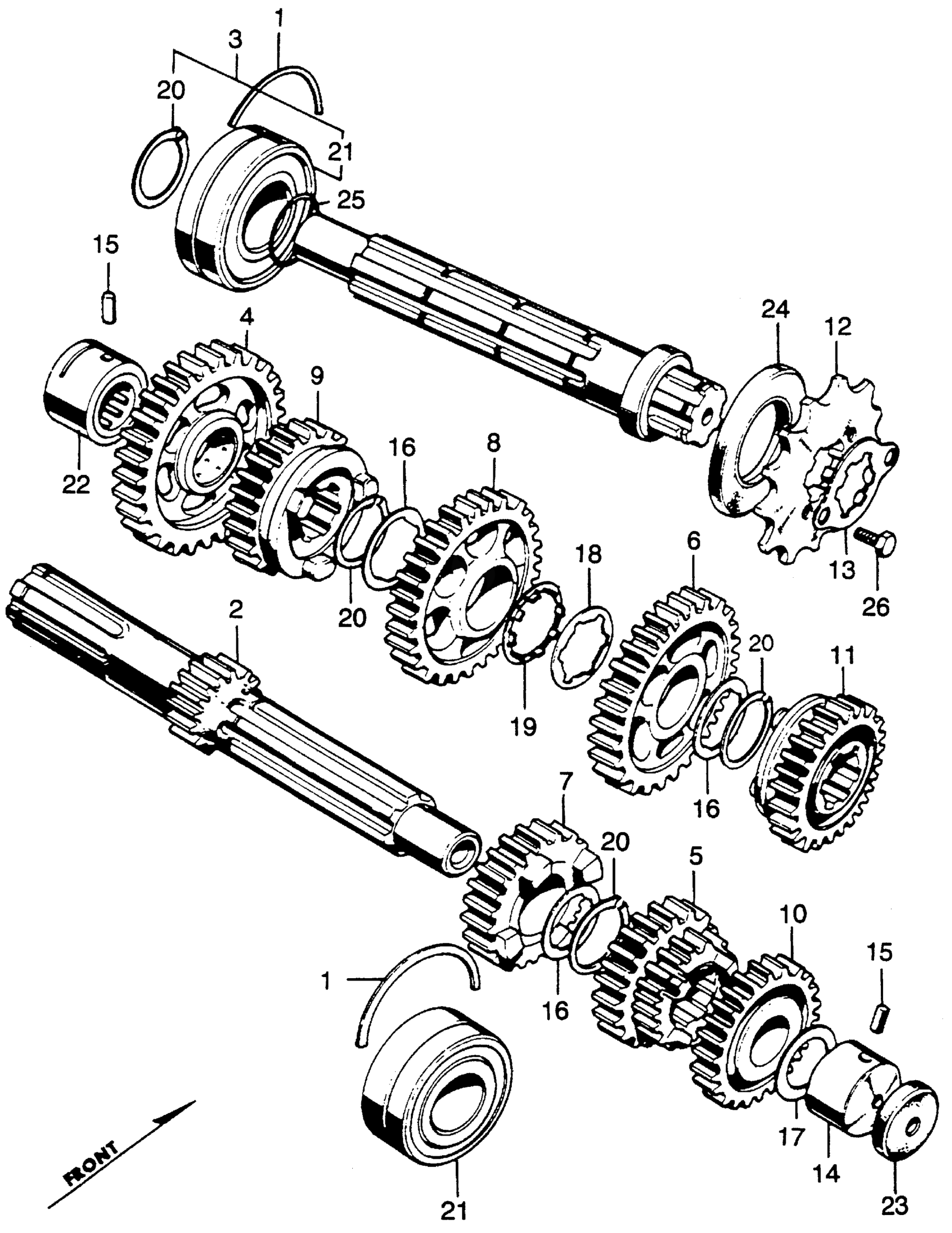

Honda CB350A MOTORCYCLE, JPN, VIN# CB350-1000001 TRANSMISSION Diagram

#

Description
Price

1

SET-RING (520) This part replaces 13492-283-000.

95015-25200

Unavailable

1

SET-RING (520)

95015-25200

Unavailable

2

MAINSHAFT, TRANSMISSION (17T) (NOT AVAILABLE)

23211-286-070

Unavailable

3

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) This part replaces 23220-286-020.

23220-286-030

Unavailable

3

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23220-286-030

Unavailable

3

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use up to Engine SN 1042394

23221-286-320

Unavailable

3

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 1042395 This part replaces 23221-286-330.

23220-286-030

Unavailable

4

GEAR, COUNTERSHAFT LOW (40T) (NOT AVAILABLE)

23420-286-030

Unavailable

5

GEAR, MAINSHAFT SECOND & THIRD (22T,26T) | Use from Engine SN 1044230

23431-286-030

$408.16

5

GEAR, MAINSHAFT SECOND & THIRD (22T,26T) | Use up to Engine SN 1044229

23431-286-333

Unavailable

6

GEAR, COUNTERSHAFT SECOND (36T) | Use up to Engine SN 1042394

23441-286-010

Unavailable

6

GEAR, COUNTERSHAFT SECOND (36T) | Use from Engine SN 1042395

23441-286-020

Unavailable

7

GEAR, MAINSHAFT FOURTH (28T) (NOT AVAILABLE)

23451-286-030

$282.90

8

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) This part replaces 234A1-390-305.

234A1-390-315

Unavailable

8

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE)

234A1-390-315

Unavailable

8

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) | Use up to Engine SN 1042394 This part replaces 23461-286-020.

234A1-390-315

Unavailable

8

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) | Use up to Engine SN 1042394 This part replaces 23461-286-030.

234A1-390-315

Unavailable

8

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) This part replaces 23461-286-030.

234A1-390-315

Unavailable

8

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) This part replaces 23471-286-010.

234A1-390-315

Unavailable

9

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) | Use from Engine SN 1044230 This part replaces 234A1-390-305.

234A1-390-315

Unavailable

9

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) | Use from Engine SN 1044230

234A1-390-315

Unavailable

9

GEAR, COUNTERSHAFT THIRD (33T) (NOT AVAILABLE) | Use from Engine SN 1044230 This part replaces 23471-286-010.

234A1-390-315

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (29T) (NOT AVAILABLE) | Use up to Engine SN 1044229

23471-286-313

Unavailable

10

GEAR, MAINSHAFT TOP (30T) (NOT AVAILABLE) | Use up to Engine SN 1049934 This part replaces 23481-286-040.

23481-286-050

Unavailable

10

GEAR, MAINSHAFT TOP (30T) (NOT AVAILABLE)

23481-286-050

Unavailable

11

GEAR, COUNTERSHAFT TOP (27T) | Use from Engine SN 1044230 This part replaces 23491-286-030.

23491-374-000

Unavailable

11

GEAR, COUNTERSHAFT TOP (27T) (NOT AVAILABLE) | Use up to Engine SN 1044229

23491-286-333

$202.33

11

GEAR, COUNTERSHAFT TOP (27T) | Use from Engine SN 1044230

23491-374-000

Unavailable

12

SPROCKET, DRIVE (16T) This part replaces 23801-287-020.

23801-344-000

Unavailable

12

SPROCKET, DRIVE (16T)

23801-344-000

Unavailable

12

SPROCKET, DRIVE (16T) This part replaces 23801-346-810.

23801-344-000

Unavailable

13

PLATE, DRIVE SPROCKET FIXING This part replaces 23811-283-000.

23811-292-000

$2.51

13

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

14

BEARING, NEEDLE (20MM) (TOYO)

23931-286-068

Unavailable

15

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

16

WASHER A, THRUST (25MM) (NOT AVAILABLE) | Use up to Engine SN 1042394 This part replaces 90451-283-000.

90451-286-000

Unavailable

16

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90451-286-000

Unavailable

17

WASHER, THRUST (20MM) | Use from Engine SN 1049935

90458-292-000

$3.54

18

WASHER B, THRUST (25MM) | Use from Engine SN 1042395

90461-286-000

Unavailable

19

WASHER, LOCK (25MM) (NOT AVAILABLE) | Use from Engine SN 1042395

90462-286-000

Unavailable

20

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

21

BEARING, BALL (5205HS) (TOYO) (NOT AVAILABLE)

91002-286-008

Unavailable

22

BEARING, NEEDLE (20MM) (KOYO) (NOT AVAILABLE)

91022-286-004

Unavailable

22

BEARING, NEEDLE (20MM) (KOYO) (NOT AVAILABLE) This part replaces 91022-286-016.

91022-286-004

Unavailable

23

OIL SEAL (8X34X8) This part replaces 91203-292-003.

91203-292-005

$13.88

23

OIL SEAL (8X34X8)

91203-292-005

$13.88

24

OIL SEAL (33X52X7)

91205-286-003

Unavailable

25

O-RING (24.5X1.5) (NOT AVAILABLE)

91306-703-000

Unavailable

26

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

26

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

26

BOLT, HEX. (6X8)

92101-06008-0A

$1.49
