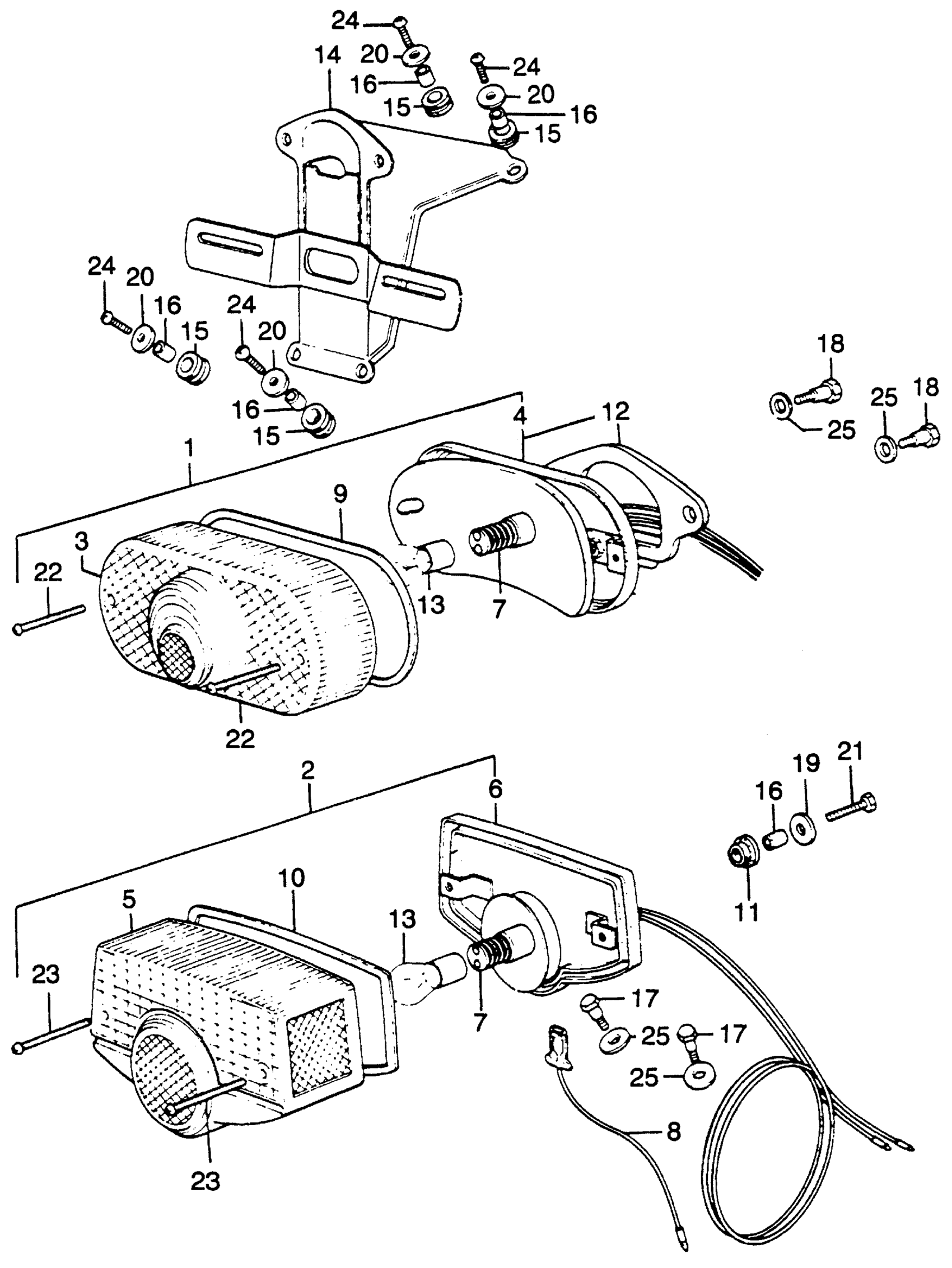

Honda CB350A MOTORCYCLE, JPN, VIN# CB350-1000001 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY. (STANLEY) (NOT AVAILABLE) | Use up to Frame SN 1020595

33700-292-013

Unavailable

2

TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 1020596

33700-292-671

Unavailable

3

LENS, TAILLIGHT (NOT AVAILABLE) | Use up to Frame SN 1020595

33701-041-671

Unavailable

4

BASE, TAILLIGHT (STANLEY) (NOT AVAILABLE) | Use up to Frame SN 1020595

33702-292-003

Unavailable

5

LENS, TAILLIGHT | Use from Frame SN 1020596

33702-077-671

$36.90

6

BASE, TAILLIGHT | Use from Frame SN 1020596

33703-077-671

Unavailable

7

CABLE, TAILLIGHT (NOT AVAILABLE)

33707-292-013

Unavailable

8

CABLE, TAILLIGHT GROUND (NOT AVAILABLE) | Use from Frame SN 1020596

33708-292-670

Unavailable

9

GASKET, TAILLIGHT LENS (NOT AVAILABLE) | Use up to Frame SN 1020595

33709-041-000

Unavailable

10

GASKET, TAILLIGHT | Use from Frame SN 1020596

33709-077-671

$3.41

11

GASKET B, TAILLIGHT BASE | Use from Frame SN 1020596

33719-077-671

$1.59

12

GASKET, TAILLIGHT BASE (NOT AVAILABLE) | Use up to Frame SN 1020595

33719-292-000

Unavailable

13

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 33551-568-610.

34906-313-671

$6.67

13

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

13

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34906-268-810.

34906-313-671

$6.67

13

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

14

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-292-305Z

Unavailable

14

BRACKET *NH1* | Use from Frame SN 1020596 This part replaces 84701-292-671B.

84701-292-305B

Unavailable

15

RUBBER, BRACKET CUSHION

84705-292-000

$2.79

16

COLLAR, NUMBER BRACKET SETTING | Use up to Frame SN 1042166

84706-286-000

$2.99

16

COLLAR, NUMBER BRACKET SETTING | Use from Frame SN 1020596

84706-286-000

$2.99

17

BOLT, TAILLIGHT SETTING | Use from Frame SN 1042167

90162-283-000

$4.24

17

BOLT, TAILLIGHT SETTING | Use from Frame SN 1042167 This part replaces 90162-292-000.

90162-283-000

$4.24

18

BOLT, TAILLIGHT SET (NOT AVAILABLE) | Use up to Frame SN 1020595

90165-292-000

Unavailable

19

WASHER (20MM) | Use from Frame SN 1020596

90581-310-000

$1.90

20

WASHER (18MM) | Use up to Frame SN 1042166

90581-831-650

$1.87

21

BOLT, HEX. (5X20) | Use from Frame SN 1020596 This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

21

BOLT, HEX. (5X20) | Use from Frame SN 1020596

92101-05020-0A

$1.49

21

BOLT, HEX. (5X20) | Use from Frame SN 1020596 This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

22

SCREW, PAN (4X45) | Use up to Frame SN 1020595

93500-04045-0B

Unavailable

23

SCREW, PAN (4X50) | Use from Frame SN 1020596

93500-04050-0A

$1.49

24

SCREW, PAN (6X20) | Use up to Frame SN 1042166 This part replaces 93500-06020-0B.

93500-06020-0H

$1.49

24

SCREW, PAN (6X20) | Use up to Frame SN 1042166

93500-06020-0H

$1.49

24

SCREW, PAN (6X20) | Use up to Frame SN 1042166 This part replaces 93500-06020-02.

93500-06020-0H

$1.49

24

SCREW, PAN (6X20) | Use up to Frame SN 1042166 This part replaces 93500-06020-08.

93500-06020-0H

$1.49

25

WASHER, PLAIN (8MM) | Use up to Frame SN 1020595

94101-08000

$1.49

25

WASHER, PLAIN (8MM) | Use from Frame SN 1042167

94101-08000

$1.49
