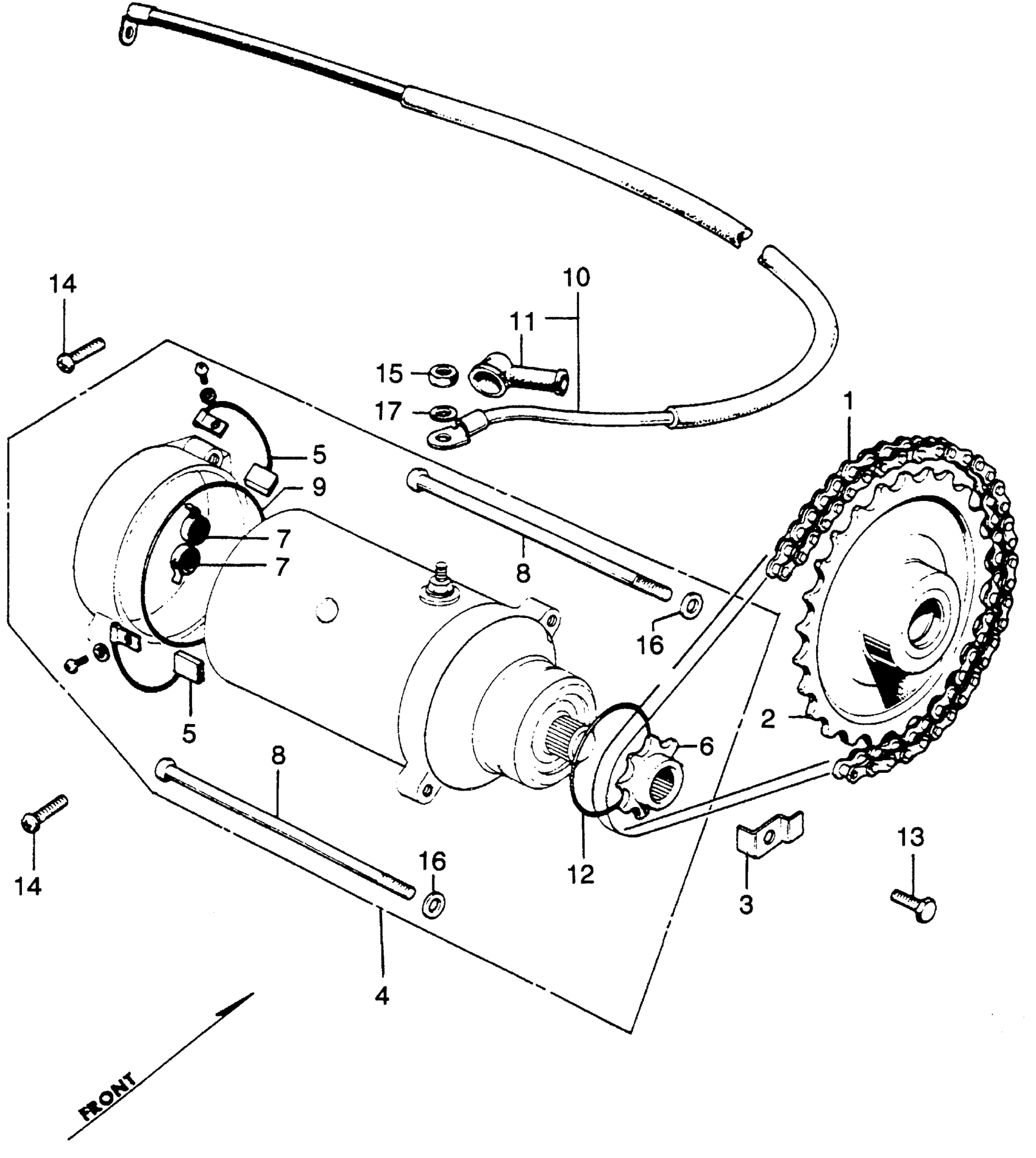

Honda CB350A MOTORCYCLE, JPN, VIN# CB350-1000001 STARTER MOTOR Diagram

#

Description
Price

1

CHAIN, STARTER (DID219-54L) (DAIDO) This part replaces 28101-286-003.

28101-402-003

Unavailable

1

CHAIN, STARTER (DID219-54L) (DAIDO)

28101-402-003

Unavailable

2

SPROCKET, STARTING (NOT AVAILABLE)

28110-286-010

Unavailable

3

PLATE, STARTING SPROCKET SETTING (NOT AVAILABLE) This part replaces 28117-286-000.

28117-286-010

Unavailable

3

PLATE, STARTING SPROCKET SETTING (NOT AVAILABLE)

28117-286-010

Unavailable

4

MOTOR ASSY., STARTER | Use up to Engine SN 1109387 This part replaces 31200-286-158.

31200-286-405

Unavailable

4

MOTOR ASSY., STARTER This part replaces 31200-286-168.

31200-286-405

Unavailable

5

BRUSH SET (MITSUBA)

31201-230-174

Unavailable

6

SPROCKET, STARTER MOTOR (MITSUBA) (NOT AVAILABLE)

31202-286-158

Unavailable

7

SPRING, BRUSH This part replaces 31204-225-154.

31204-230-174

$4.64

7

SPRING, BRUSH

31204-230-174

$4.64

8

BOLT, SETTING (NOT AVAILABLE) | Use from Engine SN 1109388

31205-286-158

Unavailable

8

BOLT, GEAR COVER (NOT AVAILABLE) | Use up to Engine SN 1109387

31205-292-158

Unavailable

9

O-RING (60X1.4) This part replaces 31206-286-158.

31206-402-008

Unavailable

9

O-RING (60X1.4)

31206-402-008

Unavailable

10

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-286-000

Unavailable

10

CABLE, STARTER MOTOR (NOT AVAILABLE) | Use from Engine SN 1069375 This part replaces 32410-286-010.

32410-286-000

Unavailable

11

COVER, STARTER MOTOR TERMINAL | Use up to Engine SN 1069374

32411-230-000

$6.40

11

COVER, STARTER MOTOR TERMINAL | Use from Engine SN 1069375

32411-230-000

$6.40

11

COVER, STARTER MOTOR TERMINAL | Use up to Engine SN 1069374 This part replaces 32411-253-000.

32411-230-000

$6.40

11

COVER, STARTER MOTOR TERMINAL | Use from Engine SN 1069375 This part replaces 32411-253-000.

32411-230-000

$6.40

12

O-RING

91309-MA6-000

$3.97

12

O-RING This part replaces 91309-283-000.

91309-MA6-000

$3.97

12

O-RING This part replaces 91309-283-005.

91309-MA6-000

$3.97

13

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

13

SCREW, PAN (6X12)

93500-06012-0A

$1.49

13

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

14

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

15

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

15

NUT, HEX. (6MM)

94002-06000-0S

$1.49

16

WASHER, SPRING (5MM) | Use up to Engine SN 1109387

94111-05000

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49
