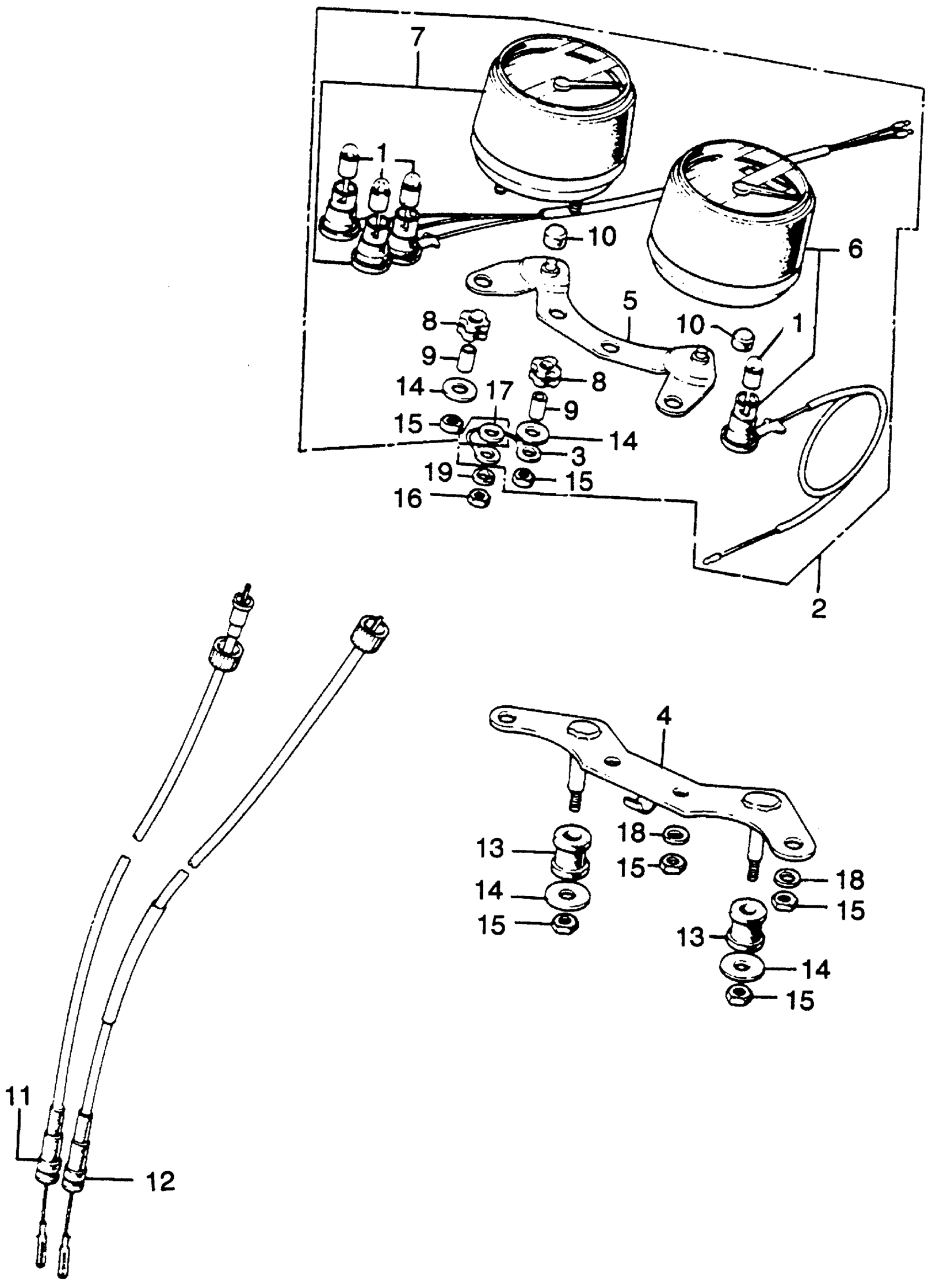

Honda CB350A MOTORCYCLE, JPN, VIN# CB350-1000001 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

2

SPEEDOMETER/TACHOMETER ASSY. (MPH) (NOT AVAILABLE) | Use up to Frame SN 1025757 This part replaces 37200-286-670.

37200-286-671

Unavailable

2

SPEEDOMETER/TACHOMETER ASSY. (MPH) (NOT AVAILABLE)

37200-286-671

Unavailable

3

WIRE, METER GROUND (NOT AVAILABLE) | Use from Frame SN 1025758

37208-292-000

Unavailable

4

PLATE, METER SET *NH1* (BLACK) | Use up to Frame SN 1025757 This part replaces 37211-292-000B.

37211-292-010B

Unavailable

4

PLATE, METER SET *NH1* (BLACK) | Use up to Frame SN 1025757

37211-292-010B

Unavailable

5

PLATE, METER SET *NH1* (BLACK) | Use from Frame SN 1025758

37211-292-010B

Unavailable

6

SPEEDOMETER ASSY. (MPH) | Use up to Frame SN 1025757 This part replaces 37230-286-670.

37230-286-671

Unavailable

6

SPEEDOMETER ASSY. (MPH) | Use up to Frame SN 1025757

37230-286-671

Unavailable

6

SPEEDOMETER ASSY. (MPH)

37230-286-671

Unavailable

7

TACHOMETER ASSY. (NOT AVAILABLE) | Use up to Frame SN 1025757 This part replaces 37240-286-008.

37240-286-018

Unavailable

7

TACHOMETER ASSY. (NOT AVAILABLE)

37240-286-018

Unavailable

8

RUBBER, SPEEDOMETER CUSHION | Use from Frame SN 1025758 This part replaces 37242-292-000.

37242-292-505

Unavailable

8

RUBBER, SPEEDOMETER CUSHION | Use from Frame SN 1025758

37242-292-505

Unavailable

9

COLLAR, SPEEDOMETER SET (NOT AVAILABLE) | Use from Frame SN 1025758

37243-292-000

Unavailable

10

RUBBER, SPEEDOMETER SET (NOT AVAILABLE) | Use from Frame SN 1025758

37244-292-000

Unavailable

11

CABLE ASSY., TACHOMETER

37260-MA1-730

Unavailable

11

CABLE ASSY., TACHOMETER This part replaces 37260-MC8-000.

37260-MA1-730

Unavailable

11

CABLE ASSY., TACHOMETER This part replaces 37260-286-000.

37260-MA1-730

Unavailable

11

CABLE ASSY., TACHOMETER This part replaces 37260-425-840.

37260-MA1-730

Unavailable

11

CABLE ASSY., TACHOMETER This part replaces 37260-461-000.

37260-MA1-730

Unavailable

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-KB5-000.

44830-KB5-720

$35.36

12

CABLE ASSY., SPEEDOMETER

44830-KB5-720

$35.36

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-286-000.

44830-KB5-720

$35.36

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-361-000.

44830-KB5-720

$35.36

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-361-010.

44830-KB5-720

$35.36

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-419-670.

44830-KB5-720

$35.36

13

RUBBER, SPEEDOMETER STAY CUSHION (NOT AVAILABLE) | Use up to Frame SN 1025757

53236-292-010

Unavailable

14

WASHER (6.5X20) | Use up to Frame SN 1025757

90545-292-000

$1.77

14

WASHER (6.5X20) | Use from Frame SN 1025758

90545-292-000

$1.77

15

NUT, HEX. (6MM) | Use up to Frame SN 1025757 This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use from Frame SN 1025758 This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use up to Frame SN 1025757 This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use from Frame SN 1025758 This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use up to Frame SN 1025757 This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use from Frame SN 1025758 This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use up to Frame SN 1025757 This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use from Frame SN 1025758 This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use up to Frame SN 1025757 This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use from Frame SN 1025758 This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use up to Frame SN 1025757

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use from Frame SN 1025758

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use up to Frame SN 1025757 This part replaces 94030-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) | Use from Frame SN 1025758 This part replaces 94030-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (8MM) | Use from Frame SN 1025758

94001-08000-0S

$1.49

17

WASHER, PLAIN (8MM) | Use from Frame SN 1025758

94101-08000

$1.49

18

WASHER, SPRING (6MM) | Use up to Frame SN 1025757

94111-06000

$1.49

19

WASHER, SPRING (8MM) | Use from Frame SN 1025758

94111-08000

$1.49
