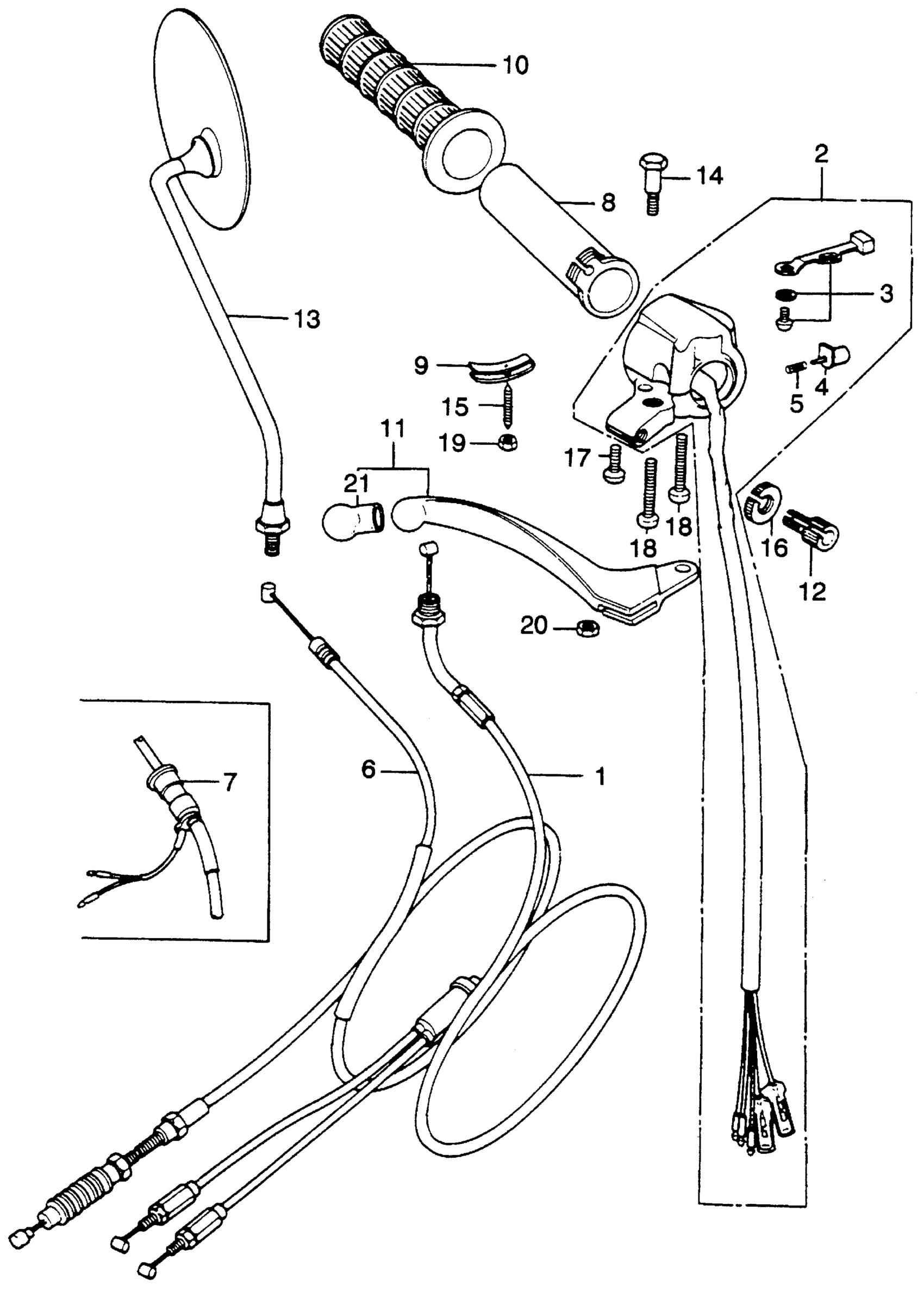

Honda CB350A MOTORCYCLE, JPN, VIN# CB350-1000001 RIGHT HANDLE SWITCH + CABLE I Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-286-000

Unavailable

2

SWITCH ASSY., STARTER & DIMMER (NOT AVAILABLE)

35300-292-670

Unavailable

3

KNOB, LIGHTING SWITCH (NOT AVAILABLE)

35315-235-000

Unavailable

4

BUTTON, HORN SWITCH PUSH

35317-001-310

$4.62

5

SPRING, BUTTON

35318-259-000

$5.33

6

CABLE, FR. BRAKE | Use up to Frame SN 1020595 This part replaces 45450-286-000.

45450-329-010

Unavailable

6

CABLE, FR. BRAKE | Use up to Frame SN 1020595 This part replaces 45450-286-010.

45450-329-010

Unavailable

6

CABLE, FR. BRAKE | Use up to Frame SN 1020595

45450-329-010

Unavailable

7

CABLE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1020596 This part replaces 45450-286-670.

45450-290-670

Unavailable

7

CABLE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1020596

45450-290-670

Unavailable

8

PIPE A, THROTTLE GRIP This part replaces 53141-240-000.

95014-51100

$17.62

8

PIPE A, THROTTLE GRIP

95014-51100

$17.62

9

ADJUSTER, THROTTLE GRIP (NOT AVAILABLE) | Use up to Frame SN 1065311

53163-205-010

Unavailable

10

GRIP, R. HANDLEBAR This part replaces 53165-283-000.

95011-14100

$8.55

10

GRIP, R. HANDLEBAR

95011-14100

$8.55

11

LEVER, R. HANDLEBAR This part replaces 53170-074-670.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53170-216-670.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53170-286-670.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53170-329-000.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53170-329-010.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53170-369-700.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53175-216-670.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53175-286-000.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53175-329-000.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

12

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

13

MIRROR, R. (NOT AVAILABLE)

88110-240-000

Unavailable

14

BOLT, HANDLEBAR LEVER PIVOT (NOT AVAILABLE)

90114-268-000

Unavailable

15

SCREW, THROTTLE GRIP ADJUSTING (NOT AVAILABLE) | Use up to Frame SN 1065311

90124-292-000

Unavailable

16

NUT, FIXING This part replaces 90321-292-000.

90321-315-670

$7.31

16

NUT, FIXING

90321-315-670

$7.31

16

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

17

SCREW, PAN (5X6) | Use from Frame SN 1065312

93500-05006-0A

$1.49

18

SCREW, PAN (5X25)

93500-05025-0A

$1.49

19

NUT, HEX. (5MM) | Use up to Frame SN 1065311

94001-05000-0S

$2.74

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

CAP A, LEVER | Use from Frame SN 1020446 This part replaces 53180-286-000.

95010-16001

$5.97

21

CAP A, LEVER | Use from Frame SN 1020446 This part replaces 95010-16000.

95010-16001

$5.97

21

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

21

CAP A, LEVER | Use from Frame SN 1020446

95010-16001

$5.97

21

CAP A, LEVER

95010-16001

$5.97
