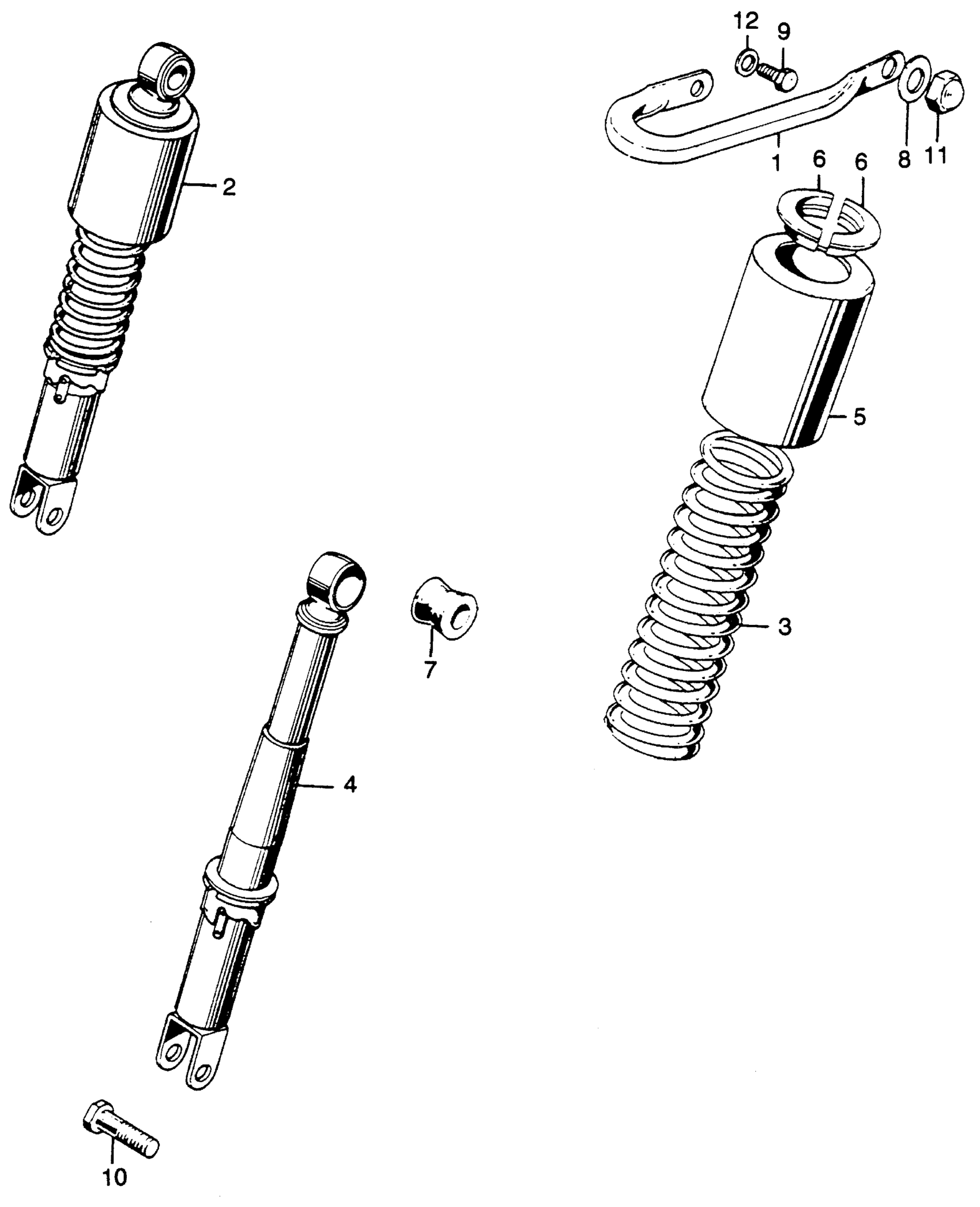

Honda CB350A MOTORCYCLE, JPN, VIN# CB350-1000001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

GRIP, SIDE (NOT AVAILABLE)

50316-286-000

Unavailable

2

SHOCK ABSORBER ASSY., RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

52400-286-670XW

Unavailable

3

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-286-670

Unavailable

4

DAMPER ASSY., RR.

52410-286-670

Unavailable

5

CASE, SHOCK ABSORBER (UPPER) *MRCR2* (CHROME PLATING)

52421-292-670XW

Unavailable

6

STOPPER, SPRING SEAT (NOT AVAILABLE)

52424-292-000

Unavailable

7

RUBBER, JOINT

52484-292-000

$5.47

8

WASHER, PLAIN (10.3MM)

90527-230-000

$1.87

9

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

9

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

9

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

10

BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-10032-0A.

92101-10032-0A

Unavailable

10

BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.) This part replaces 92025-10032-0A.

92101-10032-0A

Unavailable

10

BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.)

92101-10032-0A

Unavailable

11

NUT, CAP (10MM) This part replaces 94021-10000.

94021-10000-0S

$1.64

11

NUT, CAP (10MM)

94021-10000-0S

$1.64

11

NUT, CAP (10MM) This part replaces 94022-10000-0S.

94021-10000-0S

$1.64

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM)

94101-06800

Unavailable
