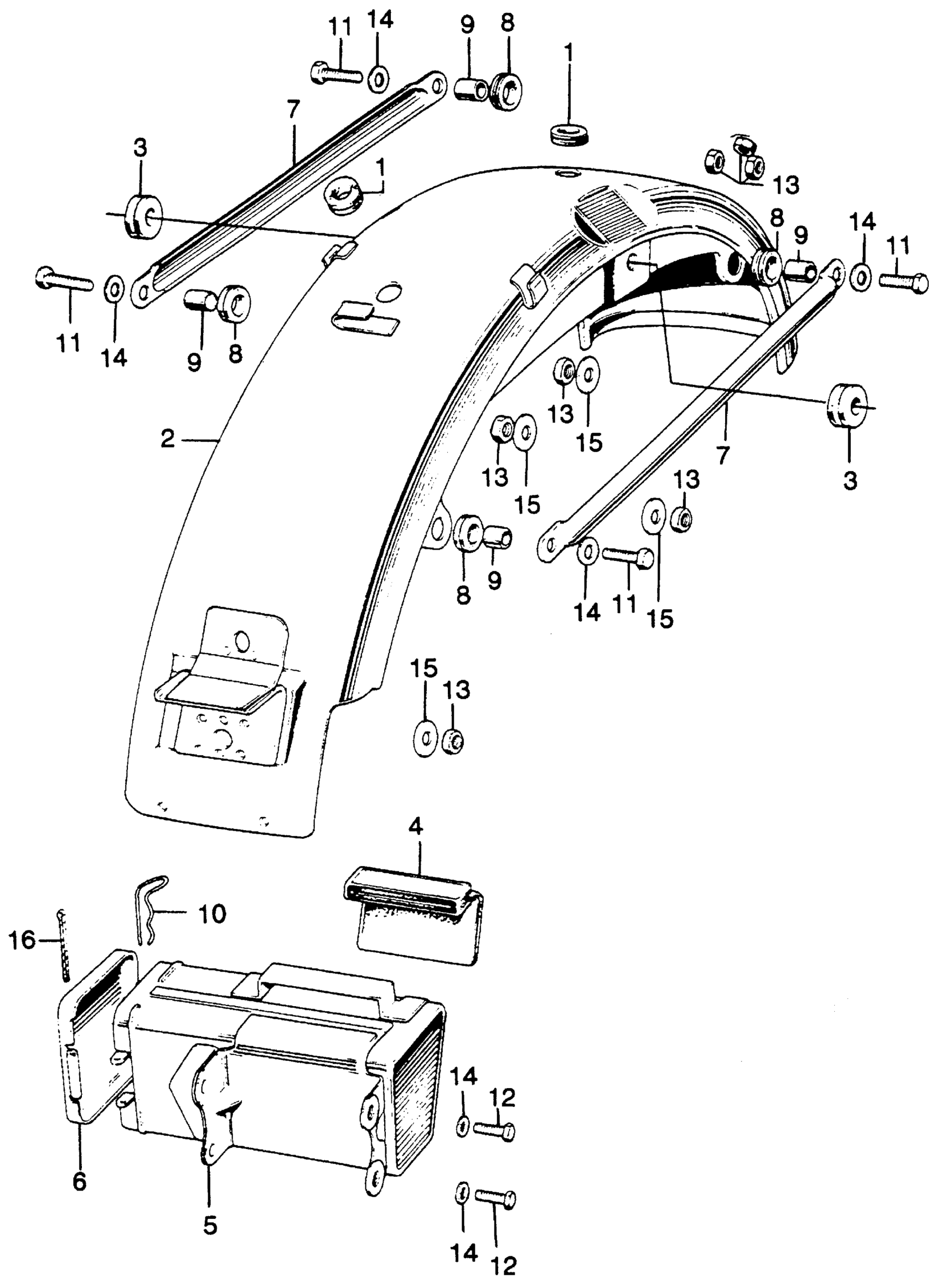

Honda CB350A MOTORCYCLE, JPN, VIN# CB350-1000001 REAR FENDER + TOOL BOX TOOL BOX Diagram

#

Description
Price

1

GROMMET, WIRE HARNESS

32983-011-000

$3.31

2

FENDER, RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use up to Frame SN 1017200 This part replaces 80100-286-672XW.

80100-286-674XW

Unavailable

2

FENDER, RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use up to Frame SN 1043563 This part replaces 80100-286-673XW.

80100-286-674XW

Unavailable

2

FENDER, RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

80100-286-674XW

Unavailable

3

RUBBER, RR. FENDER SETTING (NOT AVAILABLE)

80102-292-670

Unavailable

4

RUBBER B, RR. FENDER MOUNT (NOT AVAILABLE) | Use up to Frame SN 1043563

80103-286-010

Unavailable

4

RUBBER B, RR. FENDER MOUNT (NOT AVAILABLE) | Use from Frame SN 1043564

80103-286-020

Unavailable

5

BOX, TOOL *NH1* (BLACK)

83500-286-030B

Unavailable

6

CAP, TOOL BOX *NH1* (BLACK)

83541-286-000B

Unavailable

7

BRACKET, RR. FENDER (NOT AVAILABLE)

84101-286-010

Unavailable

8

RUBBER, BRACKET CUSHION | Use from Frame SN 1017201

84705-292-000

$2.79

9

COLLAR, NUMBER BRACKET SETTING | Use from Frame SN 1017201

84706-286-000

$2.99

10

PIN, TOOL BOX LOCK (NOT AVAILABLE)

90675-286-000

Unavailable

11

BOLT, HEX. (6X10) (NOT AVAILABLE) | Use up to Frame SN 1017200

92000-06010-02

Unavailable

11

BOLT, HEX. (6X16) | Use from Frame SN 1017201 This part replaces 92000-06016-0B.

92101-06016-0B

$1.49

11

BOLT, HEX. (6X16) | Use from Frame SN 1017201 This part replaces 92000-06016-02.

92101-06016-0B

$1.49

11

BOLT, HEX. (6X16) | Use from Frame SN 1017201

92101-06016-0B

$1.49

12

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

13

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

13

NUT, HEX. (6MM)

94002-06000-0S

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER (18MM) | Use from Frame SN 1017201 This part replaces 90581-701-000.

90581-831-650

$1.87

15

WASHER (18MM) | Use from Frame SN 1017201

90581-831-650

$1.87

15

WASHER, SPRING (6MM) | Use up to Frame SN 1017200

94111-06000

$1.49

16

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

16

PIN, COTTER (2.0X35)

94201-20350

$1.49
