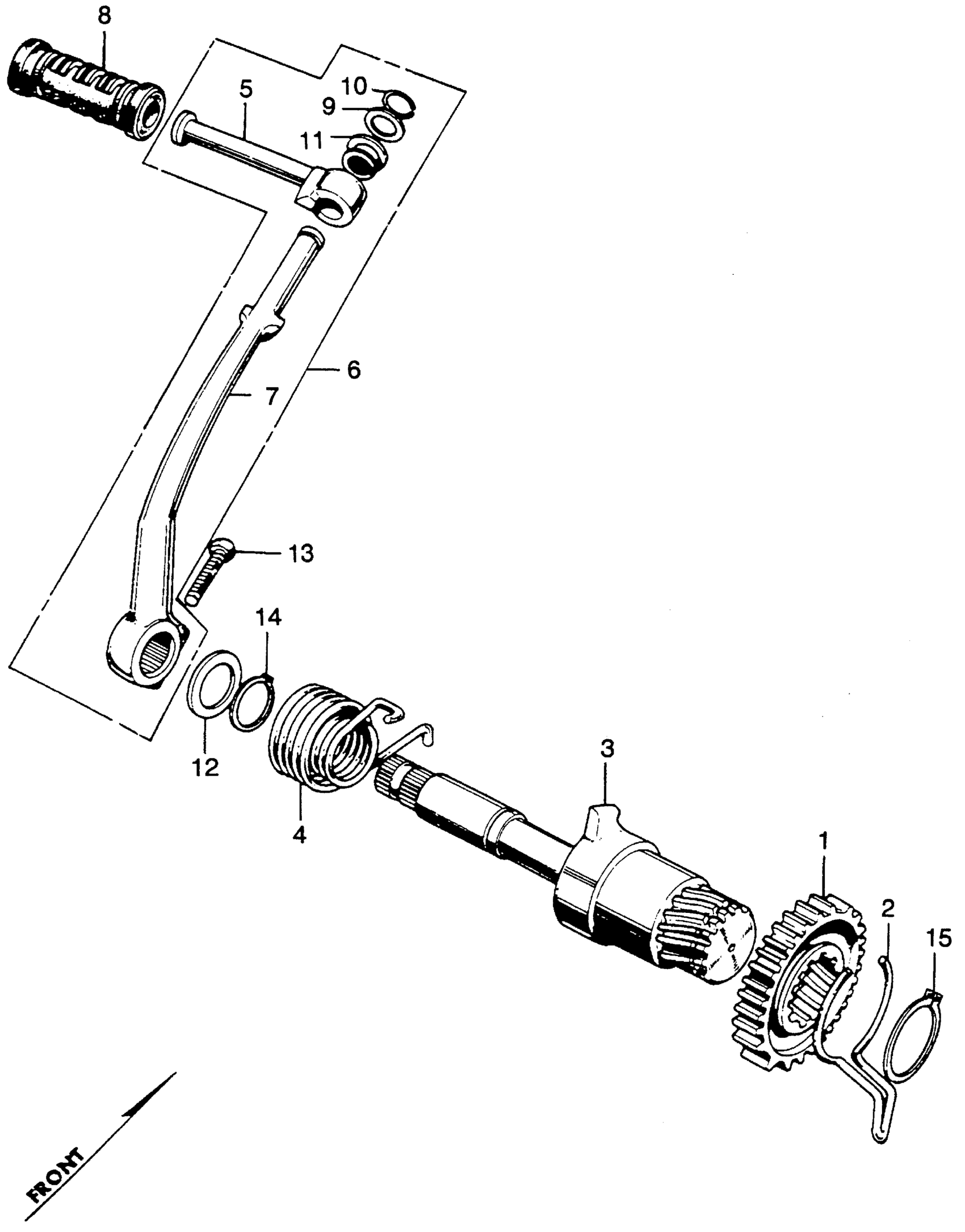

Honda CB350A MOTORCYCLE, JPN, VIN# CB350-1000001 KICK STARTER Diagram

#

Description
Price

1

PINION, KICK STARTER (KOYO) | Use up to Engine SN 1130827

28211-286-013

Unavailable

2

SPRING, FRICTION (KOYO) (NOT AVAILABLE) | Use up to Engine SN 1130827

28239-286-003

Unavailable

3

SPINDLE, KICK STARTER (KOYO) (NOT AVAILABLE) | Use up to Engine SN 1130827

28250-286-013

Unavailable

4

SPRING, KICK STARTER (NOT AVAILABLE) This part replaces 28261-286-003.

28261-323-000

Unavailable

4

SPRING, KICK STARTER (NOT AVAILABLE)

28261-323-000

Unavailable

5

PEDAL, KICK STARTER (NOT AVAILABLE)

28263-286-000

Unavailable

6

ARM ASSY., KICK STARTER (NOT AVAILABLE) | Use up to Engine SN 1031963 This part replaces 28300-286-000.

28300-286-010

Unavailable

6

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-286-010

Unavailable

7

ARM, KICK STARTER (NOT AVAILABLE) | Use up to Engine SN 1031963 This part replaces 28301-286-010.

28301-286-020

Unavailable

7

ARM, KICK STARTER (NOT AVAILABLE)

28301-286-020

Unavailable

8

RUBBER B, KICK STARTER This part replaces 28307-254-000.

95011-52000

$4.12

8

RUBBER B, KICK STARTER This part replaces 28310-216-000.

95011-52000

$4.12

8

RUBBER B, KICK STARTER This part replaces 28311-200-000.

95011-52000

$4.12

8

RUBBER B, KICK STARTER This part replaces 28311-250-000.

95011-52000

$4.12

8

RUBBER B, KICK STARTER

95011-52000

$4.12

9

WASHER, KICK PEDAL (NOT AVAILABLE)

28485-231-020

Unavailable

10

CLIP, KICK STARTER STOPPER (NOT AVAILABLE)

28486-231-020

Unavailable

11

SPRING, KICK STARTER PEDAL

28487-231-000

$3.77

12

WASHER (18MM)

90451-357-000

Unavailable

12

WASHER (18MM) This part replaces 90453-286-003.

90451-357-000

Unavailable

13

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

13

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

14

CIRCLIP (OUTER) (18MM)

94510-18000

$1.49

15

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49
