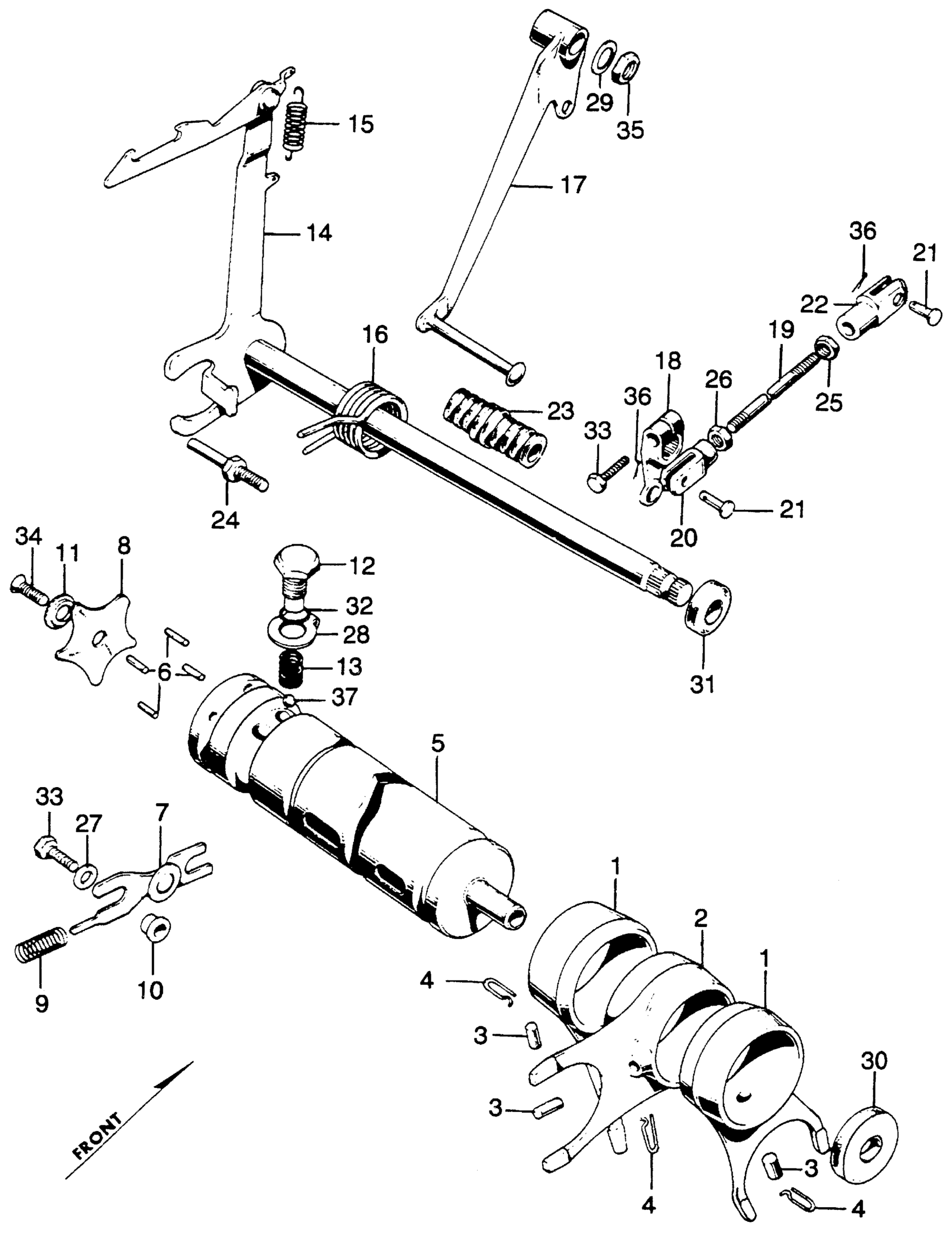

Honda CB350A MOTORCYCLE, JPN, VIN# CB350-1000001 GEARSHIFT + CHANGE PEDAL + SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK A, GEARSHIFT

24211-286-020

$141.21

2

FORK B, GEARSHIFT (NOT AVAILABLE)

24212-286-030

Unavailable

3

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

4

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

4

CLIP, GEARSHIFT FORK GUIDE

24263-286-000

Unavailable

5

DRUM, GEARSHIFT | Use up to Engine SN 1044229 This part replaces 24301-286-040.

24301-286-050

$148.57

5

DRUM, GEARSHIFT | Use up to Engine SN 1044229

24301-286-050

$148.57

5

DRUM, GEARSHIFT

24301-286-050

$148.57

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

7

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-286-030

Unavailable

8

PLATE, DRUM STOPPER CAM (NOT AVAILABLE)

24434-286-020

Unavailable

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-286-020

Unavailable

10

COLLAR, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24438-283-000

Unavailable

11

COLLAR, SHIFT DRUM STOPPER (NOT AVAILABLE)

24438-286-000

Unavailable

12

SCREW, GEARSHIFT DRUM GUIDE (NOT AVAILABLE)

24445-286-020

Unavailable

13

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24447-286-000

Unavailable

14

SPINDLE, GEARSHIFT

24610-286-030

Unavailable

15

SPRING, GEARSHIFT ARM

24641-216-000

$2.70

16

SPRING, GEARSHIFT RETURN

24651-286-000

Unavailable

17

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-286-010

Unavailable

18

JOINT, GEARSHIFT (NOT AVAILABLE)

24711-286-000

$28.00

19

ROD A, GEARSHIFT (NOT AVAILABLE)

24731-268-000

Unavailable

20

JOINT, FR. CHANGE ROD (NOT AVAILABLE)

24741-268-000

Unavailable

21

PIN, CHANGE ROD JOINT (NOT AVAILABLE)

24742-268-000

Unavailable

22

JOINT, RR. CHANGE ROD (NOT AVAILABLE)

24743-268-010

Unavailable

23

RUBBER, CHANGE PEDAL This part replaces 24781-205-000.

95011-40000

$1.49

23

RUBBER, CHANGE PEDAL This part replaces 24781-268-000.

95011-40000

$1.49

23

RUBBER, SHIFT PEDAL

95011-40000

$1.49

24

PIN, RETURN SPRING

90015-286-000

Unavailable

25

NUT, LOCK (8MM) (NOT AVAILABLE)

90349-205-000

Unavailable

26

NUT, LOCK (8MM) (NOT AVAILABLE)

90349-268-000

Unavailable

27

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)

90417-001-000

Unavailable

27

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE) This part replaces 90417-028-000.

90417-001-000

Unavailable

27

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

28

WASHER, LOCK (12MM) (NOT AVAILABLE)

90434-286-000

Unavailable

29

WASHER, PLAIN (8MM) This part replaces 90541-035-000.

94101-08000

$1.49

29

WASHER, PLAIN (8MM)

94101-08000

$1.49

30

OIL SEAL (12X25X4.5) This part replaces 91201-283-000.

91202-426-003

$5.57

30

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

30

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

30

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

31

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

32

O-RING (11.5X2)

91304-216-000

$2.11

33

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

33

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

34

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

34

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

35

NUT, HEX. (8MM)

94001-08000-0S

$1.49

36

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

36

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

36

PIN, COTTER (2.0X22)

94201-20220

$1.49

36

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

36

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

36

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

36

PIN, COTTER (2.0X35)

94201-20350

$1.49

36

PIN, COTTER (2.0X22)

94201-29220

$1.49

37

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
